Using the Pin Matrix Cards 6
E6198B Switch/Load Unit User Manual 6-23
J1 Connector Pinouts
Figure 6-15 shows the pinouts for connector J1 which provides
instrument and Abus access. J1 is available only on the Agilent
E8782A 64-Pin Matrix Card.

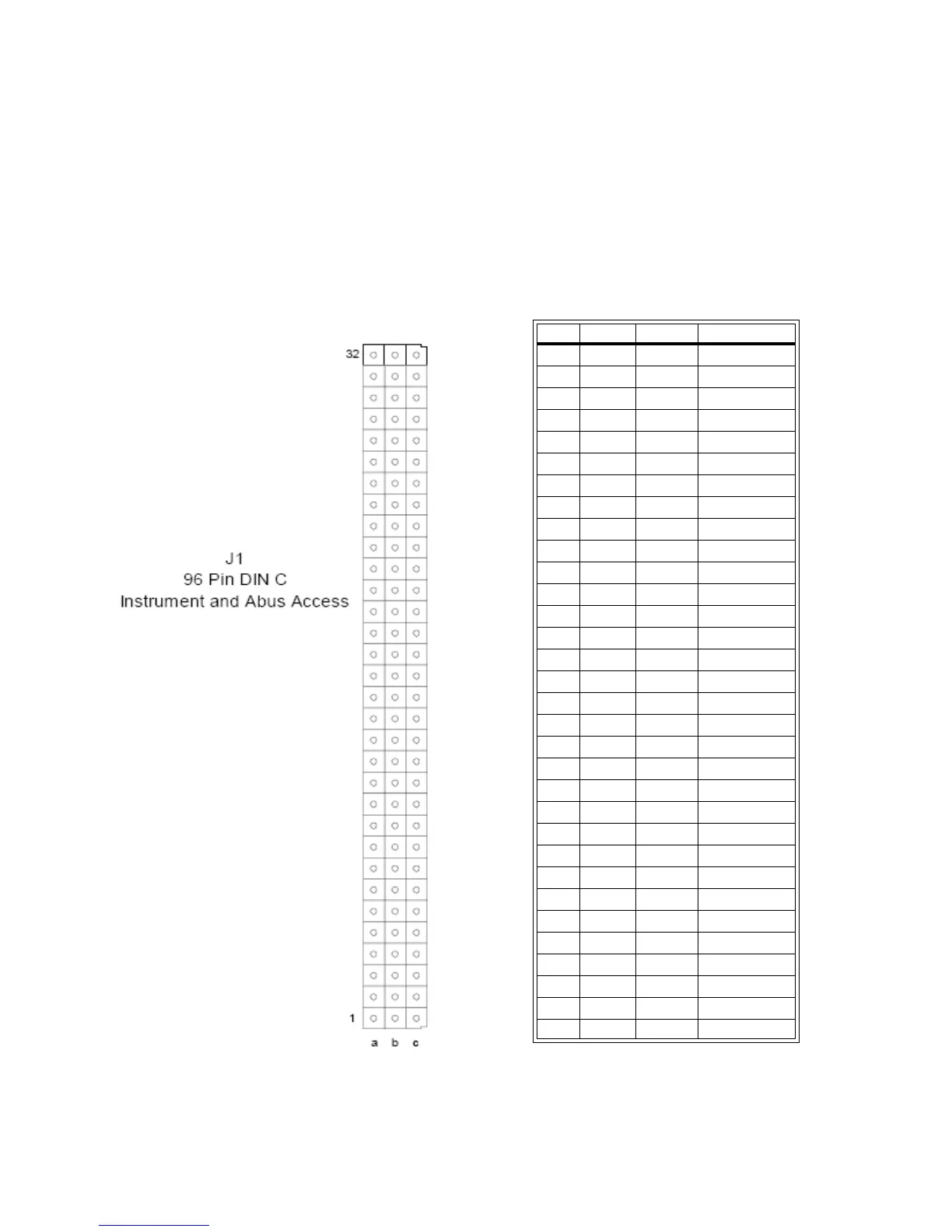

Figure 6-15 J1 Pinouts--Instrument and Abus Access
Row a b c
32 Gnd INST1 INST2
31 Gnd INST2 INST3
30 Gnd INST3 INST4
29 Gnd INST4 INST5
28 Gnd INST5 INST6
27 Gnd INST6 INST7
26 Gnd INST7 INST8
25 Gnd INST8 INST9
24 Gnd INST9 INST10
23 Gnd INST10 INST11
22 Gnd INST11 INST12
21 Gnd INST12 INST13
20 Gnd INST13 INST14
19 Gnd INST14 INST15
18 Gnd INST15 INST16
17 Gnd INST16 INST17
16 Gnd INST17 INST18
15 Gnd INST18 INST19
14 Gnd INST19 INST20
13 Gnd INST20 INST21
12 Gnd INST21 INST22
11 Gnd INST22 INST23
10 Gnd INST23 INST24
9 Gnd INST24 NC
8 Gnd Abus1 UUT Common
7 Gnd Abus2 UUT Common
6 Gnd Abus3 UUT Common
5 Gnd Abus4 UUT Common
4 Gnd Abus1 UUT Common
3 Gnd Abus2 UUT Common
2 Gnd Abus3 UUT Common
1 Gnd Abus4 UUT Common
