3-8 E6198B Switch/Load Unit User Manual

3 Switch/Load Unit and Plug-In Cards

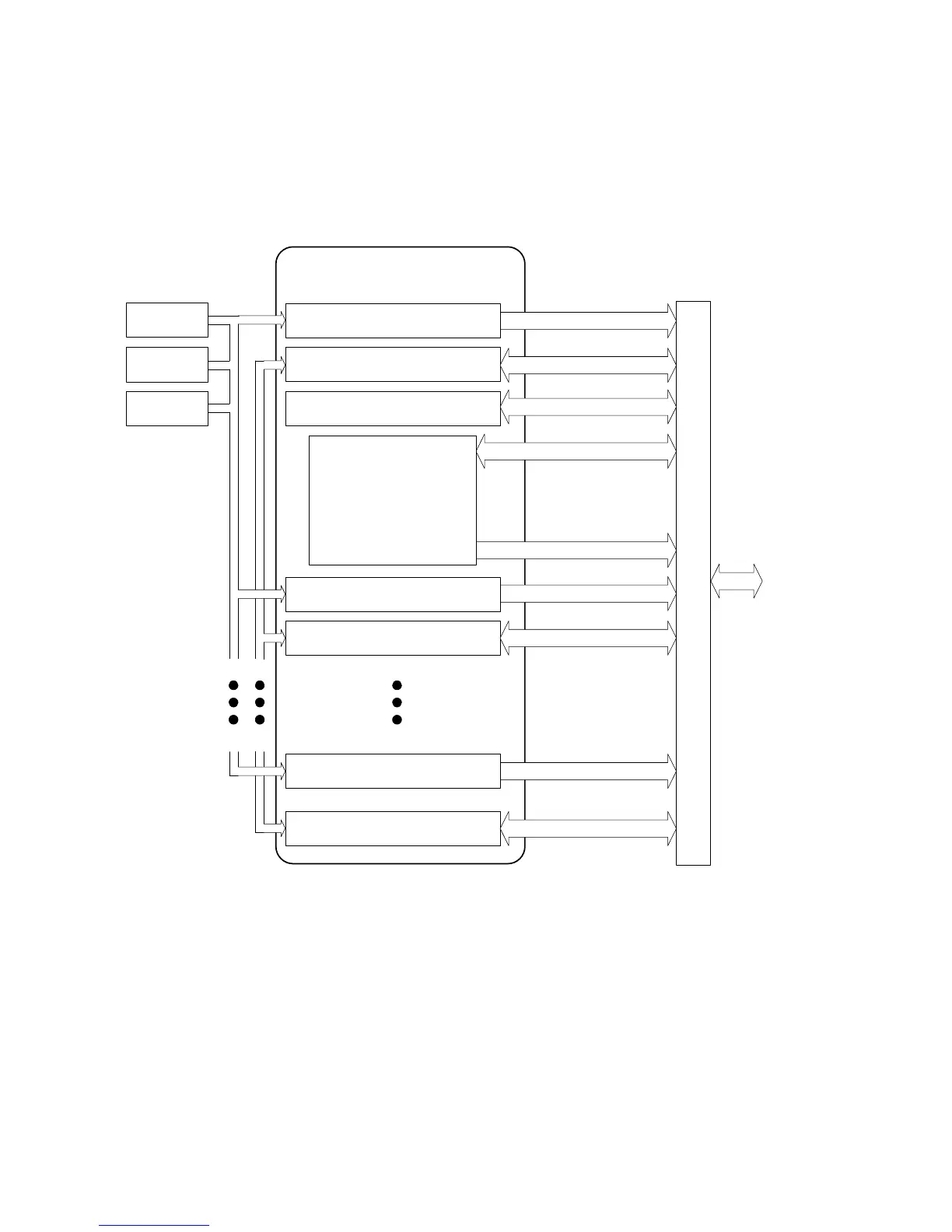

Figure 3-5 Switch/Load Unit Block Diagram

Load Card #2

Pin Matrix Card #2

Load Card #1

Pin Matrix Card #1

Custom Card

Agilent E6198B Switch/Load Unit

Load Card #n

Pin Matrix Card #n

Digital In, Power Bus Sense ,

Isense

Switch/Load Unit

Circuitry

Digital Out, DAC, +12V, -12V

Power Bus

Power

Supply #1

Power

Supply #2

Power

Supply #3

Analo g B us

Test System In terface or Mass In terconnect

Note : All plug -in car ds are optional --the mix and num ber s of car ds in your system wi ll be differ ent than shown here .
