Agilent Technologies E6198B User Manual

Using the Pin Matrix Cards 6
E6198B Switch/Load Unit User Manual 6-27
P2 Connector Pinouts
Figure 6-18 shows the pinouts for connector P2 which provides
Row, Aux and UUT Common access.

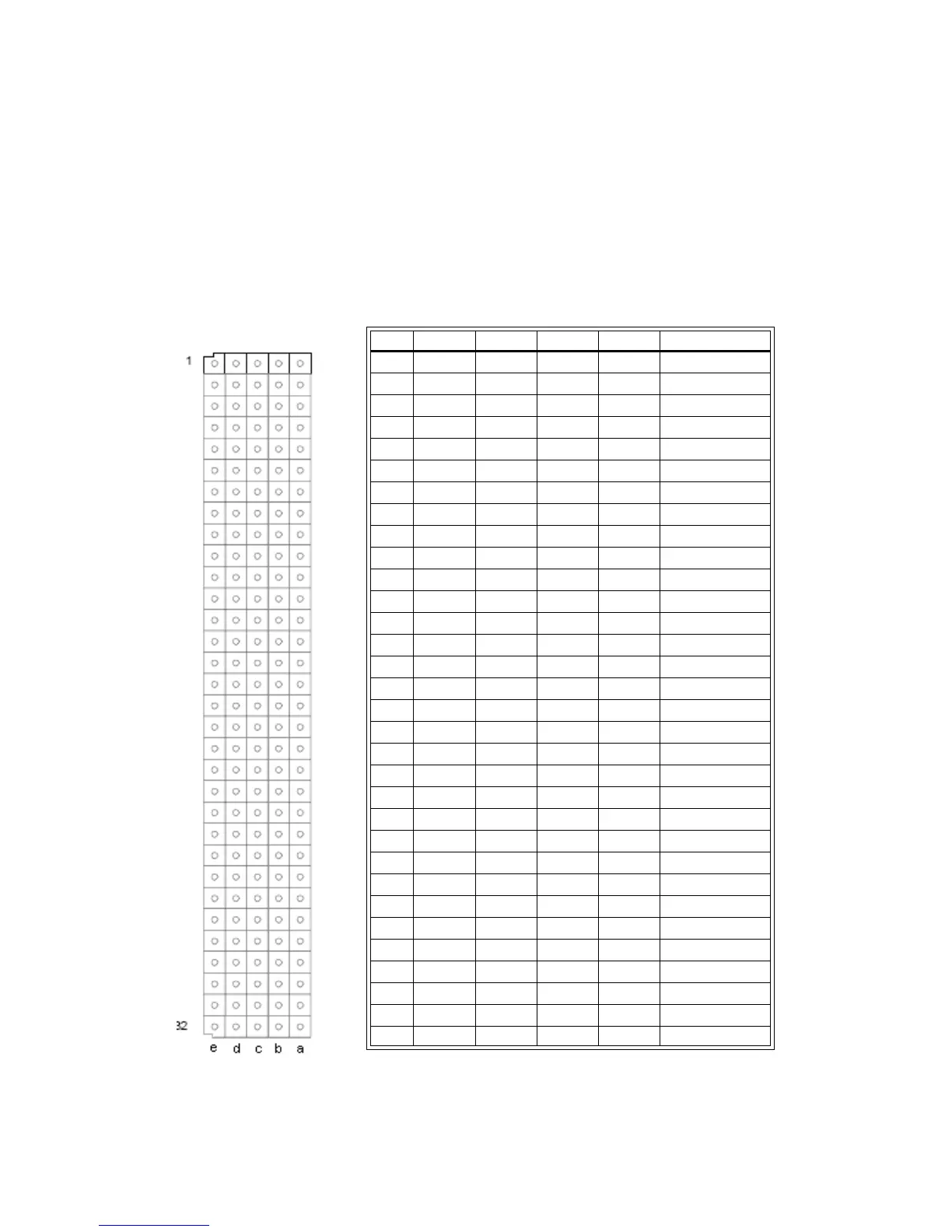

Figure 6-18 P2 Pinouts--Row, Aux, and UUT Common Main Access for E8782A
Row e d c b a
1 Row 1 Row 33 Aux1 Aux33 UUT Common
2 Row 2 Row 34 Aux2 Aux34 UUT Common
3 Row 3 Row 35 Aux3 Aux35 UUT Common
4 Row 4 Row 36 Aux4 Aux36 UUT Common
5 Row 5 Row 37 Aux5 Aux37 UUT Common
6 Row 6 Row 38 Aux6 Aux38 UUT Common
7 Row 7 Row 39 Aux7 Aux39 UUT Common
8 Row 8 Row 40 Aux8 Aux40 UUT Common
9 Row 9 NC Aux9 NC UUT Common
10 Row 10 NC Aux10 NC UUT Common
11 Row 11 NC Aux11 NC UUT Common
12 Row 12 NC Aux12 NC UUT Common
13 Row 13 NC Aux13 NC UUT Common
14 Row 14 NC Aux14 NC UUT Common
15 Row 15 NC Aux15 NC UUT Common
16 Row 16 NC Aux16 NC UUT Common
17 Row 17 NC Aux17 NC UUT Common
18 Row 18 NC Aux18 NC UUT Common
19 Row 19 NC Aux19 NC UUT Common
20 Row 20 NC Aux20 NC UUT Common
21 Row 21 NC Aux21 NC UUT Common
22 Row 22 NC Aux22 NC UUT Common
23 Row 23 NC Aux23 NC UUT Common
24 Row 24 NC Aux24 NC UUT Common
25 Row 25 NC Aux25 NC UUT Common
26 Row 26 NC Aux26 NC UUT Common
27 Row 27 NC Aux27 NC UUT Common
28 Row 28 NC Aux28 NC UUT Common
29 Row 29 NC Aux29 NC UUT Common
30 Row 30 NC Aux30 NC UUT Common
31 Row 31 NC Aux31 NC UUT Common
32 Row 32 NC Aux32 NC UUT Common
