B-30 E6198B Switch/Load Unit User Manual
B Register Definitions
Agilent N9377A 16-Channel Dual-Load Load Card
The Agilent N9377A dual-load load card lets you use the same
channel to test of shorts to ground and Vbatt or tests that
require two types of load for different parts of the test. The card
provides current sense, pull-up/down, and flyback protection.
The card also provides Card Type, Card Configuration, and
Status readback of the built in relay timers. See “Using the
Agilent E6178B 8-Channel Load Card" for more information.
Unless otherwise noted, writing a 1 closes (energizes) a relay,
and writing a 0 opens (de-energizes) the relay. The reset and
power-on state for all relays is open.
The block diagram in Figure shows the location of the various
registers.
It is possible to close more than one channel at a time. Since the
trace from P2 to J41 can only carry 30 Amps, the total current of all
the channel must be less than or equal to 30 Amps.

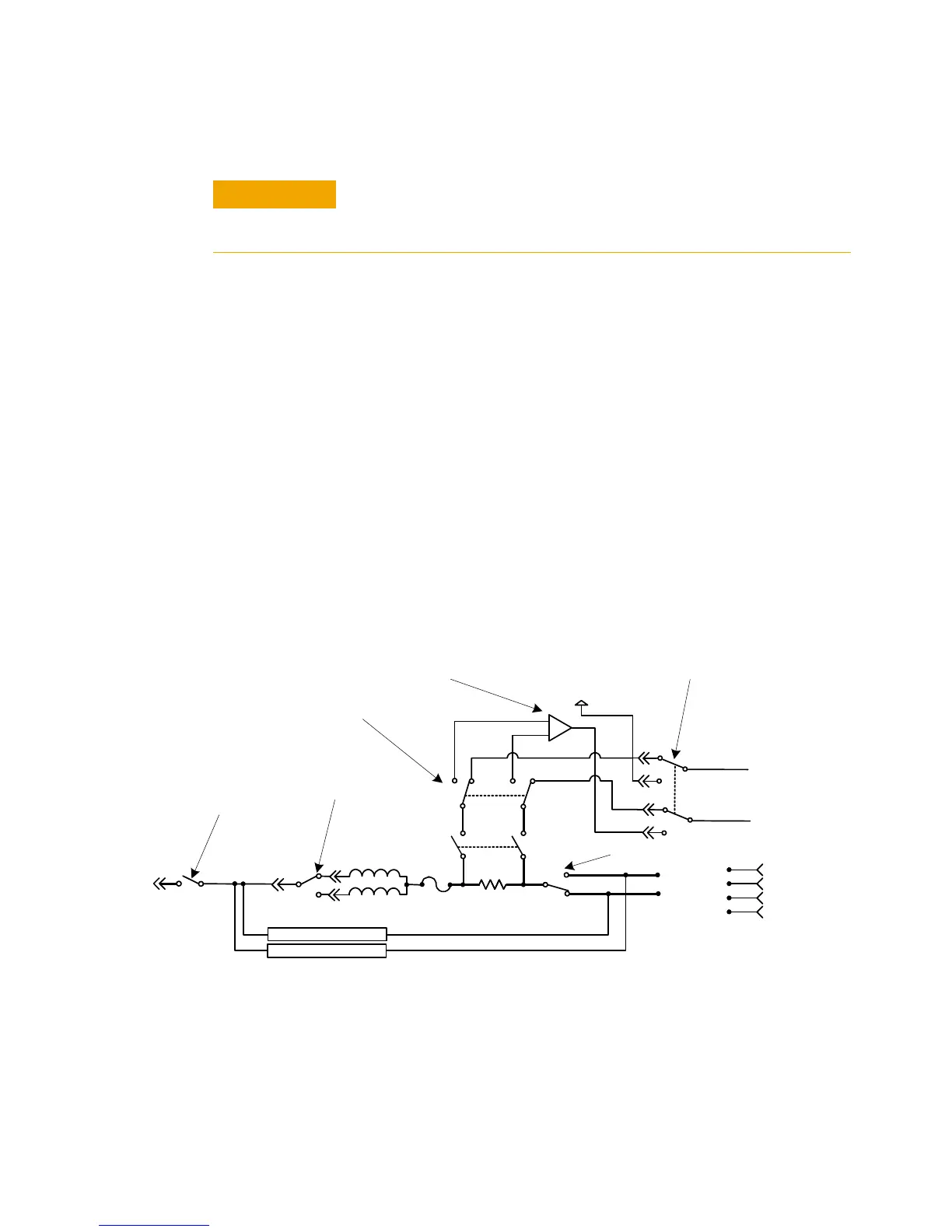

Figure B-10 Relay controlled by registers Base+03h-Base+09h
ISense
-
ISense
+
Power Select (0+6h, 0+7h)
-
+
Load
disconnect
(0+4h, 0+5h)
Load select
(0+8h, 0+9h)
NOx
NCx
Flyback Protection
Flyback Protection
ISense-
ISense+
Loadx
Load x.1
Load x.2
Chanx
50m Ohm
0.1%
AD629-based diff. amp
(one per board, shared)
User-
installed
jumpers
To
power
bus
PB1
PB2
PB3
PB4
Current Sense Select,
DAS (0+3h, bit 7)
Current Sense Select
(0+3h, bits 0-4)
To Next Page
