Using the Pin Matrix Cards 6
E6198B Switch/Load Unit User Manual 6-13
Figure 6-8 shows the pinouts for connector J2 which provides
rear Aux line access.

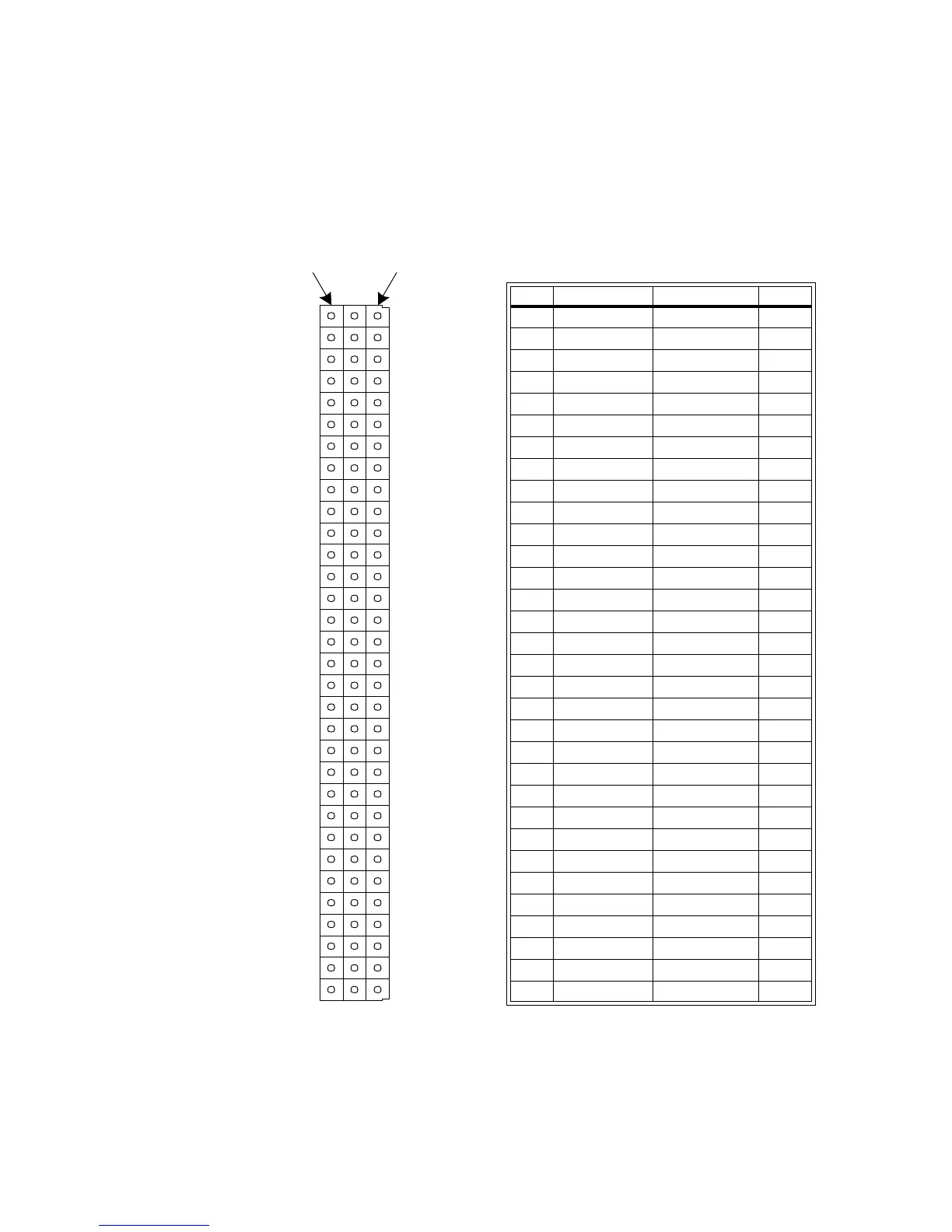

Figure 6-8 J2 Pinouts--Rear Aux Access
32
1
UUT Common Aux
a b c
96 Pin DIN C
Rear Aux Access
J2
Row a b c
32 UUT Common System Ground Aux32
31 UUT Common System Ground Aux31
30 UUT Common System Ground Aux30
29 UUT Common System Ground Aux29
28 UUT Common System Ground Aux28
27 UUT Common System Ground Aux27
26 UUT Common System Ground Aux26
25 UUT Common System Ground Aux25
24 UUT Common System Ground Aux24
23 UUT Common System Ground Aux23
22 UUT Common System Ground Aux22
21 UUT Common System Ground Aux21
20 UUT Common System Ground Aux20
19 UUT Common System Ground Aux19
18 UUT Common System Ground Aux18
17 UUT Common System Ground Aux17
16 UUT Common System Ground Aux16
15 UUT Common System Ground Aux15
14 UUT Common System Ground Aux14
13 UUT Common System Ground Aux13
12 UUT Common System Ground Aux12
11 UUT Common System Ground Aux11
10 UUT Common System Ground Aux10
9 UUT Common System Ground Aux9
8 UUT Common System Ground Aux8
7 UUT Common System Ground Aux7
6 UUT Common System Ground Aux6
5 UUT Common System Ground Aux5
4 UUT Common System Ground Aux4
3 UUT Common System Ground Aux3
2 UUT Common System Ground Aux2
1 UUT Common System Ground Aux1
