Switch/Load Unit and Plug-In Cards 3
E6198B Switch/Load Unit User Manual 3-21
Differentiating E6198B Standalone Option and System Integrated Option
The key differences between standalone and system integrated
option can be found at the SLU rear cover.
On a standalone unit, the backplane connectors are extended to
the breakout board attached to the SLU rear cover. At SLU rear,
you will find toggle switches for SLU configuration, power and
sense buses connectors protected by a cable enclosure. See
Figure 3-11.
On a system integrated unit, you will find cut outs on SLU rear
cover to allow cable routing from SLU backplane. Jumpers are
used for SLU configuration.

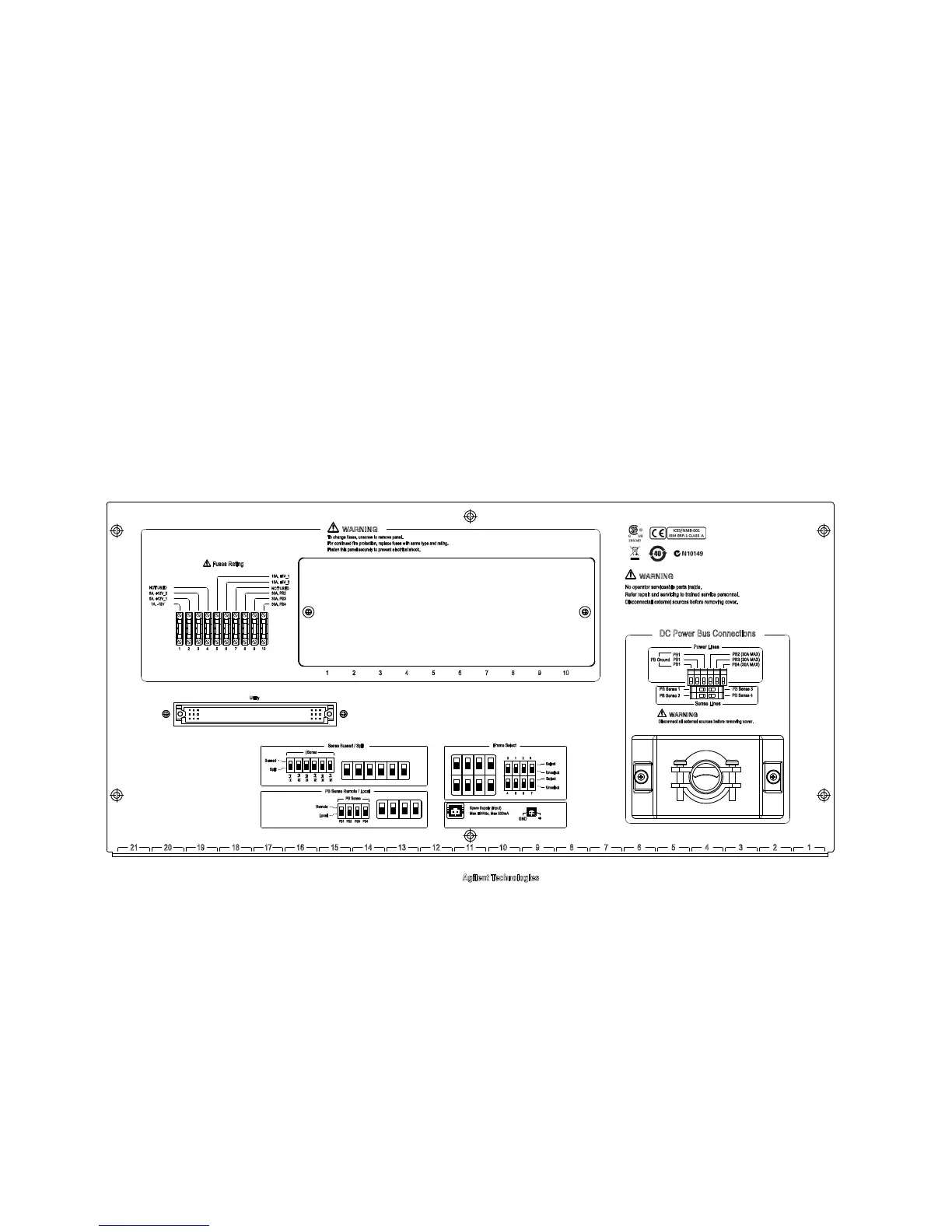

Figure 3-11 Switch/Load Unit Rear View (Standalone Option).
