Agilent Technologies E6198B User Manual

6-14 E6198B Switch/Load Unit User Manual
6 Using the Pin Matrix Cards
P2 Connector Pinouts
Figure 6-9 shows the pinouts for connector P2 which provides
Row, Aux and UUT Common access.

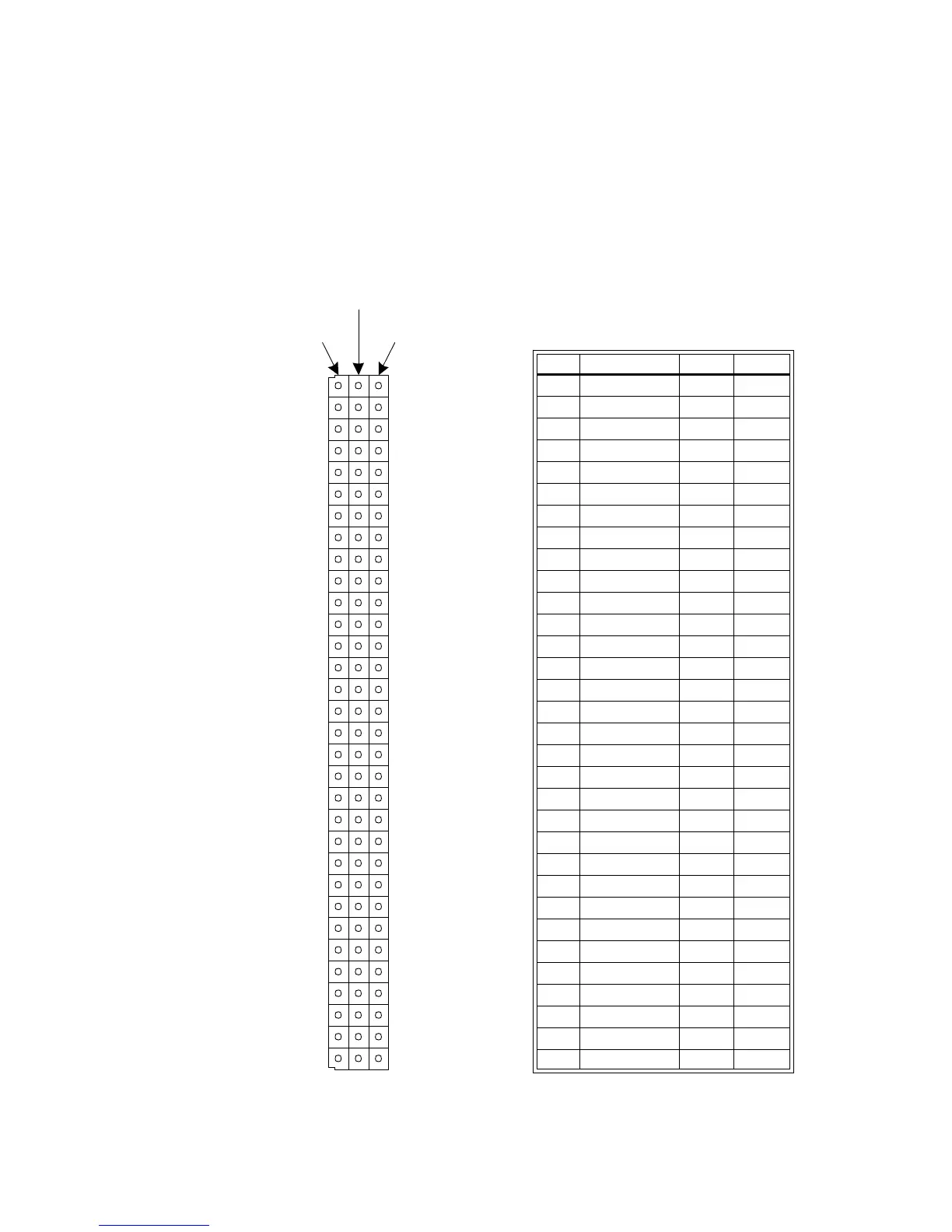

Figure 6-9 P2 Pinouts--Row, Aux, and UUT Common Main Access
1
32
UUT Common
Aux
c b a
96 Pin DIN C
Row, Aux & UUT Common
Main Access
P2
Row
Row c b a
1 UUT Common Aux1 Row1
2 UUT Common Aux2 Row2
3 UUT Common Aux3 Row3
4 UUT Common Aux4 Row4
5 UUT Common Aux5 Row5
6 UUT Common Aux6 Row6
7 UUT Common Aux7 Row7
8 UUT Common Aux8 Row8
9 UUT Common Aux9 Row9
10 UUT Common Aux10 Row10
11 UUT Common Aux11 Row11
12 UUT Common Aux12 Row12
13 UUT Common Aux13 Row13
14 UUT Common Aux14 Row14
15 UUT Common Aux15 Row15
16 UUT Common Aux16 Row16
17 UUT Common Aux17 Row17
18 UUT Common Aux18 Row18
19 UUT Common Aux19 Row19
20 UUT Common Aux20 Row20
21 UUT Common Aux21 Row21
22 UUT Common Aux22 Row22
23 UUT Common Aux23 Row23
24 UUT Common Aux24 Row24
25 UUT Common Aux25 Row25
26 UUT Common Aux26 Row26
27 UUT Common Aux27 Row27
28 UUT Common Aux28 Row28
29 UUT Common Aux29 Row29
30 UUT Common Aux30 Row30
31 UUT Common Aux31 Row31
32 UUT Common Aux32 Row32
