Agilent Technologies E6198B User Manual

6-10 E6198B Switch/Load Unit User Manual
6 Using the Pin Matrix Cards

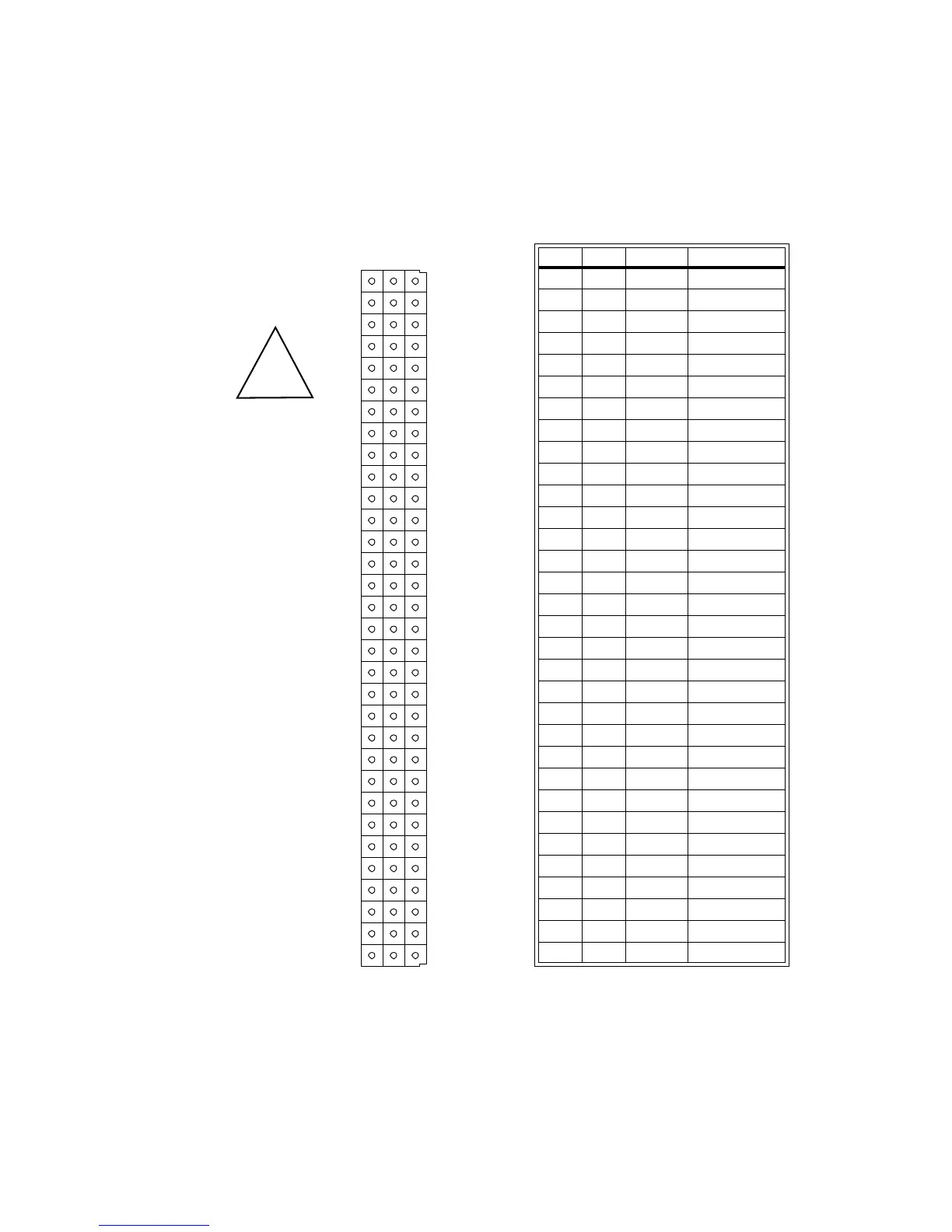

Figure 6-5 J1 Pinouts--Instrument and Abus Access
32
1
a b c
96 Pin DIN C
Instrument and Abus Access
J1
Row a b c
32 Gnd INST1 INST2
31 Gnd INST2 INST3
30 Gnd INST3 INST4
29 Gnd INST4 INST5
28 Gnd INST5 INST6
27 Gnd INST6 INST7
26 Gnd INST7 INST8
25 Gnd INST8 INST9
24 Gnd INST9 INST10
23 Gnd INST10 INST11
22 Gnd INST11 INST12
21 Gnd INST12 INST13
20 Gnd INST13 INST14
19 Gnd INST14 INST15
18 Gnd INST15 INST16
17 Gnd INST16 N/C
16 N/C N/C N/C
15 N/C N/C N/C
14 N/C N/C N/C
13 Gnd Abus1 UUT Common
12 Gnd Abus2 UUT Common
11 Gnd Abus3 UUT Common
10 Gnd Abus4 UUT Common
9GndN/C N/C
8GndN/C N/C
7GndN/C N/C
6GndN/C N/C
5GndN/C N/C
4 Gnd Abus1 UUT Common
3 Gnd Abus2 UUT Common
2 Gnd Abus3 UUT Common
1 Gnd Abus4 UUT Common
!
