5-12 E6198B Switch/Load Unit User Manual

5 Using Load Cards and Loads

5 Install two bypass capacitors, C41 and C42, both 0.01 μF.

6 Install the appropriate primary-coil range jumpers. See

Figure 5-7.

NOTE

Use a wire gauge appropriate for the current through the load.

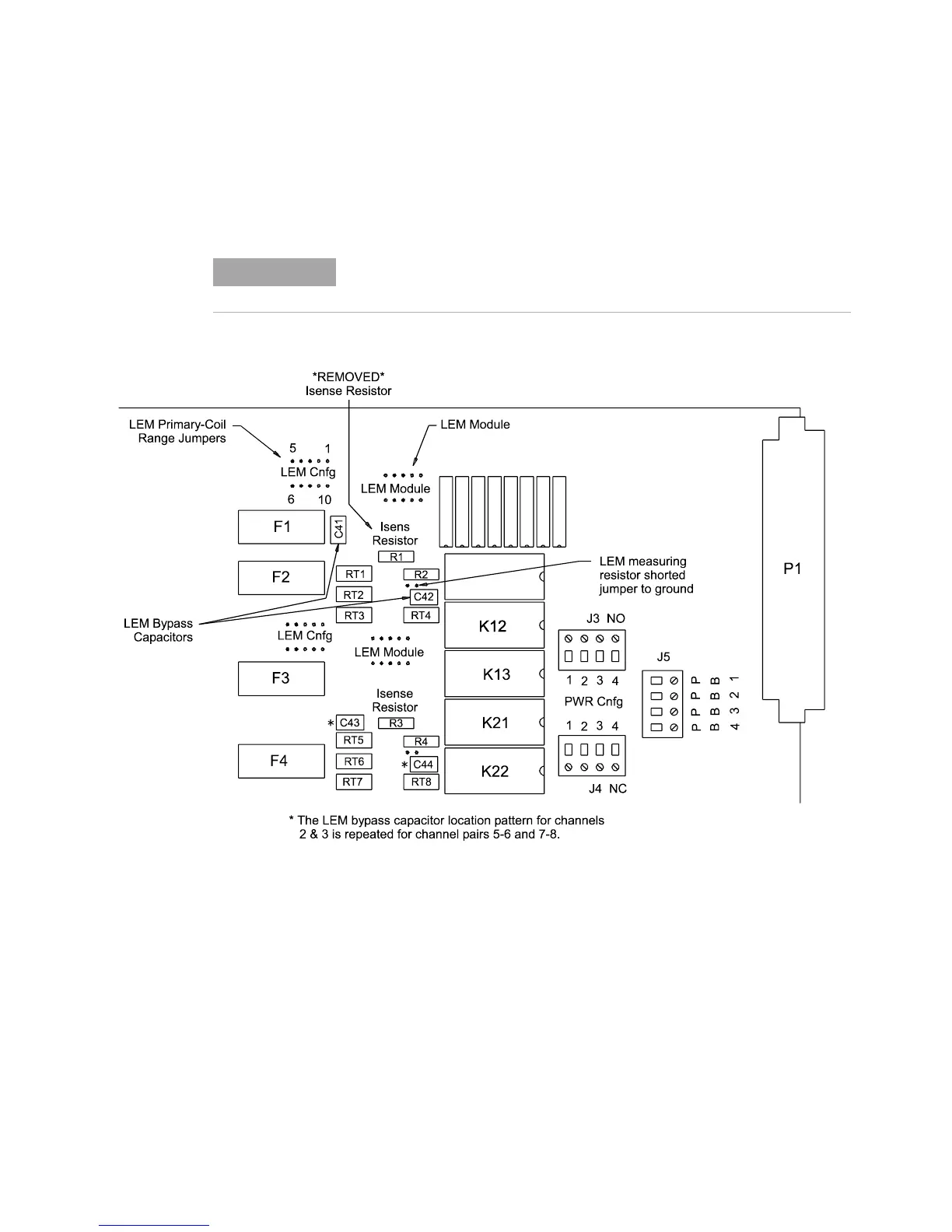

Figure 5-6 Component Location for Installing LEM Current Transducer Module
