Agilent Technologies E6198B User Manual

Configuring the Switch/Load Unit 4
E6198B Switch/Load Unit User Manual 4-9
For Standalone, toggle PB Sense Remote/Local swithes to select
either Remote or Local mode. See Figure 4-9.

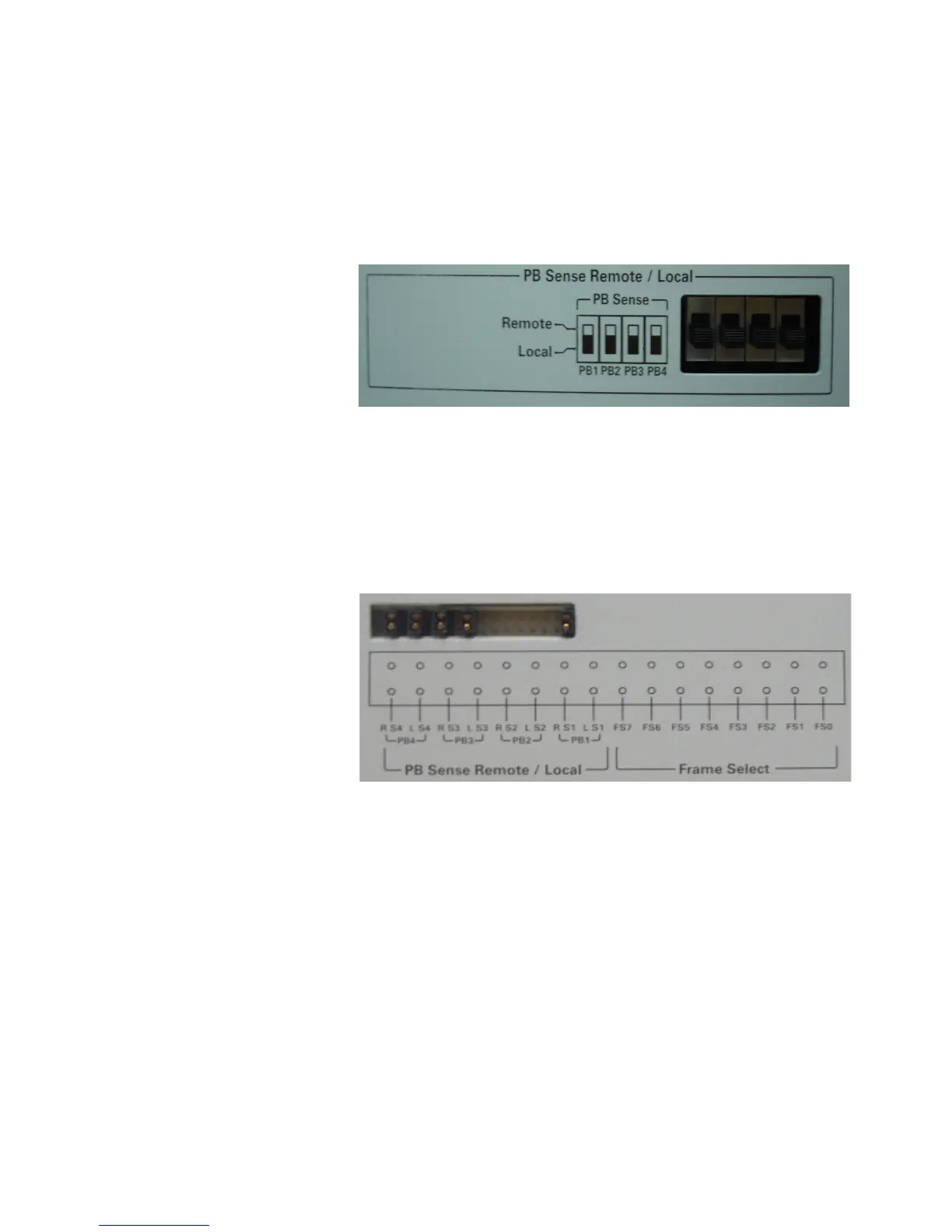

Figure 4-9 PB Sense Remote/Local Interface (Standalone SLU)
For Integrated, use Jumper to select the mode on PB Sense
Remote/Local. See Figure 4-10.
Figure 4-10 PB Sense Remote/Local and Frame Select Interface
(Integrated SLU)
