Using the Pin Matrix Cards 6

E6198B Switch/Load Unit User Manual 6-29

Installing in the Switch/Load Unit

The Agilent E8782A/E8783A 64-Pin Matrix Card can be

installed in any available Switch/Load Unit slot. The Analog Bus

connection cables require that all 64-Pin Matrix Cards be in

adjacent slots (so the cables will be able to reach each slot).

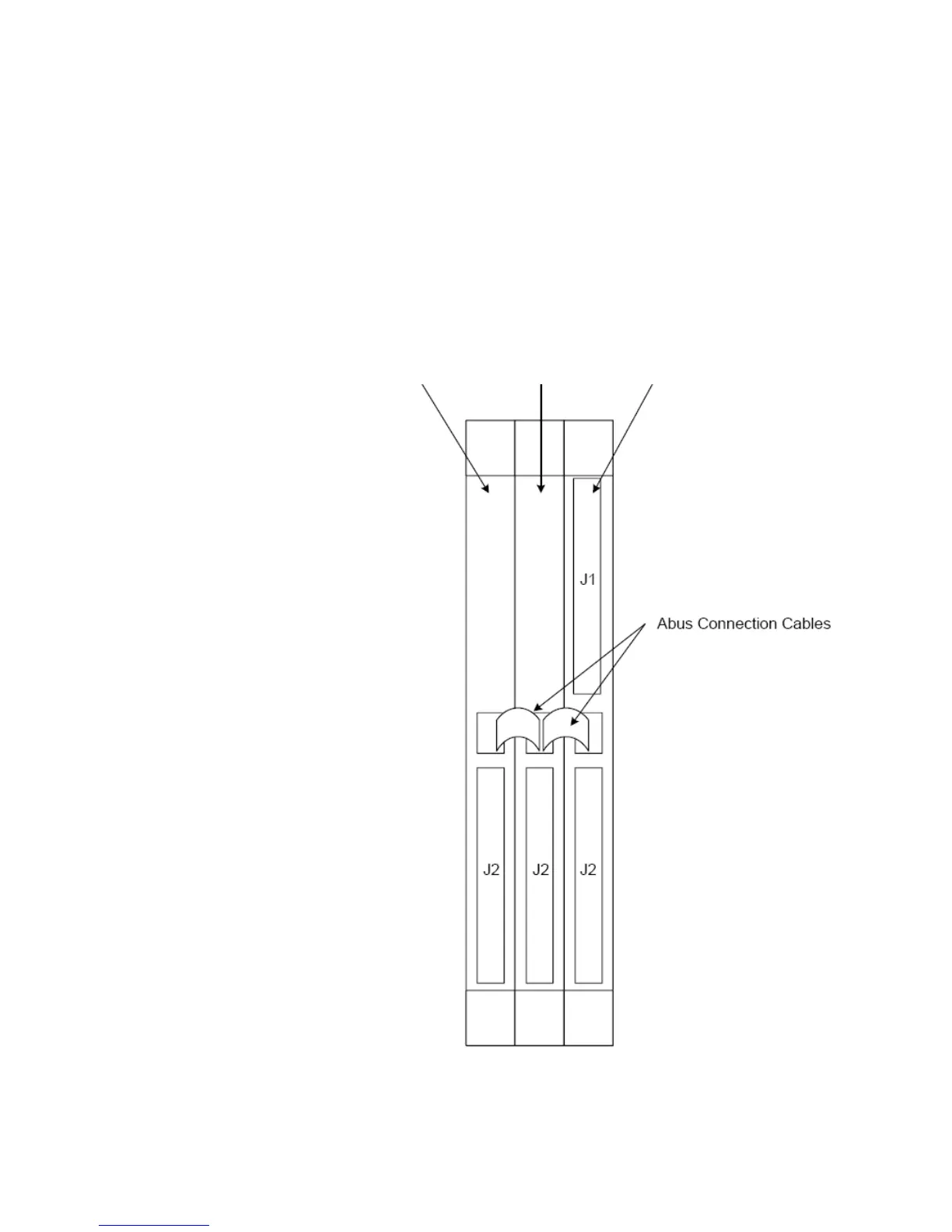

Figure 6-20 shows a typical installation.

Figure 6-20 Installed 32-Pin Matrix Cards

Agilent

E8783A #2

Agilent

E8783A #1

Agilent

E8782A
