Using Load Cards and Loads 5
E6198B Switch/Load Unit User Manual 5-45
UUT Connections
When configured as part of a standard Agilent system, P2 of the
load card is typically connected via cables to a mass
interconnect panel. User connections to the UUT are then made
from the mass interconnect panel. Refer to the appropriate
mass interconnect wiring guide for connection details.

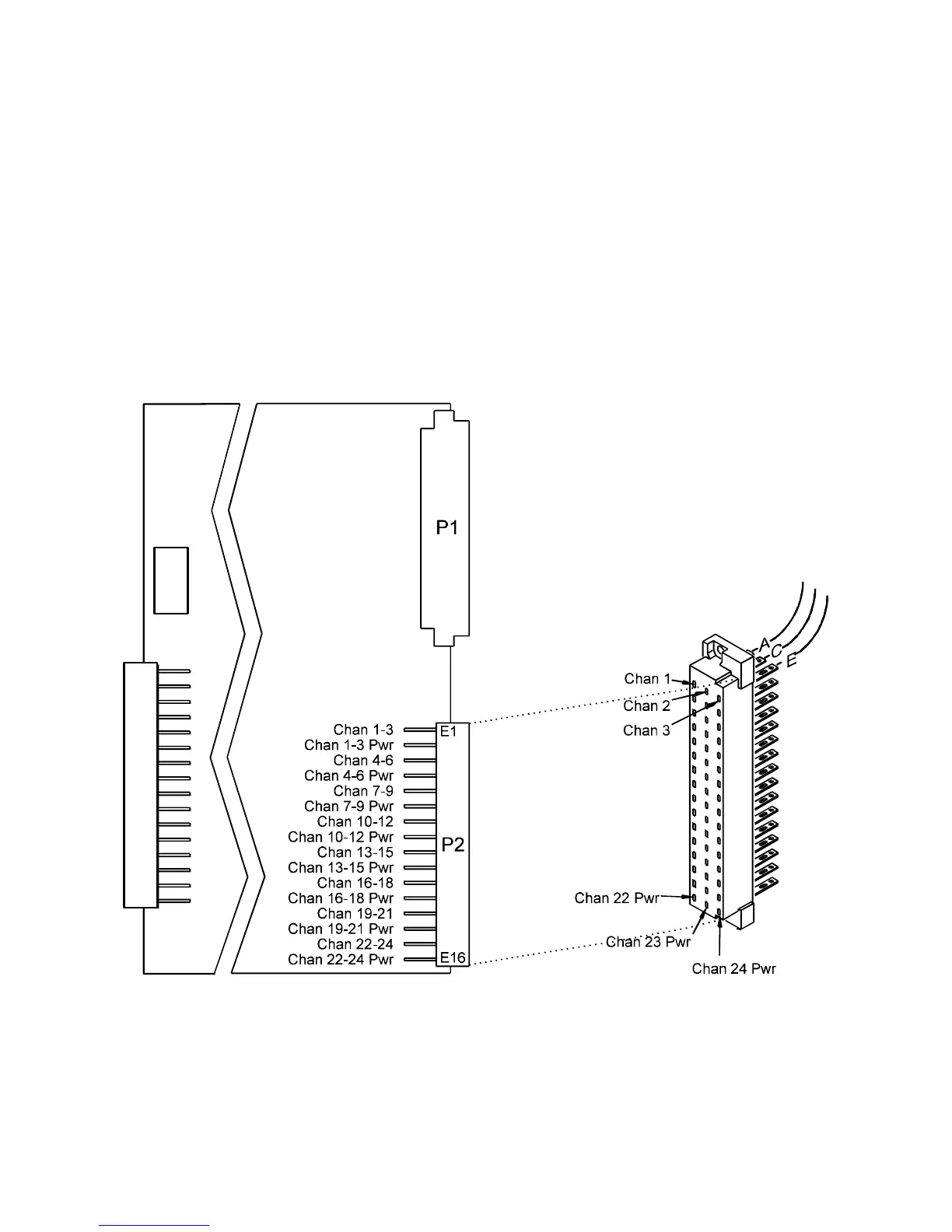

You can also make connections directly to P2. Figure 5-32 is a
P2 connector pinout showing the details.
Figure 5-32 Agilent E6177A 24-Channel Medium-Current Load Card UUT Connections
