Agilent Technologies E6198B User Manual

6-26 E6198B Switch/Load Unit User Manual
6 Using the Pin Matrix Cards

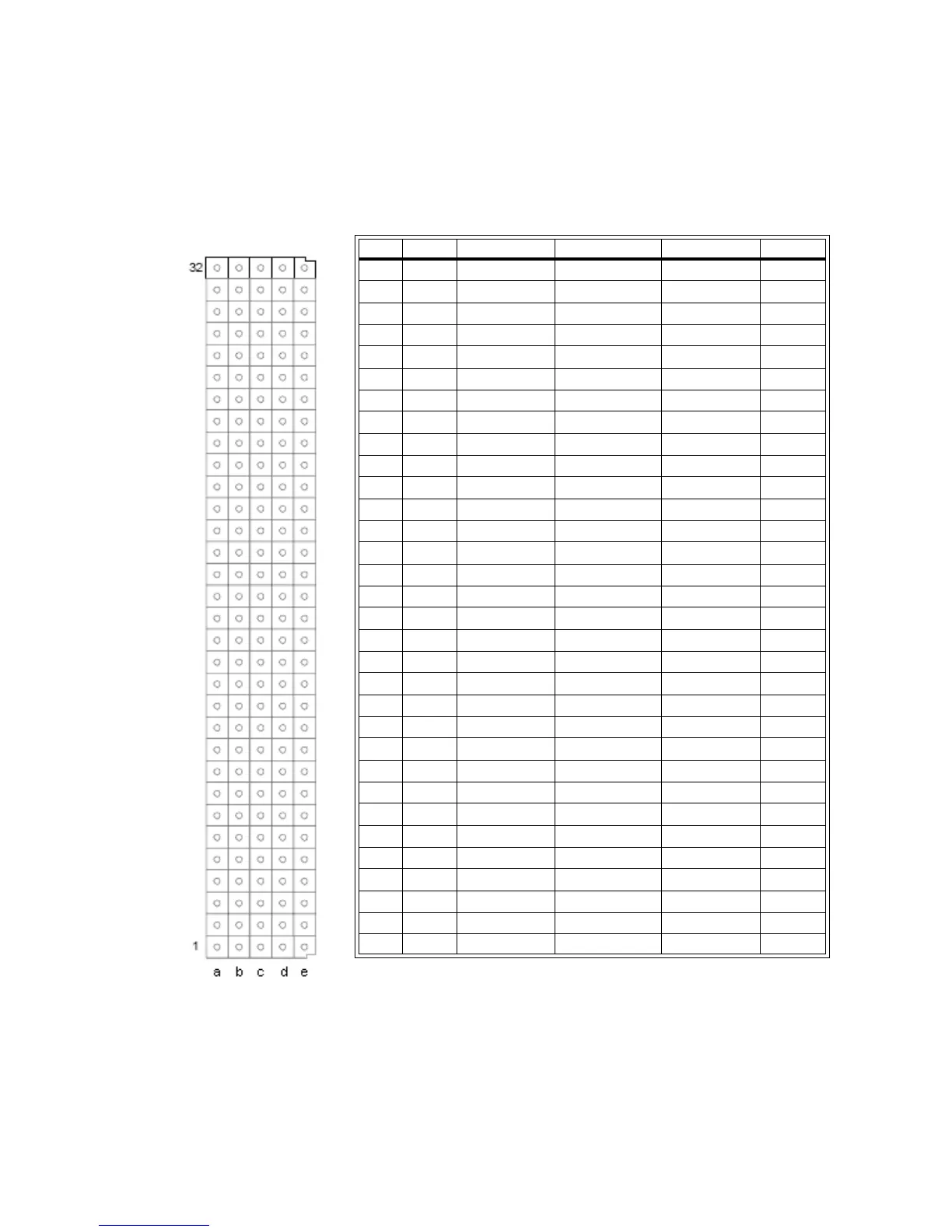

Figure 6-17 J2 Pinouts--Rear Aux Access for E8783A
Row a b c d e
32 Aux1 UUT Common System Ground UUT Common AUX 33
31 Aux2 UUT Common System Ground UUT Common AUX 34
30 Aux3 UUT Common System Ground UUT Common AUX 35
29 Aux4 UUT Common System Ground UUT Common AUX 36
28 Aux5 UUT Common System Ground UUT Common AUX 37
27 Aux6 UUT Common System Ground UUT Common AUX 38
26 Aux7 UUT Common System Ground UUT Common AUX 39
25 Aux8 UUT Common System Ground UUT Common AUX 40
24 Aux9 UUT Common System Ground UUT Common AUX 41
23 Aux10 UUT Common System Ground UUT Common AUX 42
22 Aux11 UUT Common System Ground UUT Common AUX 43
21 Aux12 UUT Common System Ground UUT Common AUX 44
20 Aux13 UUT Common System Ground UUT Common AUX 45
19 Aux14 UUT Common System Ground UUT Common AUX 46
18 Aux15 UUT Common System Ground UUT Common AUX 47
17 Aux16 UUT Common System Ground UUT Common AUX 48
16 Aux17 UUT Common System Ground UUT Common AUX 49
15 Aux18 UUT Common System Ground UUT Common AUX 50
14 Aux19 UUT Common System Ground UUT Common AUX 51
13 Aux20 UUT Common System Ground UUT Common AUX 52
12 Aux21 UUT Common System Ground UUT Common AUX 53
11 Aux22 UUT Common System Ground UUT Common AUX 54
10 Aux23 UUT Common System Ground UUT Common AUX 55
9 Aux24 UUT Common System Ground UUT Common AUX 56
8 Aux25 UUT Common System Ground UUT Common AUX 57
7 Aux26 UUT Common System Ground UUT Common AUX 58
6 Aux27 UUT Common System Ground UUT Common AUX 59
5 Aux28 UUT Common System Ground UUT Common AUX 60
4 Aux29 UUT Common System Ground UUT Common AUX 61
3 Aux30 UUT Common System Ground UUT Common AUX 62
2 Aux31 UUT Common System Ground UUT Common AUX 63
1 Aux32 UUT Common System Ground UUT Common AUX 64
J2 160 Pin DIN Rear
Aux Access
