Using Load Cards and Loads 5
E6198B Switch/Load Unit User Manual 5-81
Installing and Removing Mezzanine Cards
The mezzanine cards are held to the load card by the friction of
the connector at the top and bottom. When installing a
mezzanine card, apply even pressure to both top and bottom
connectors to ensure good contact.
When removing a load card, you may need an appropriate
prying tool to loosen the card from the connectors, especially
when multiple cards are installed. Use the indentations on the
sides of the card to loosen the card with the prying tool, then
grasp the card and gently rock it back and forth until it is free of
the connectors.

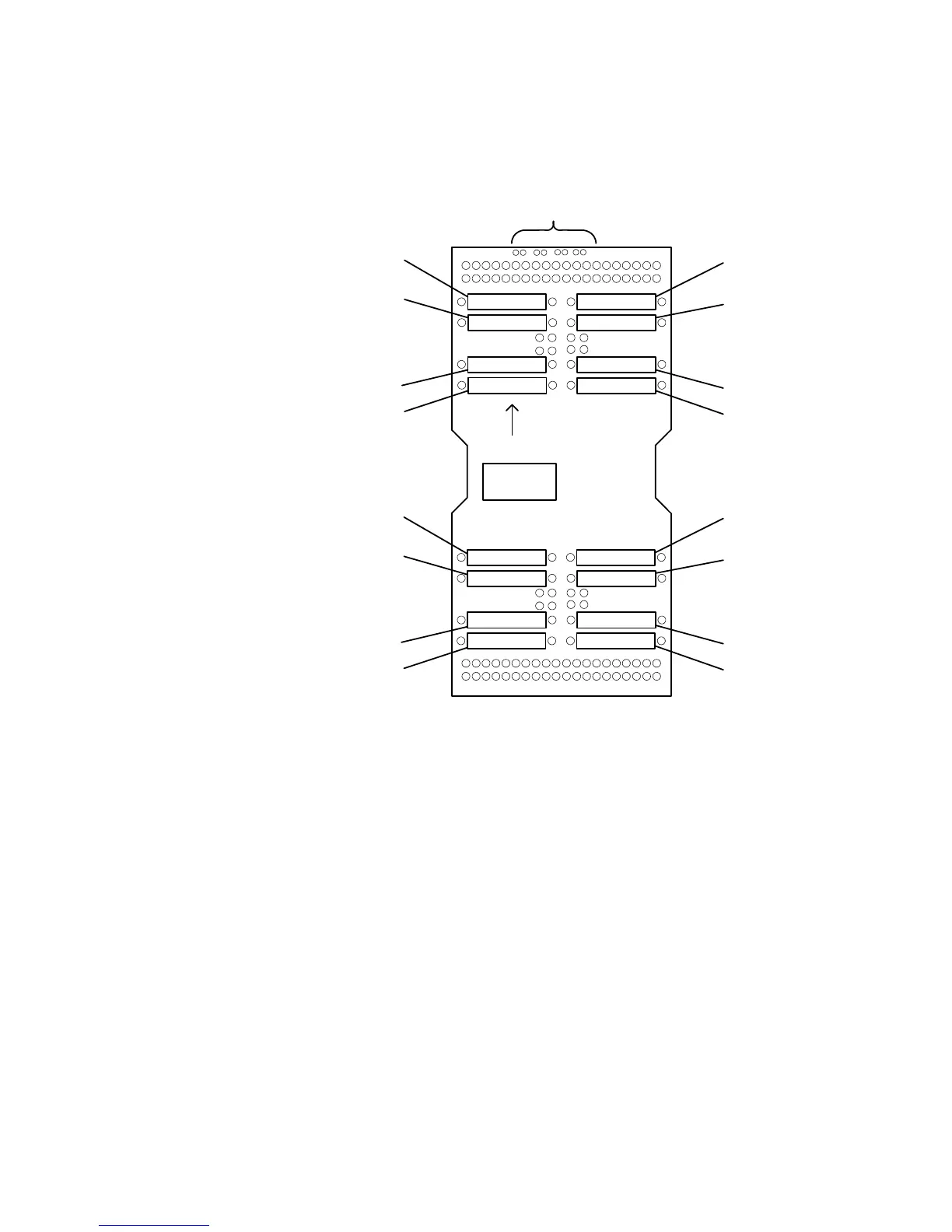

Figure 5-56 Agilent N9378A Load Mounting Area and P1/J1 Connectors
1
2
3
4
MEZZ ID
J12
J13J11
J14
J15
J16
J17
J18
TOP
AGILENT
Loadx.1
Loadx.2
Loadx.3
Loadx.4
Load(x+1).1
Load(x+6).4
Load(x+6).3
Load(x+6).2
Load(x+6).1
Mezzanine card IDs
x = channel numbers 1, 3, 5, 13, 15, or 17
Load(x+1).4
Load(x+1).3
Load(x+1).2
Load(x+7).4
Load(x+7).3
Load(x+7).2
Load(x+7).1
