Agilent Technologies E6198B User Manual

5-56 E6198B Switch/Load Unit User Manual
5 Using Load Cards and Loads
Selecting a Power Supply Configuration
As shown in Figure 5-39, power supply connections for the
loads are through P100 and P200 to PWR1 and PWR2 (J41)
respectively. You must wire the power supply connectors to the
individual channel connectors CH1 through CH8 (J101, J103,
J105, and J107). Use at least a 14 AWG PTFE insulated or 12
AWG vinyl insulated wire to carry 30 Amperes.
<Blue>Figure shows one possible power supply configuration.
In this configuration, Channel 1 is configured for a single load
connected to V+. Load 8 would be a short to provide a path
return. Channels 2 and 3 are connected as a bridge load; a load
that is “floating” with respect to the power system.
Other configurations are possible. For example, the negative
terminals of two external power supplies could be connected
together at the UUT and the positive terminals could be
connected to P100 and P200 (respectively) and distributed to
the individual channels. This would provide two simultaneous
power supply connections to the UUT or multiple UUTs.

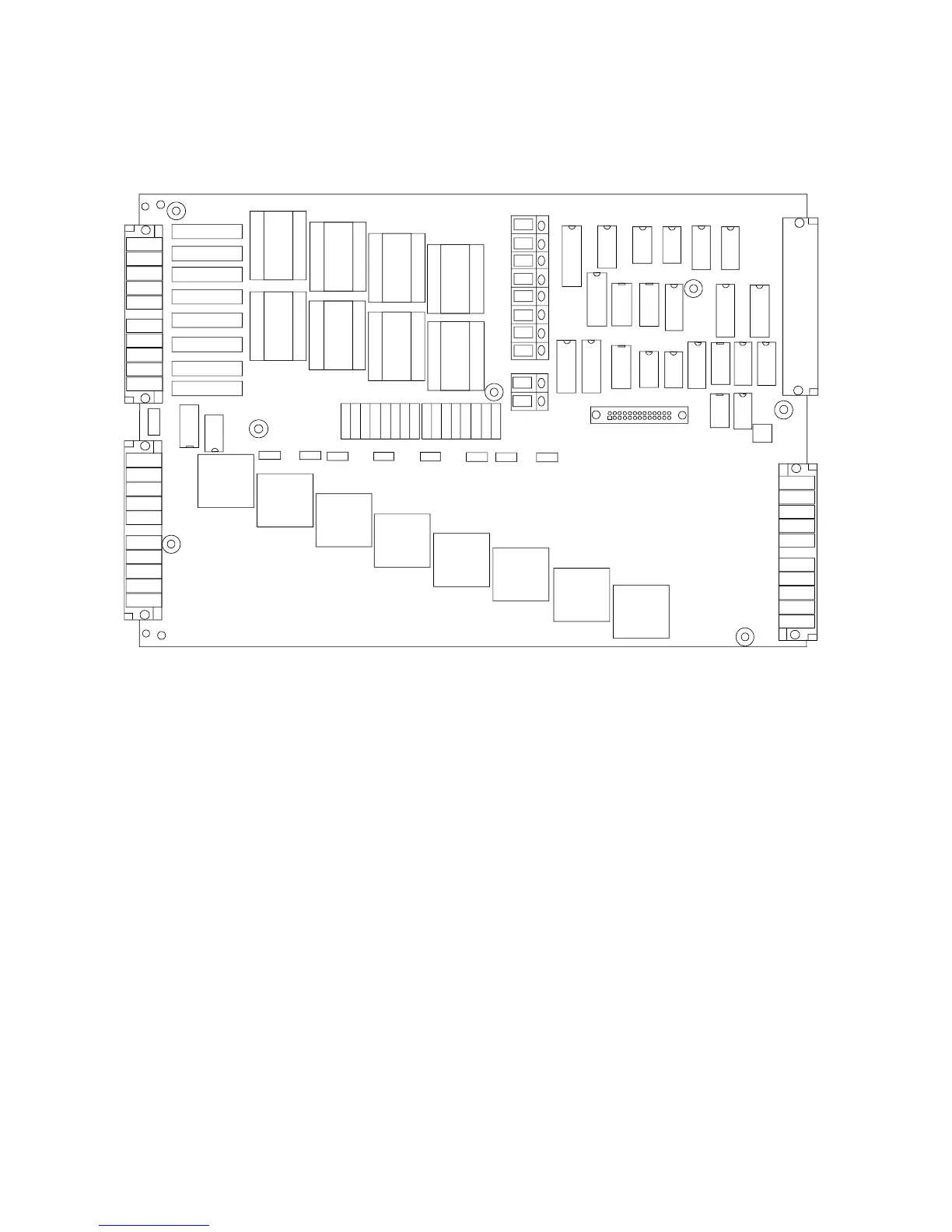

Figure 5-40 Agilent E6178B 8-Channel Heavy Duty Load Card Layout
RV1
RV2
RV3
RV4
RV5
RV6
RV7
RV8
F1
F2
F3
F4
F5
F6
F7
F8
U1
U2
U3
U4
U5
U6
U7
U8
K1
K2
K3
K4
K5
K6
K7
K8
P3
P1
J31
J32
J33
J34
J300
J102
J35
J36
J37
J38
J11
J12
J13
J14
J100
J301
J15
J16
J17
J18
P100
P200
P21
P22
P23
P24
P25
P26
P27
P28
PWR1 .
PWR2 .
CH1 .
CH2 .
CH3 .
CH4
CH5
CH6
CH7
CH8
PWR1
PWR2
CH1
CH2
CH3
CH4
CH5
CH6
CH7
CH8
CH1
SW1
CH2
CH3
CH4
NC
NC
CH5
CH6
CH7
CH8
CH1
CH2
CH3
CH4
NC
NC
CH5
CH6
CH7
CH8
P2
