1.4 Installation

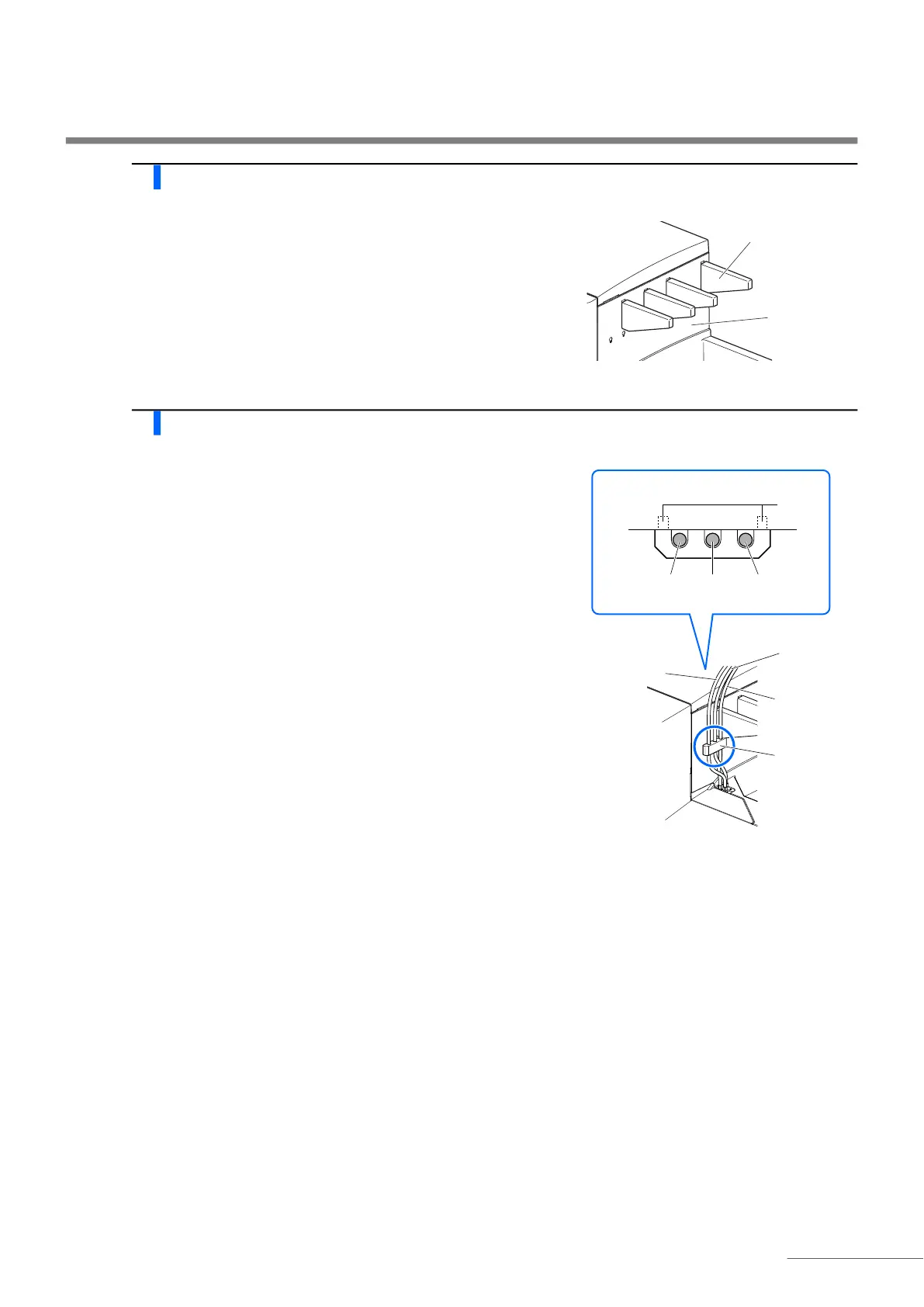

3 Attach the pack supporters.
a Attach the four pack supporters to the instrument.
• Hook the pack supporters on the holes in the center cover.
4 Fit the eluent tubes into the tube guide.
a Fit the tubes from the bottle caps A, B and CV into the grooves
in the tube guide.
b Hook the two tube guide clasps on the two holes in the center
cover.
Center cover
Pack supporter
Eluent A
Eluent B
Eluent CV
Tube guide
Front
panel
Rear
panel
Clasps
Eluent A
tube
Eluent B
tube
Seen from above
Eluent CV
tube
