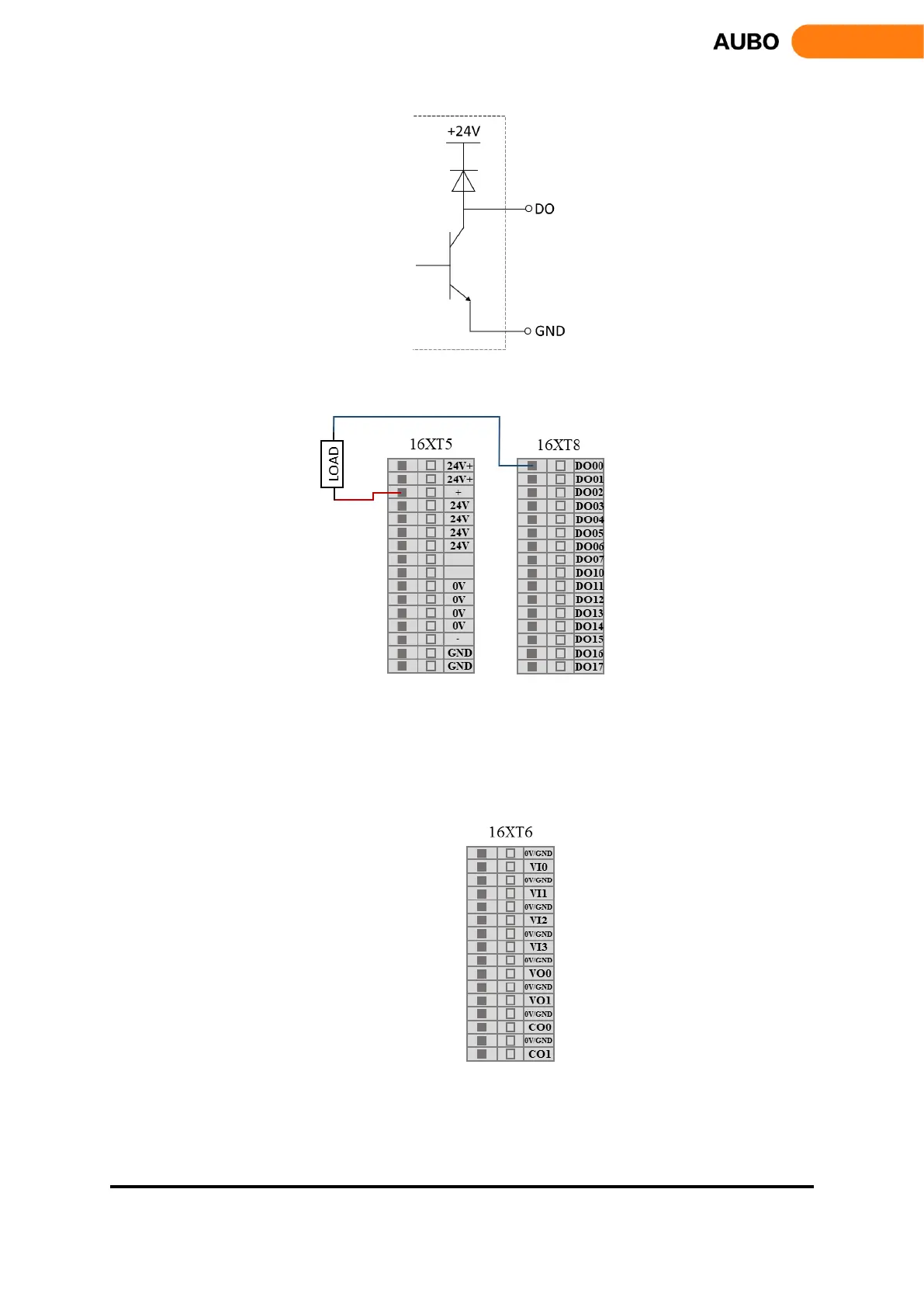

Figure 8.25 DO NPN Operating Mode
DO terminal connects to load as shown in figure below:
Figure 8.26 DO connect to load
b) Analog input
The control box has four pairs of differential analog input interfaces (Hereinafter use "VI" to represent analog
voltage input), and input voltage range is from 0V~+10V, as shown in figure below
Figure 8.27 4Analog input
External sensor wiring:
