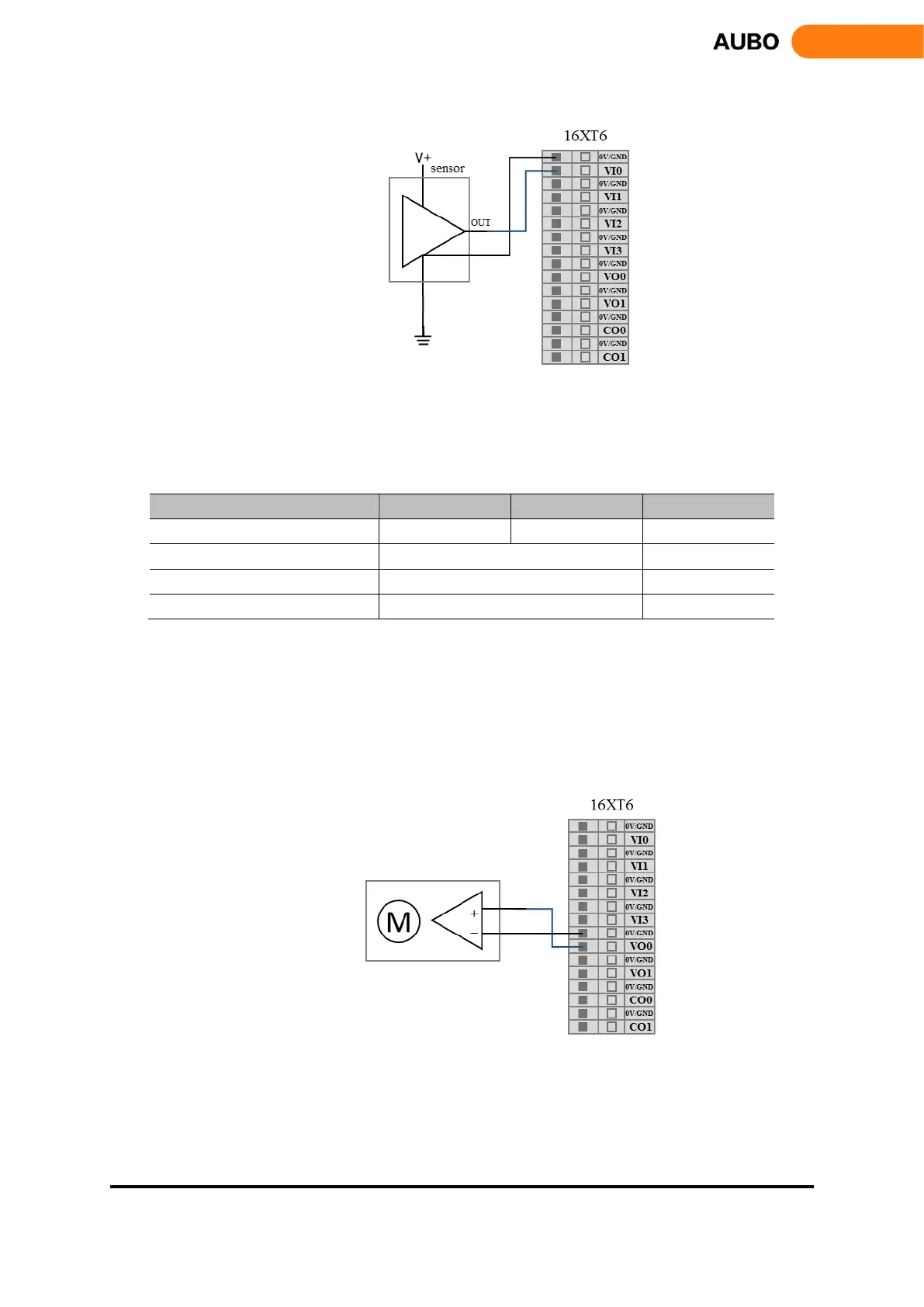

Figure 8.28 connect to sensor
VI electrical specification
Parameter term
Minimum value
Maximum value
Units
Input voltage
0
+10
V
Input resistance
100K
Ω
VI sampling resolution
12
BITS
VI sampling accuracy
10
BITS
c) Analog Output
Interface board has two analog voltage outputs and two analog current outputs, denoted as VO and CO
respectively.
The common analog voltage output connection method is listed below.
Figure 8.29 Analog output drive differential device
The common analog current output connection method is listed below.
