3. Configure a supplementary service according to the parameters described in the table
below.
4. Click Submit, and then save ("burn") your settings to flash memory.
The figure below displays an example of multiple-line extensions configured in the
Supplementary Services table:

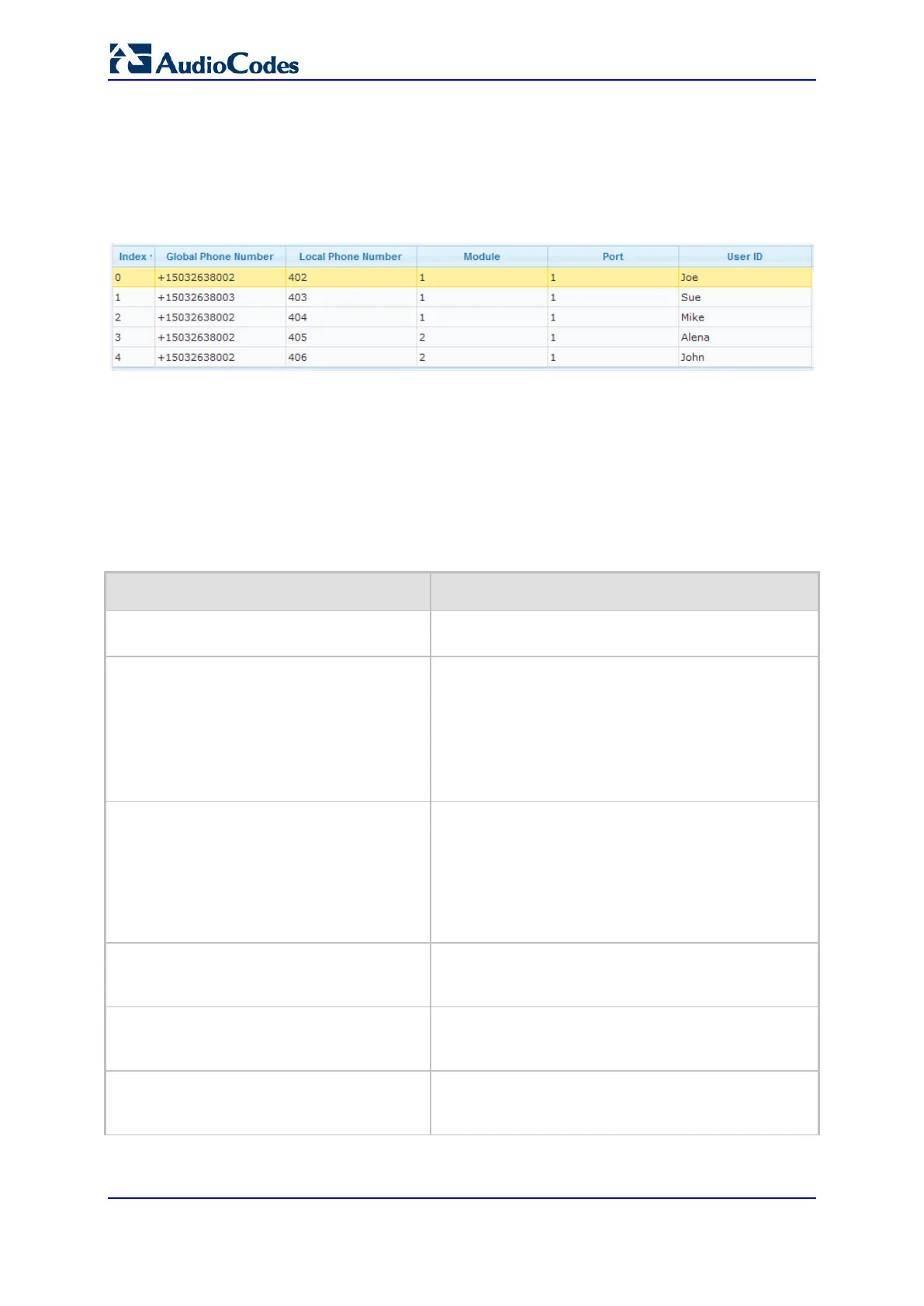

Figure 29-11: Supplementary Services Table Page
You can register and un-register an endpoint configured in the table. The registration
method is according to the 'Registration Mode' parameter located in the Trunk Group
Settings page (see ''Configuring Trunk Group Settings'' on page 375).
 To register or un-register an endpoint:
1. Select the required table row in which the endpoint is configured.
2. From the 'Action' drop-down list, select Register. To unregister the endpoint, select
Un-Register.
Table 29-9: Supplementary Services Table Parameter Description
Parameter Description
Index
[ISDNSuppServ_Index]
Defines an index number for the new table record.
Global Phone Number
phone-number
[ISDNSuppServ_PhoneNumber]
Defines a global telephone extension number for the
endpoint. The global number is used for the following
functionalities:
 Endpoint registration
 IP-to-Tel routing
 Mapping between local and global (E.164)
numbers between Tel and IP sides respectively
Local Phone Number
local-phone-number
[ISDNSuppServ_LocalPhoneNumber]
Defines a local telephone extension number for the
endpoint (e.g., the PBX extension number). The local
number is used for the following functionalities:
 Validation of source (calling) number for Tel-to-IP
calls
 Mapping between local and global (E.164)
numbers between Tel and IP sides respectively
Module
CLI: module
[ISDNSuppServ_Module]
Defines the device's module number to which the
endpoint is connected.
Port
CLI: port
[ISDNSuppServ_Port]
Defines the port number on the module to which the
endpoint is connected.
User ID
CLI: user-id
[ISDNSuppServ_UserId]
Defines the User ID for registering the endpoint to a
third-party softswitch for authentication and/or billing.
