User's Manual 644 Document #: LTRT-10466
Mediant 500L MSBR
• Retain the existing configuration (default): Select the 'Use existing
configuration' check box to use the current configuration (and do not select an ini
file).
• Restore configuration to factory defaults: Clear the 'Use existing configuration'
check box (and do not select an ini file).

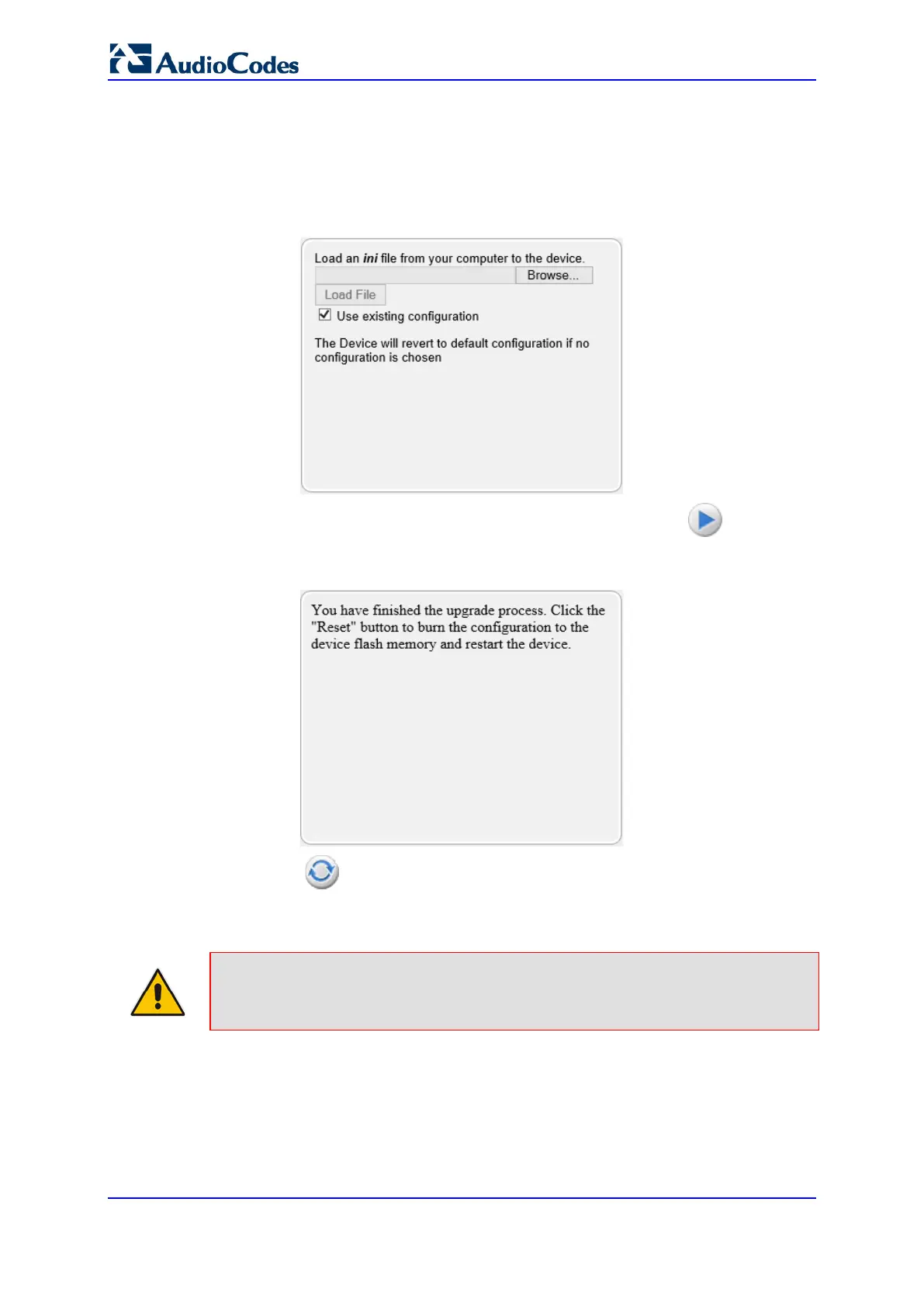

Figure 46-9: Software Upgrade Wizard – Load INI File
11. When you have completed loading all the desired files, click Next until the last
wizard page appears (the FINISH button is highlighted in the left pane):
Figure 46-10: Software Upgrade Wizard – Files Loaded
12. Click Reset to burn the files to the device's flash memory; the "Burn and reset in
progress" message is displayed and the device 'burns' the newly loaded files to flash
memory and then resets.
Note: Device reset may take a few minutes (even up to 30 minutes), depending on
.cmp file version.
