7. Advanced
7.8.5.2 Accessing the Soft edge menu
How to access the Soft edge menu ?
1. Press MENU to activate the Tool bar
2. Press → to select Display setup
3. Press ↓ to pull down the menu
4. Push ↓or ↑ to select Soft edge
5. Push the → key to pull down the menu.

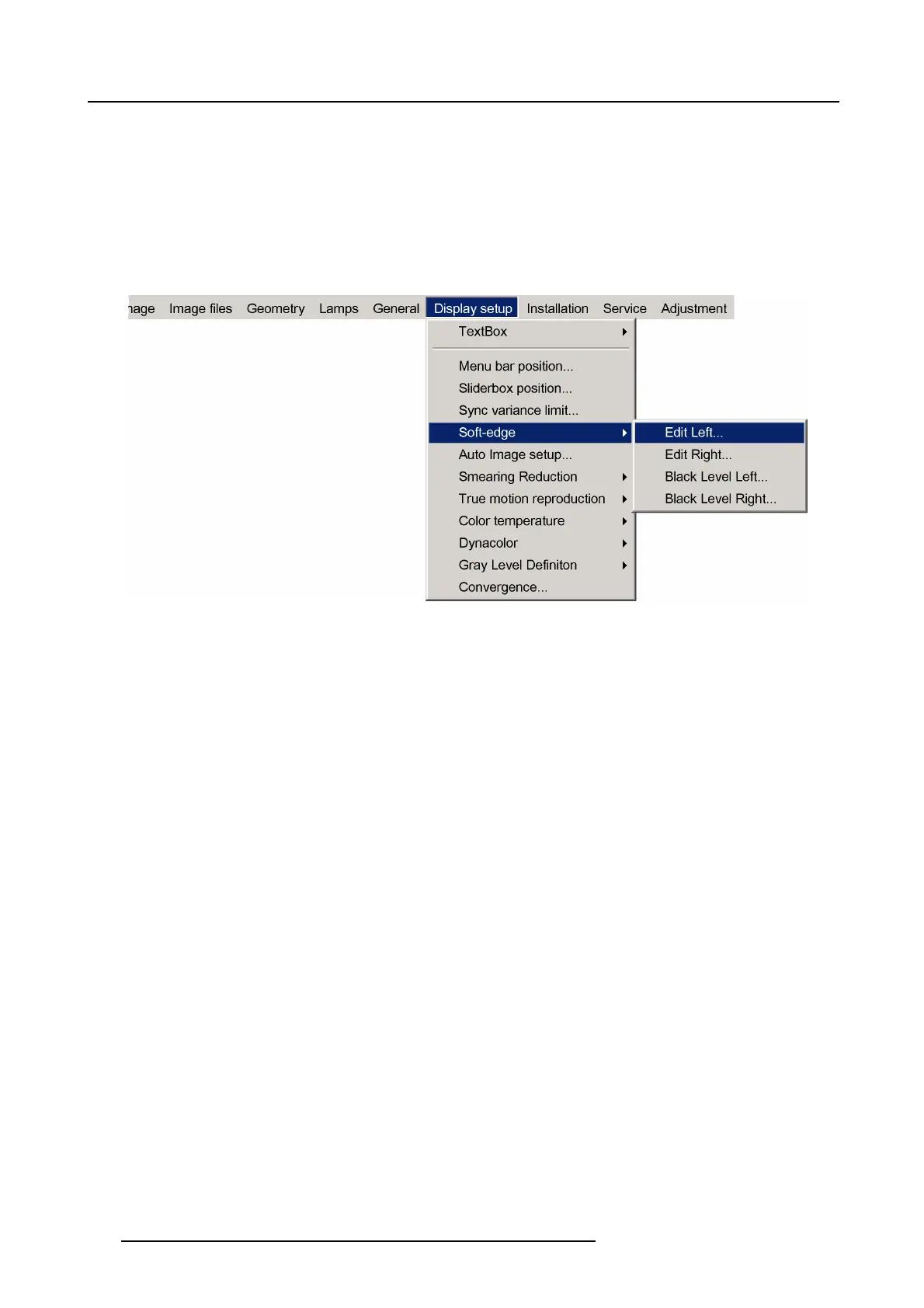

Image 7-93
7.8.5.3 Soft edge edit
Overview
• The soft edge edit wizard
• The soft edge edit modes
• Creating/editing a soft edge
• Alpha planes
7.8.5.3.1 The soft edge edit wizard
The geometry wizard
When entering the Edit mode, the Edit dialog box is displayed.
Description of the Edit dialog box
An intuitive user interface is used to perform all the Soft edge adjustments.
