7. Advanced

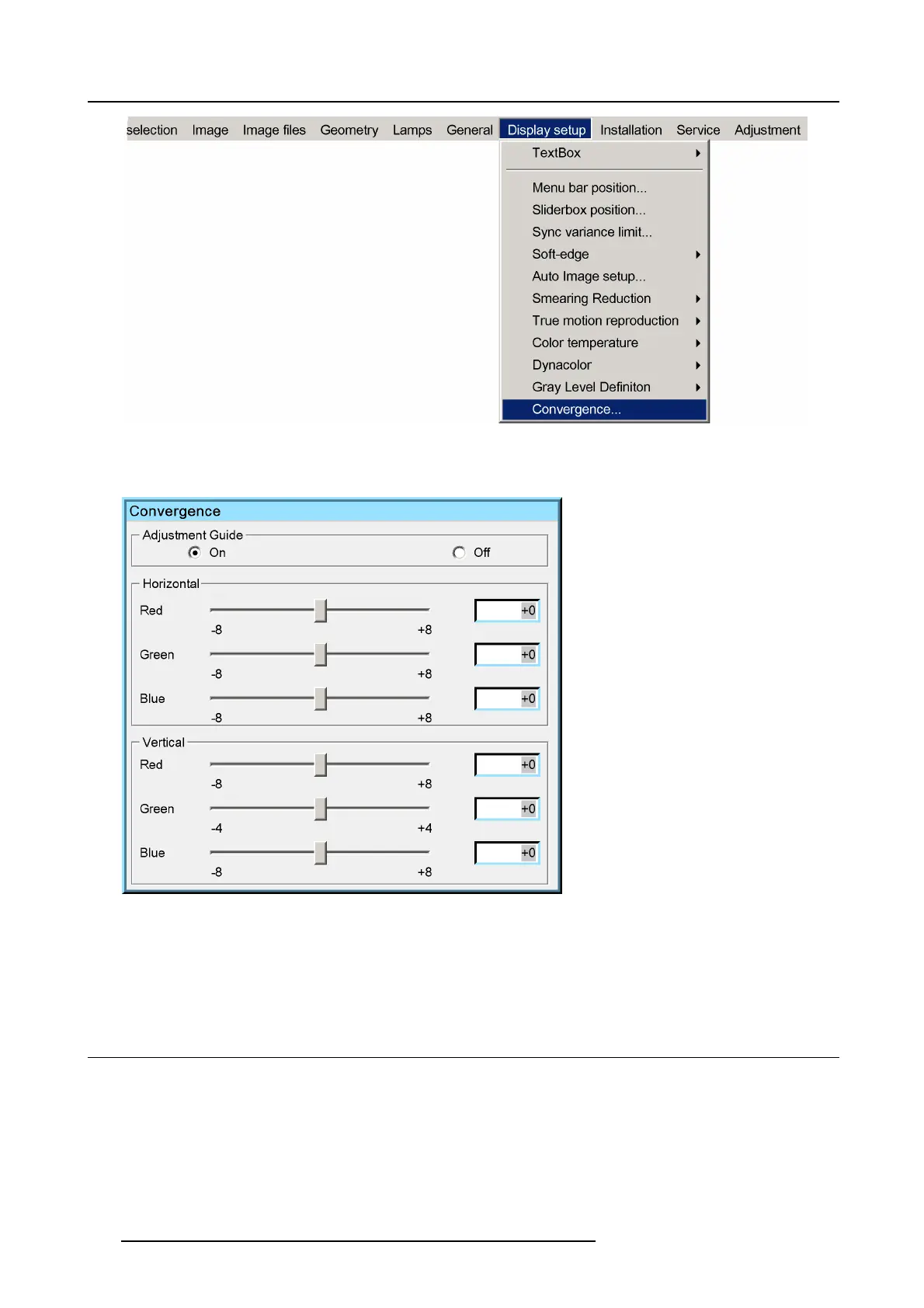

Image 7-151
5. Press ENTER
A dialog box is displayed
Image 7-152
6. Use ←or → , the numeric keys on the remote, or the keypad to change the values
Note: The range of the vertical adjustment for green is only -4 to +4 (in pixels), whereas all other adjus tment ranges a re from
-8 to +8 pixels .
Note: No image lines or columns are lost by changing these convergence settings.
7.9 Installation
7.9.1 Lens adjustments
How to adjust the lens ?
1. See the Setup section.
138
R59770198 BARCO SIM 7D 13/02/2013
