4. Installation

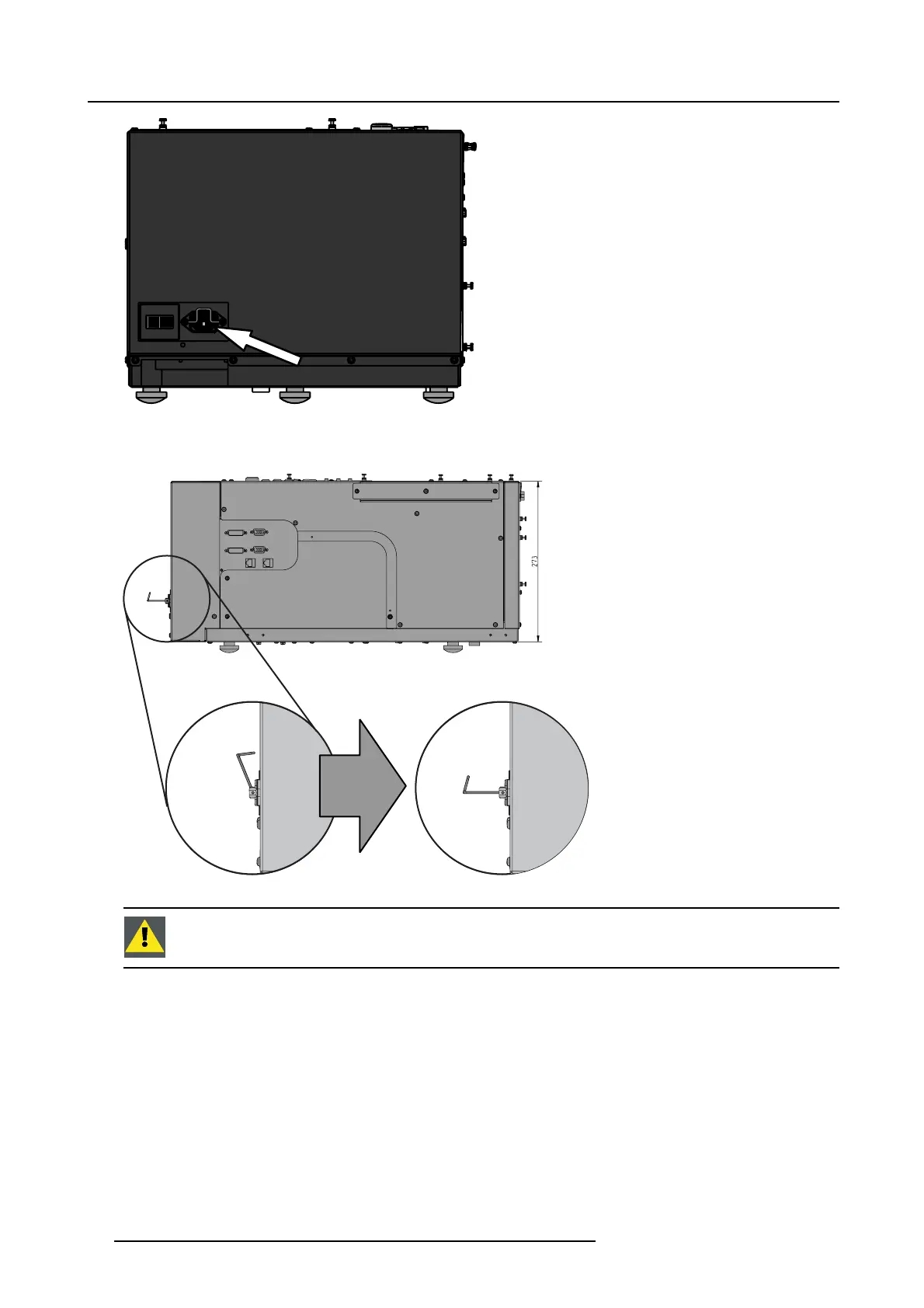

Image 4-27
Barco SIM7 Power connection
3. Secure the connection with the locking spring.
OPEN CLOSED
Image 4-28
CAUTION: To prevent damage to the projector always ensure that the locking spring is well engaged !
4.7.2 Signal connections
Overview
• The input section
• Input specifications
• Connecting a DVI source
• Source specification
