7. Advanced

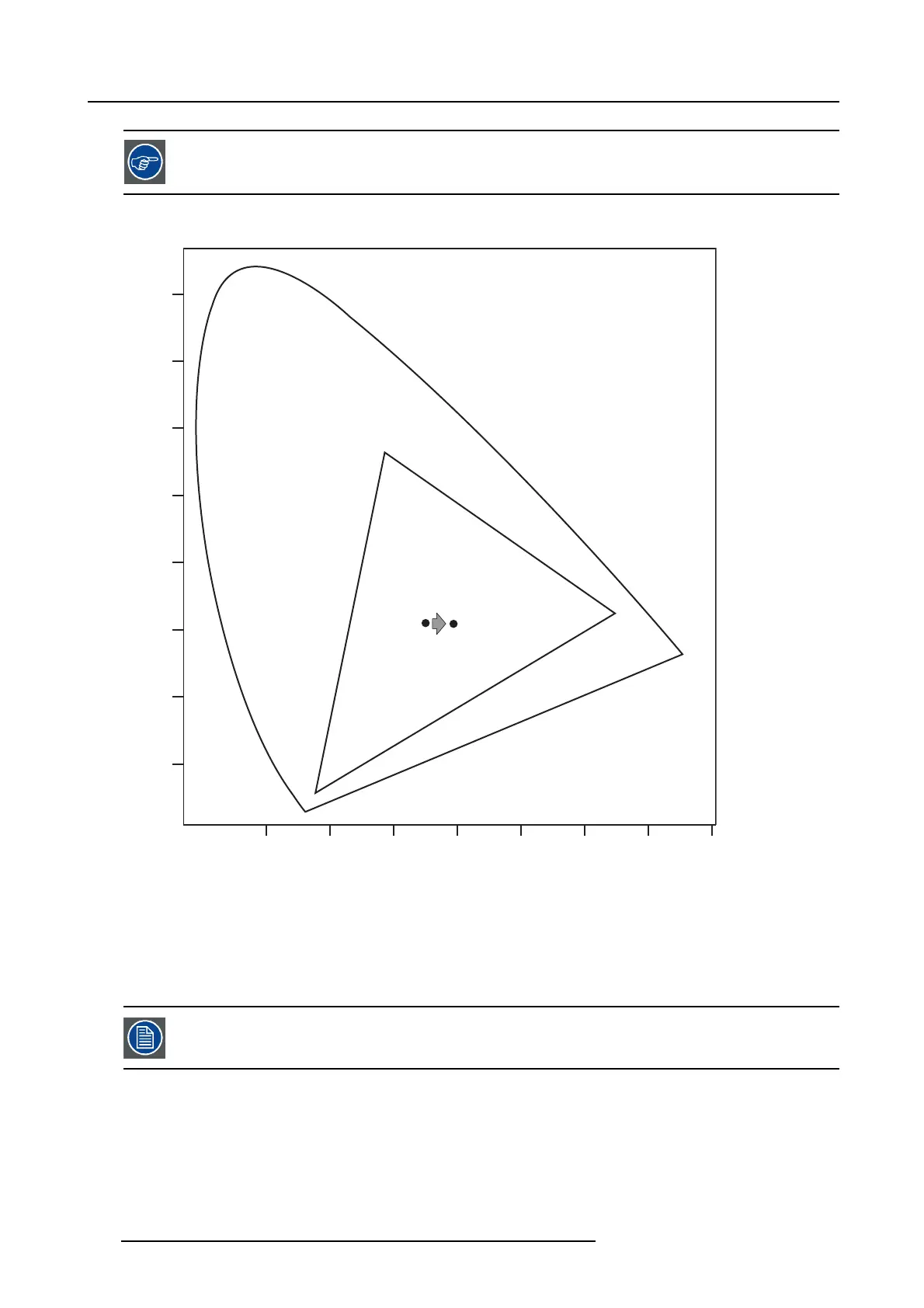

Make sure that the new x and y coordinates are within the projectors default color triangle.
E.g. If you increase the x-value of the white point in the desired values from 0.3260 to 0.3560, the white point will shift towards the
red region and the overall look of the image will be more reddish.
0.1
0.20.1 0.3 0.4 0.5 0.6 0.7 0.8
0.2
0.3
0.4
0.5
0.6
0.7
0.8
X
Y
G1
W1
W1’
R1
B1
Image 7-133
Dynacolor recalibration/adjustment procedure (multiple projectors)
The adjustment of Dynacolor:
1. Measuring the color values for each projector (Calibration procedure)
2. Calculating the common values and entering them in the desired values of every projector
The recalibration/adjustment is explained in the procedure below.
7.8.10.3.2 Calibration (for multip
le projectors)
What has to be done ?
The calibration of Dynacolor consists of measuring the color values of each projector. The measurements have to be done in a
dark environment. Make sure all external lights are off (even a PC screen can produce too much unwanted light). Use a light
126
R59770198 BARCO SIM 7D 13/02/2013
