7. Advanced

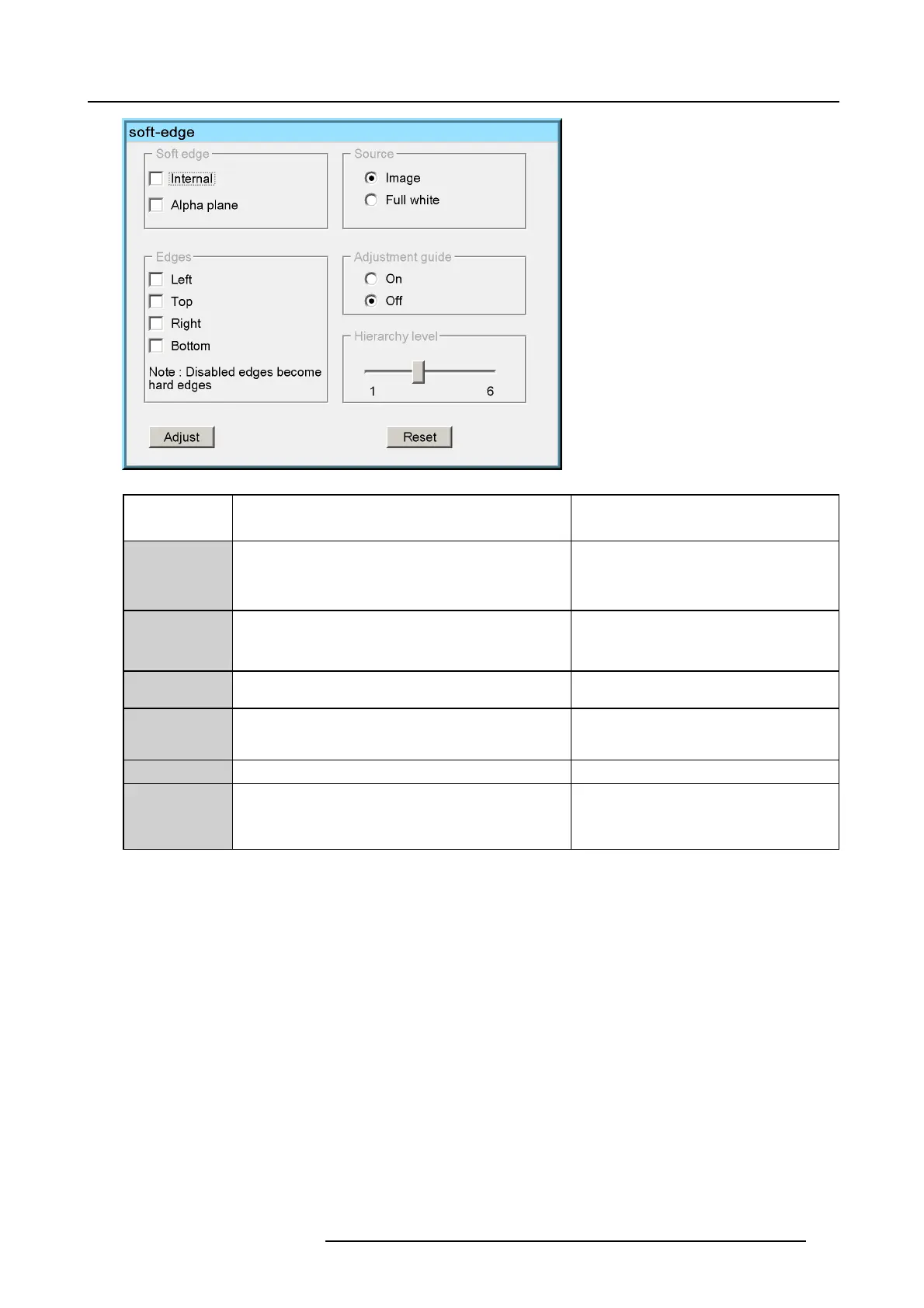

Image 7-94
Field
/adjustment
Description Notes
Planes
Allows to select the type of soft edges :
- internal soft edge
- Alpha-Beta planes
Edges
It is possible to select one or more of the 4 edges of the
image:
Left/Top/Right/Bottom
A Disabled edge is a hard edge. Adjusting a
hard edge results in a blanking adjustment.
See blanking
Source The background image on which the soft edge adjustment
is applied can be the source or a full white image (pattern)
The procedures in this manual are explained
using a full white background
Adjustment guide
An adjustment guide consisting of a 4 brightness graduated
bars can be applied on the background image during the
soft edge adjustment
Hierarchy level
Allows to select the level of the adjustment.
Reset
The soft edge shape is set to default settings. Soft edge shape follows geometry settings,
the shape of the soft edge is set to 12.5%, all
edges are set to hard edge (i.e. all of them
are disabled)
Tabl e 7 -3
dialog box legend
7.8.5.3.2 The soft edge edit modes
The Edit Modes
• Select mode : allows to select the desired point using the ←and→ arrows or to select the desired level or edge using the ↓and
↑ arrows.
• Adjust mode : allows to perform the correction (in real time) using the arrows.
• Edit mode : allows to select the desired control (edit box, ...) in the dialog box.
• Change mode : allows to change the values in the edit boxes of the dialog box.
R59770198 BARCO SIM 7D 13/02/2013
103
