7. Advanced
7.8.10.3.3 Common color values
What can be done ?
The common color values can be determined manually.
Calculating the common color values
1. Calculate the common values and enter them in the Desired values of both projectors.
Both projectors will now operate within the same color gamut.
7.8.10.3.4 Factory preset
Description
During factory calibration of the projector, the projector’s native colors are measured in ideal conditions and entered as measured
values in the projector. If at any time the Dynacolor parameters are changed and a bad color reproduction is observed, you can

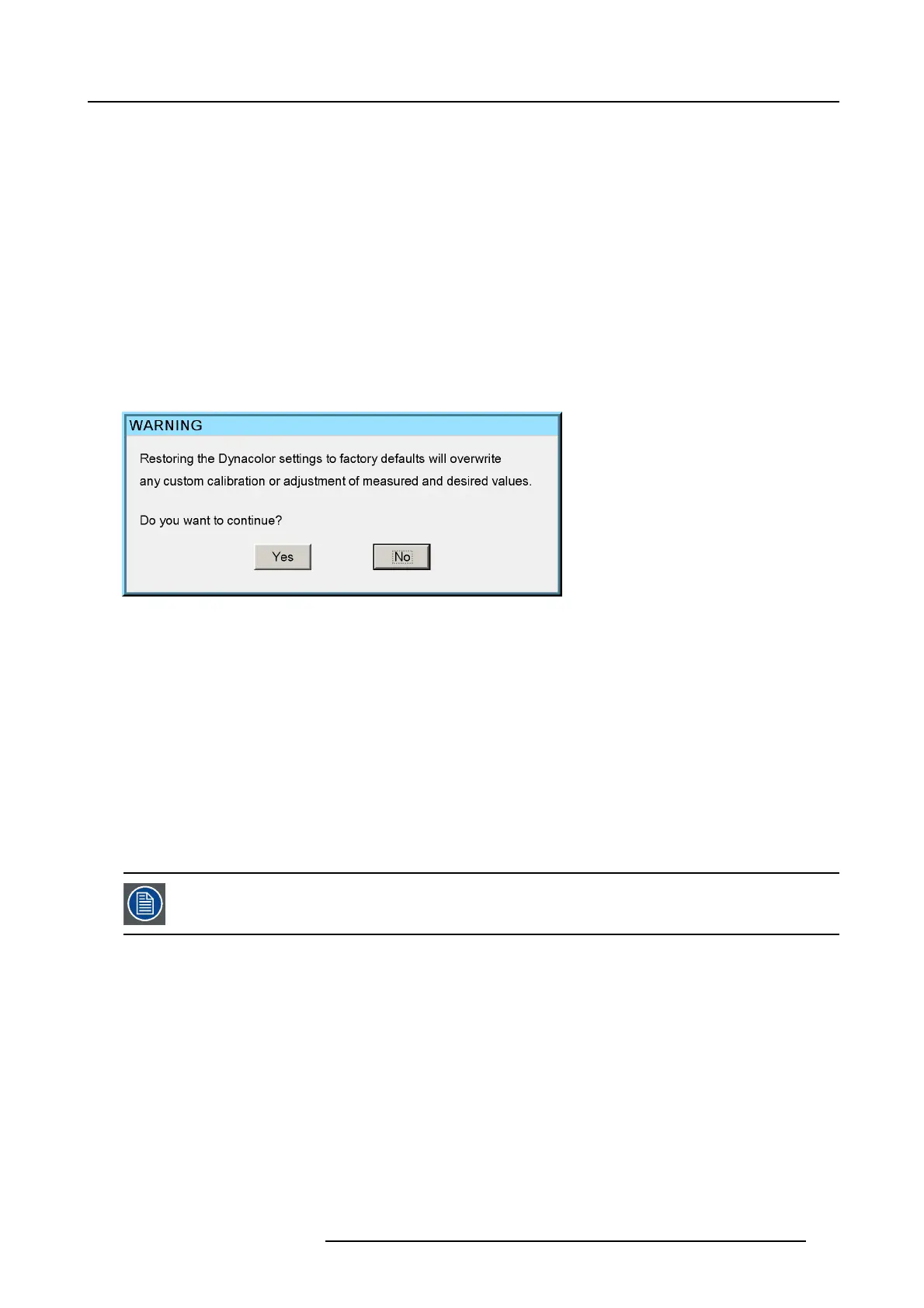

easily return to the factory settings by clicking Factory preset in the D ynacolor dialog. A warning message is displayed.
Image 7-137
7.8.10.4 Black color matching
Overview
• Introduction
• Black Color adjustment
7.8.10.4.1 Introduction
Black Color uniformity
In a multi channel system, the color of “black” can differ over the different channels/projectors. This can be matched using the Black
color matching function. This function allows to
adjust the Red, Green and Blue contribution to the black color produced.
The procedure has to be done for all the channels (projectors)
7.8.10.4.2 Black Color adjustment
How to adjust black color ?
1. Press MENU to activate the Tool bar
2. Press → to select the Display setup item
3. Press ↓ to Pull down the Display setup menu
4. Use ↑ or ↓ to select Dynacolor
5. Press → to open the menu
6. Use ↑ or ↓ to select B lack Color m atching...
R59770198 BARCO SIM 7D 13/02/2013
129
