7. Advanced
10.Fill in the measured x and y and coordinates and the Y value
Note: theYvaluewillbetransformedinaLvaluebytheprojector
11. Press Proceed
A Green test pattern is displayed
12.Proceed in the same way for Green, Blue and White as for the Red color
13.The values are finally updated in the measured values of the Dynacolor dialog box.
14.Press Default desired to copy the measured values for Red, Green, Blue and White and to calculate the secondary colors Cyan,
Yellow and Magenta.

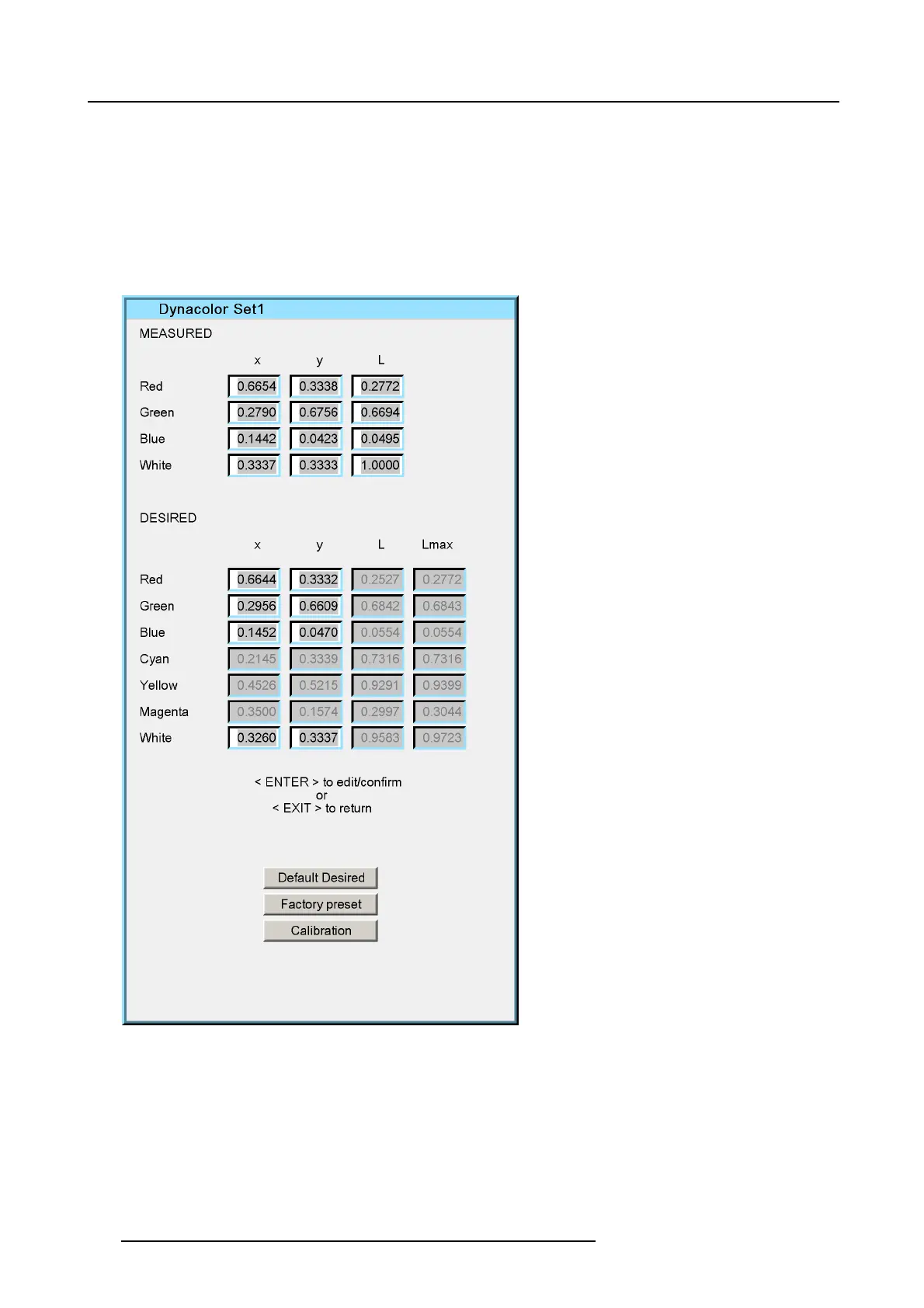

Image 7-136
How to calibrate Dynacolor for projector 2
1. Proceed in the same way as for projector 1
The values will slightly differ form the ones of the fi rst projector.
128
R59770198 BARCO SIM 7D 13/02/2013
