8. Maintenance
Image 8-22

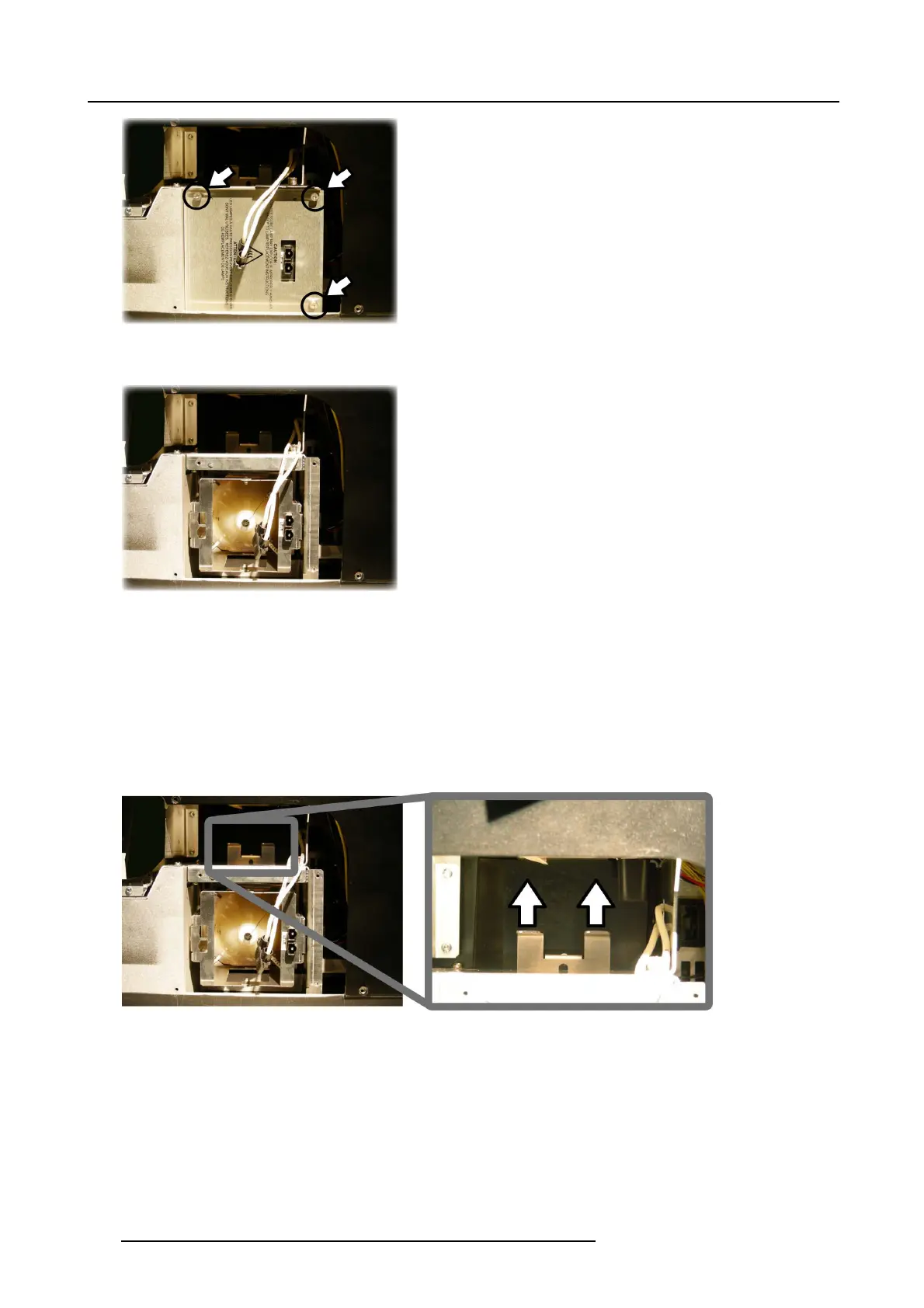

Lamp door: fixation screws
3. Remove the lamp door
Image 8-23
Lamp door: removed
8.4.3 Removing the lamp
Necessary tools
No tools.
How to remove the lamp?
1. Lift the lamp locking handle to release the lamp
Tip: G ently push the lam p into its housing to ease the lifting of the lamp locking handle!
Image 8-24
Lamp locking handle: lift it to
release the lamp
2. Pull out the lamp in a straight way
