7. Advanced
7.8.11.3.2 Performing GLD correction
Enabling Gray Level Definition

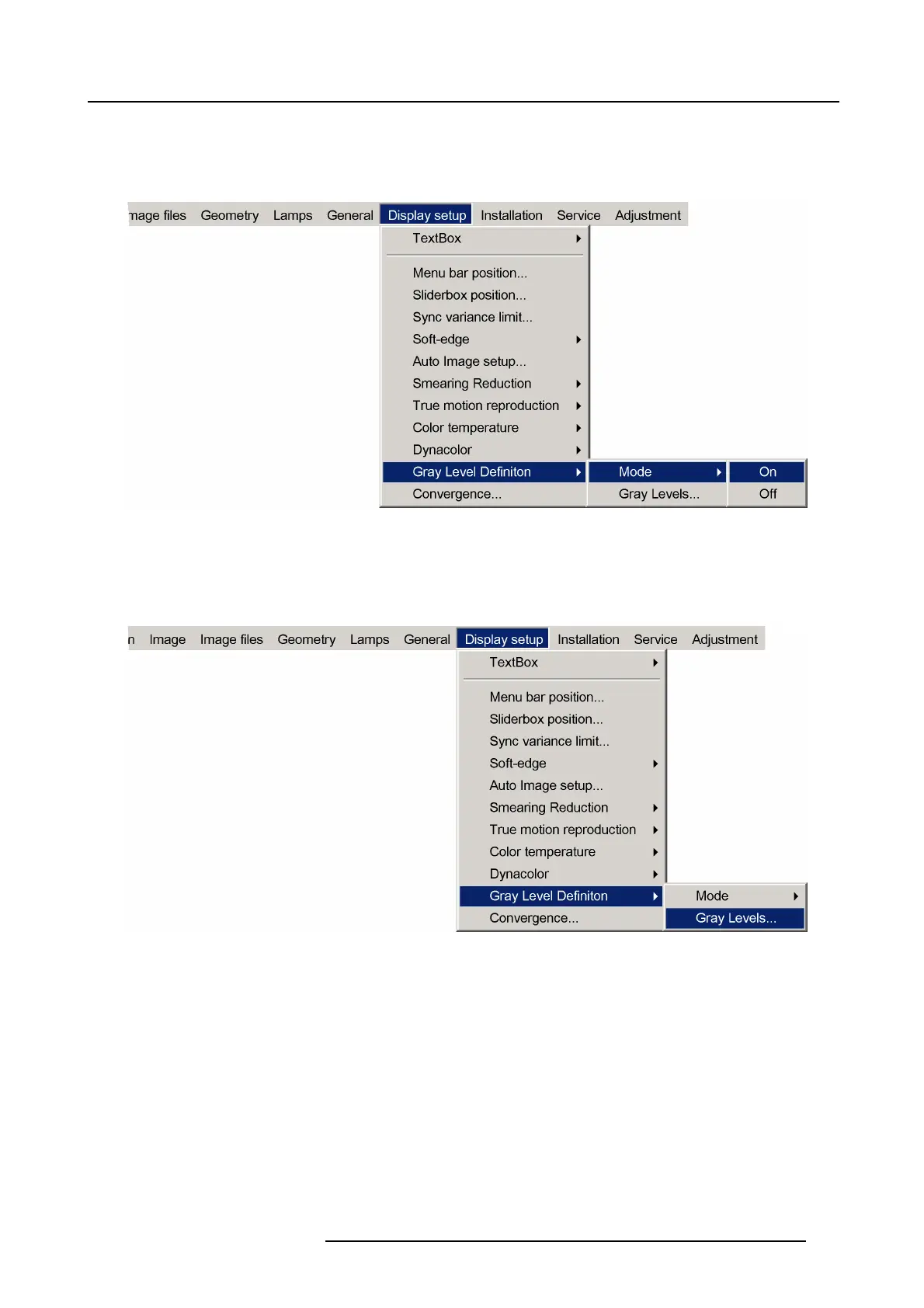

1. In the OSD menu of the projector, browse to Display setup > Gray Level Definition > Mode > O n
Image 7-145
2. Press ENTER to enable GLD
Setting the GLD user interface
1. Browse to Display setup > Gray Level Definition > Gray Levels... and press ENTER to open the Gray Level Definition user
interface
Image 7-146
2. Use the arrows on the Remote Control Unit (RCU) to highlight Gray Level or Image in the Source section and confirm by pressing
ENTER
- Gray Le vel is used to use the internal gray level patterns (advised!)
- Source must be selected to use patterns generated by an external source (different gray level required per gray range)
R59770198 BARCO SIM 7D 13/02/2013
135
