4. Installation

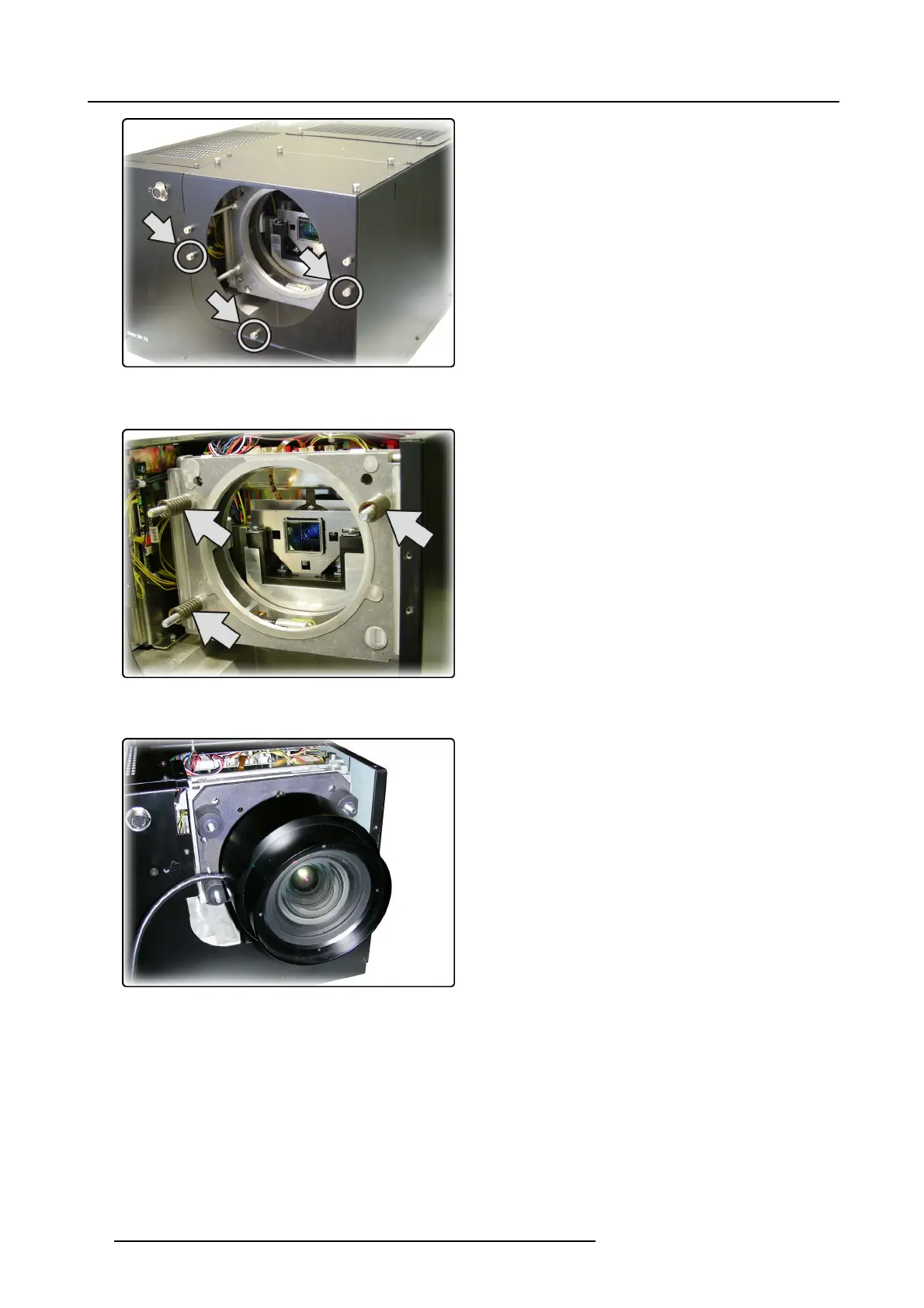

Image 4-18
Bottom lens cover: fixing screws
3. Remove the lock nuts and washers from the lens holder studs, but leave the springs on the lens holder studs
Image 4-19
Lens: scheimpflug springs
4. Slide the lens over the 3 studs
Image 4-20
Lens positioned
5. Put a washer and a lock nut on each stud
22 R59770198 BARCO SIM 7D 13/02/2013
