Barco SIM 7D User Manual

4. Installation
-20%
-20%
+20%
+100%
+20%
-100%
Image 4-10
Lens shift: maximum horizontal shift (vertical shift = maximum = 100%)
+100%
-100%
-70%
-20%
+20%
-20%
+20%
+70%

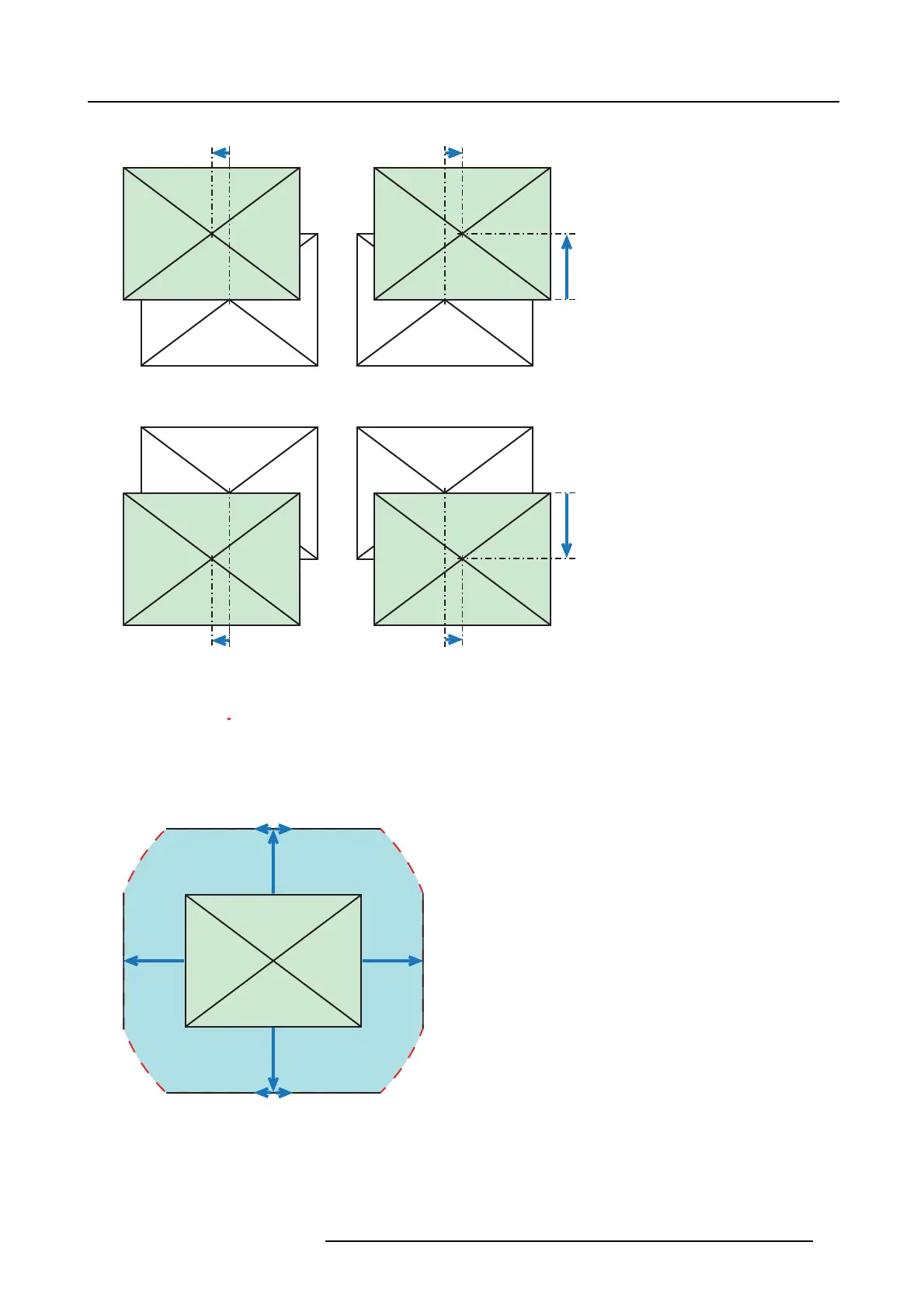

Image 4-11
Lens shift: range
The best image quality is obtained in nominal lens position (i.e. 0% shift). Shifting the image to the limit of its range starts introducing
some falloff. The exact range in the area indicated by the red dashed line depends on lens type and application.
R59770198 BARCO SIM 7D 13/02/2013
