Barco SIM 7D User Manual

5. Setup
7. Repeat step 3 to step 6 until the image stays in focus regardless to the zoom position
8. Fix the 4 screws
5.7.4 Adjusting the lens
Description
The shift adjustment is done during the Installation phase.
The other adjustments possible on the lenses are:
• Motorized zoom
• Motorized focus : should be done during the installation phase
• ECR (Extended Contrast Ratio) : ECR is done through automatic adjustment of the lens opening (aperture). This is done during
for example Time of Day adjustment
See the dedicated system manual for more information
CAUTION: Make sure to unlock the focus ring and the zoom ring before adjusting the zoom or focus of the
lens!
CAUTION: In case of a projector with rugged option, make sure to unlock the lens holder before shifting it up
/ down or left / right.

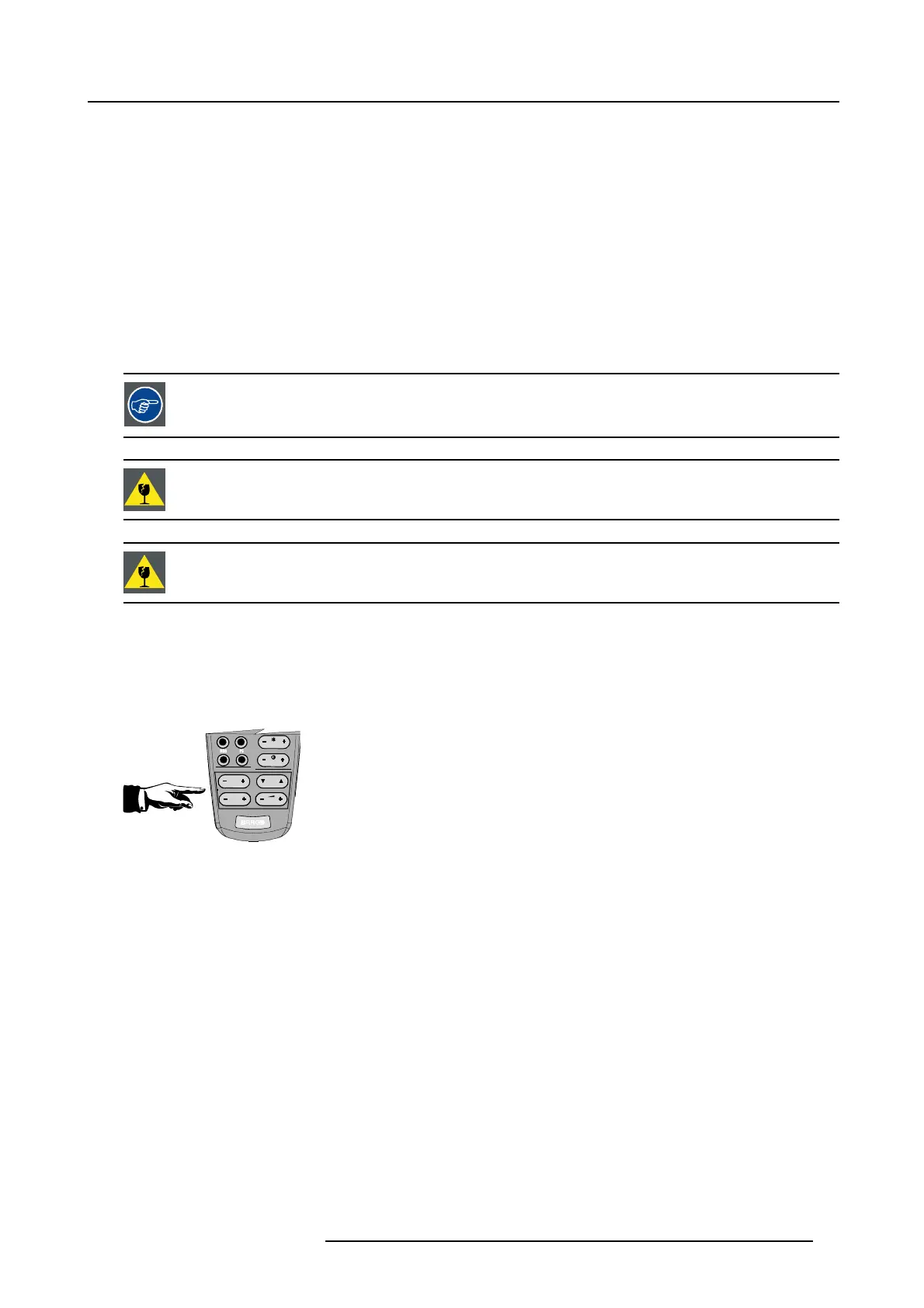

How to adjust the lens using the direct keys on the RCU?
1. Use one of the following keys on the RCU:
- Lens shift (↑ or ↓): to shift down or up
- Lens zoom (- or +): to zoom out or in
- Lens focus (- or +): to adjust the focus
3
1
4
2
LEN S
Z OO M
LEN
S
SH
IF T
LEN
S
F OCUS VO L
CO NTR
BRI G HTN
Image 5-21
How to shift using the OSD in combination with the RCU (or local keypad)?
1. Press MENU to activate the Tool bar
2. Press → to select the Installation
3. Press ↓ to Pull down the Installatio n menu
4. Use ↑ or ↓ to select Lens adjustments...
R59770198 BARCO SIM 7D 13/02/2013
47
