5. Setup

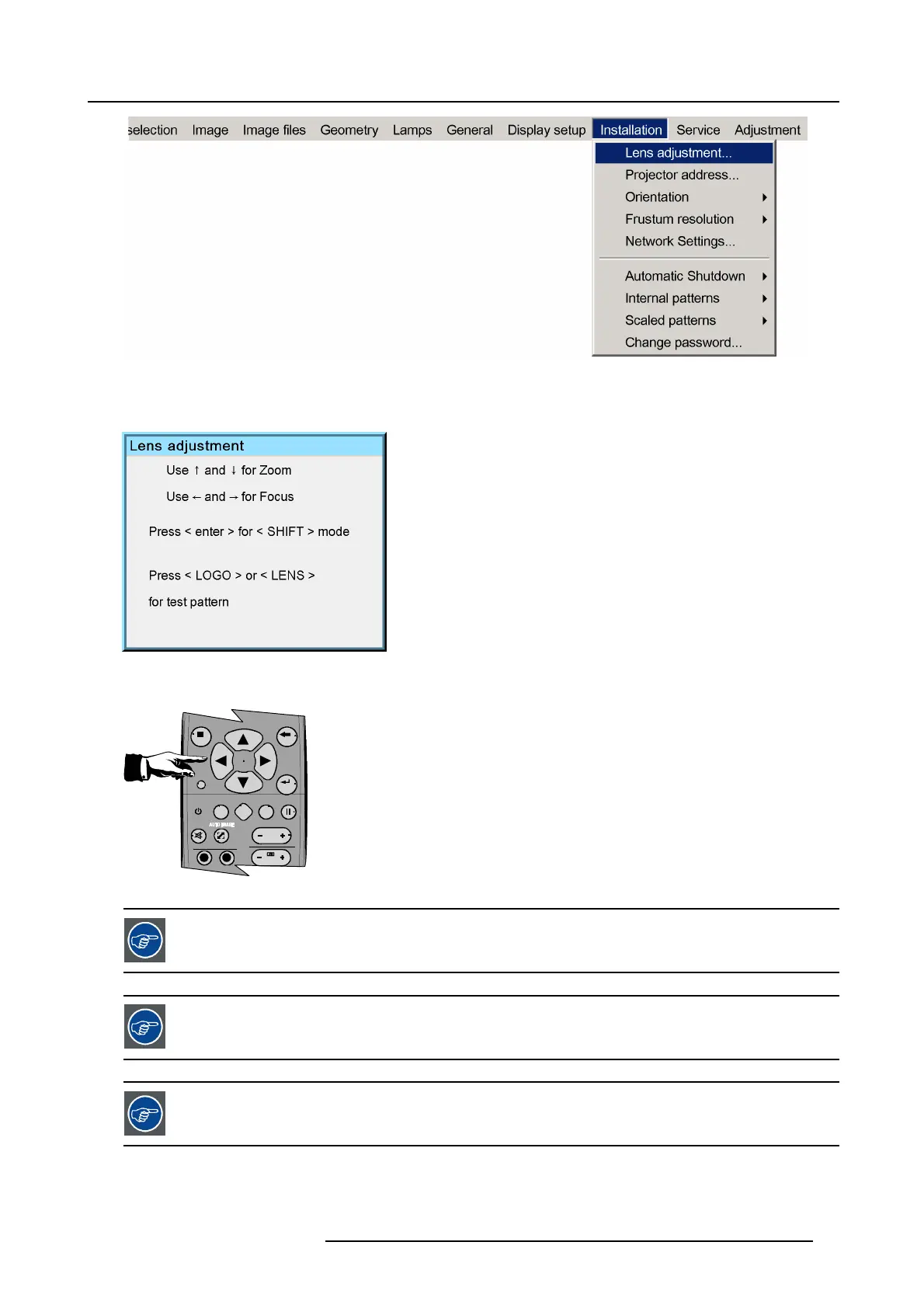

Image 5-26
5. Press ENTER
A text box appears on the screen, follow the instructions.
Image 5-27
6. Use the keys on the RCU to perform the desired action
9
0
EN T ER
MEN U BA C K
DI
G
I
Z
OO
M
PH A
SE
PA USE
PI P
L OGO
Image 5-28
The use of a sheet of paper held in front of the screen can be useful to determine the focus plane (position
for best focus)
Unsharp corners in the image can be adjusted with the Scheimpflug adjustment (3 adjustment screws on the
lens holder), see the Lens
installation section
Before adjusting the lens focus, insure that the Back Focal Length is correctly adjusted, "Back focal length
adjustment", page 44
R59770198 BARCO SIM 7D 13/02/2013 49
