SECTION 55 - ELECTRICAL SYSTEM - CHAPTER 1
55-4

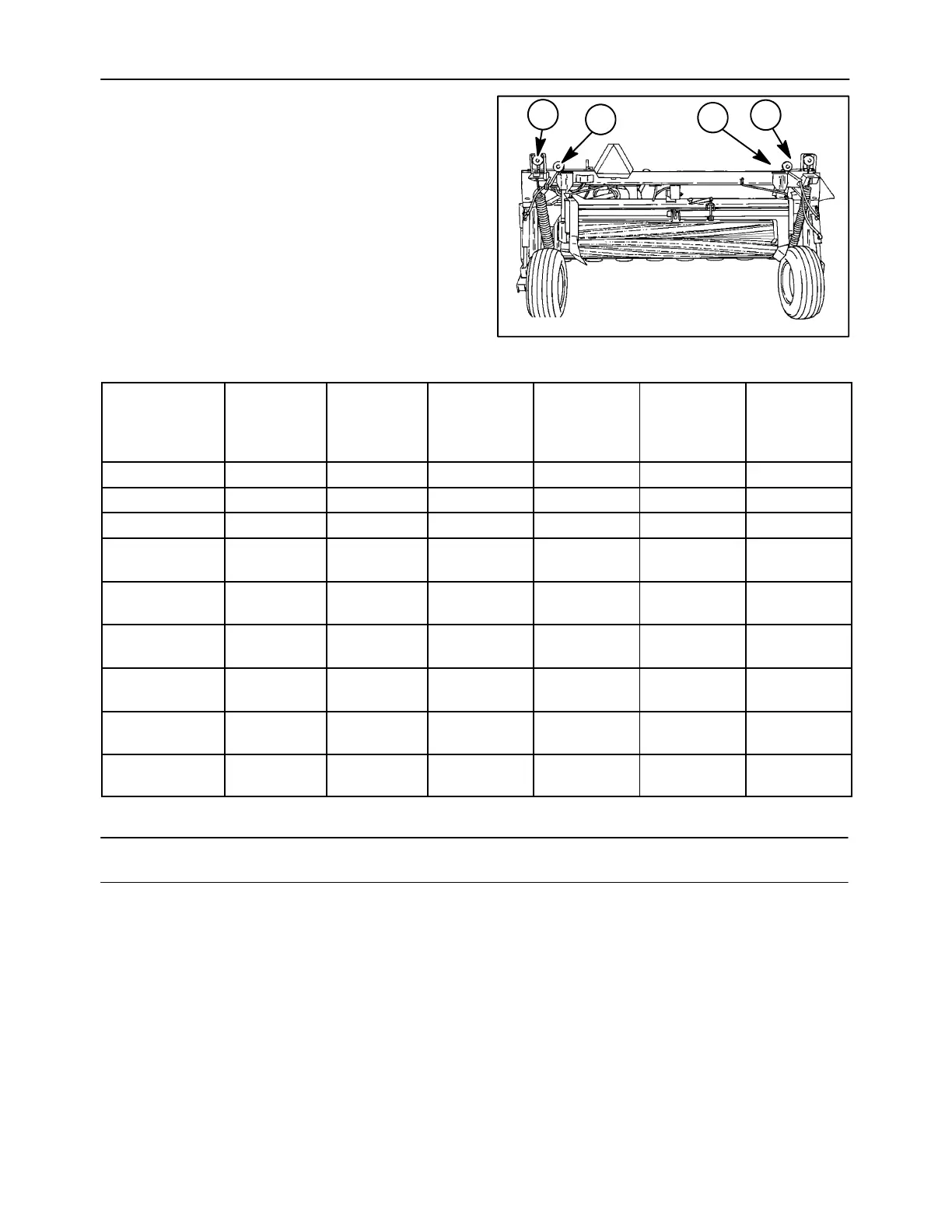

NOTE: On this equipment, left and right are
determined by standing behind the unit, looking in
the direction of travel.
20011816
1
3
2
4
6
Mower
Conditioner’s
Lights
Left
Amber
Outer
Lamp, 1
Left Red
Inner
Brake
Lamp, 2
Left Red
Inner
Tail
Lamp, 2
Right Red
Inner
Brake
Lamp, 3
Right Red
Inner
Tail
Lamp, 3
Right
Amber
Outer
Lamp, 4
Lights Off Off Off Off Off Off Off
Lights On Off Off On Off On Off
Brakes Only Off On Off On Off Off
Hazards/
No Brakes
Flashing Off Off Off Off Flashing
Hazards with
Brakes
Flashing On Off On Off Flashing
Left Turn/
No Brakes
Flashing Flashing Off Off Off On
Left Turn with
Brakes
Flashing Flashing Off On Off On
Right Turn/
No Brakes
On Off Off Flashing Off Flashing
Right Turn with
Brakes
On On Off Flashing Off Flashing
NOTE: The lighting control box is used to control the amber lamps and brake light circuits. The tail lamps
are on only when the tractor park or road lights are on.
