SECTION 58 - ATTACHMENTS / HEADERS - CHAPTER 3
58-21

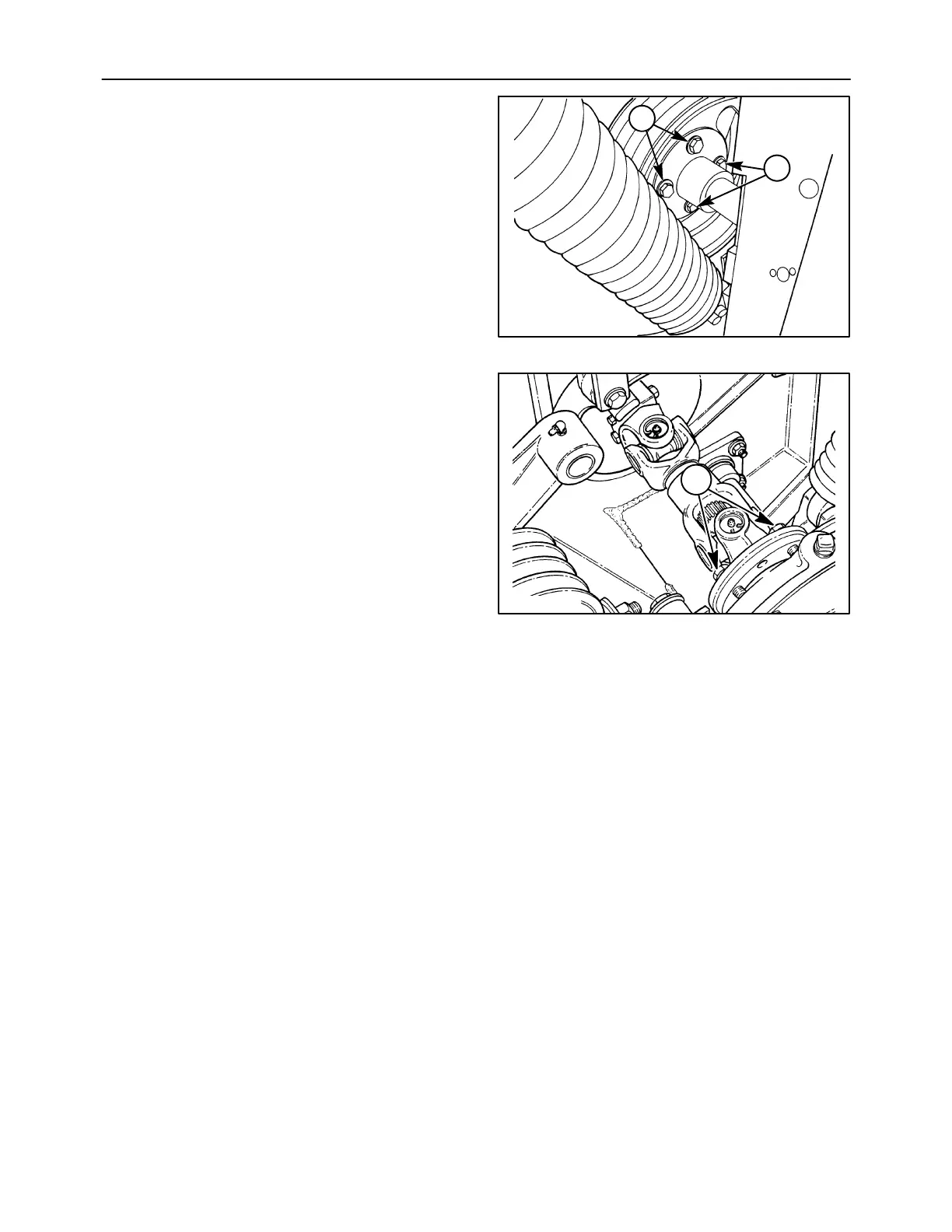

10. Rotate the lower roll until the holes in the sheave
line up with the holes in the lower shaft flange on
the gearbox, and reinstall the four cap screws, 1,
and washers. Remove the upper mount cap
screw, and reinstall it through a washer, the
gearbox mount, washer, frame mount, washer
and locknut. Torque the lower retaining bolts to
113 Nám (83 ft-lb). Tighten the upper mount cap
screw to remove play in the mount. Do not tighten
excessively.
A3662-4
1
1
54
11. Reconnect the upper roll drive shaft by aligning
the master splines and sliding the two half shafts
together. Position the yoke flange to the upper
shaft in the gearbox and reinstall the cap screws,
1, and washers. Do not tighten the hardware.
A3659-36
1
55
