SECTION 58 - ATTACHMENTS / HEADERS - CHAPTER 3
58-22

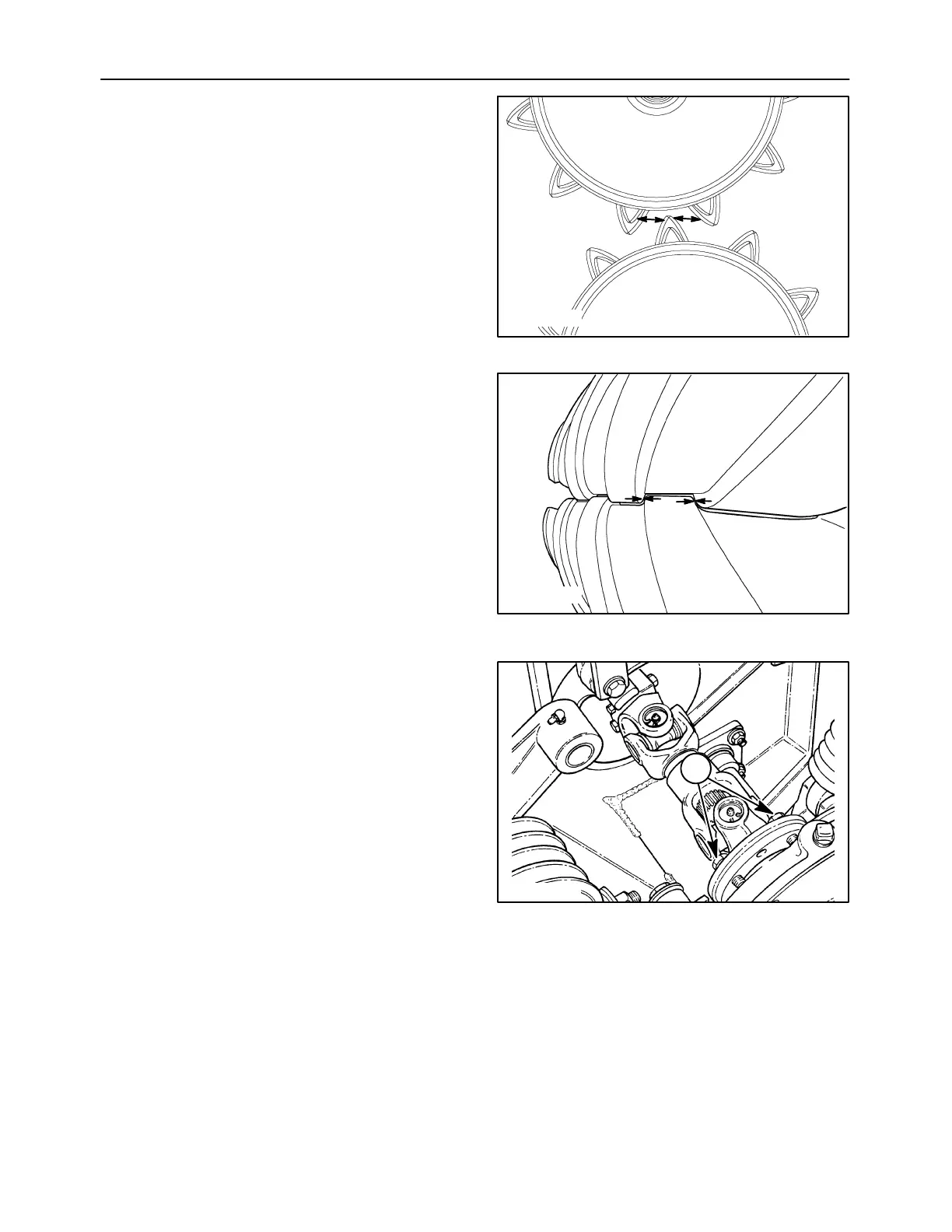

12. Check the conditioner rolls for proper timing. The
lug of one roll should be centered between the
two lugs of the opposite roll, as shown. The lugs
must not touch.
50011826
Steel Rolls
56
50010722
Rubber Rolls
57
13. Reset the timing by ensuring the upper roll drive
shaft yoke flange cap screws, 1, are loose.
Center the top roll lug in the bottom roll lug gap
while applying hand force on the lower roll in the
direction opposite the normal rotation. Tighten
the four cap screws, then recheck the timing by
applying reverse rotational force on both rolls.
A3659-36
1
58
