Chapter 4 Using the Front Panel to Configure the D9887B HDTV Modular Receiver
76 78-4043743-01 Rev A

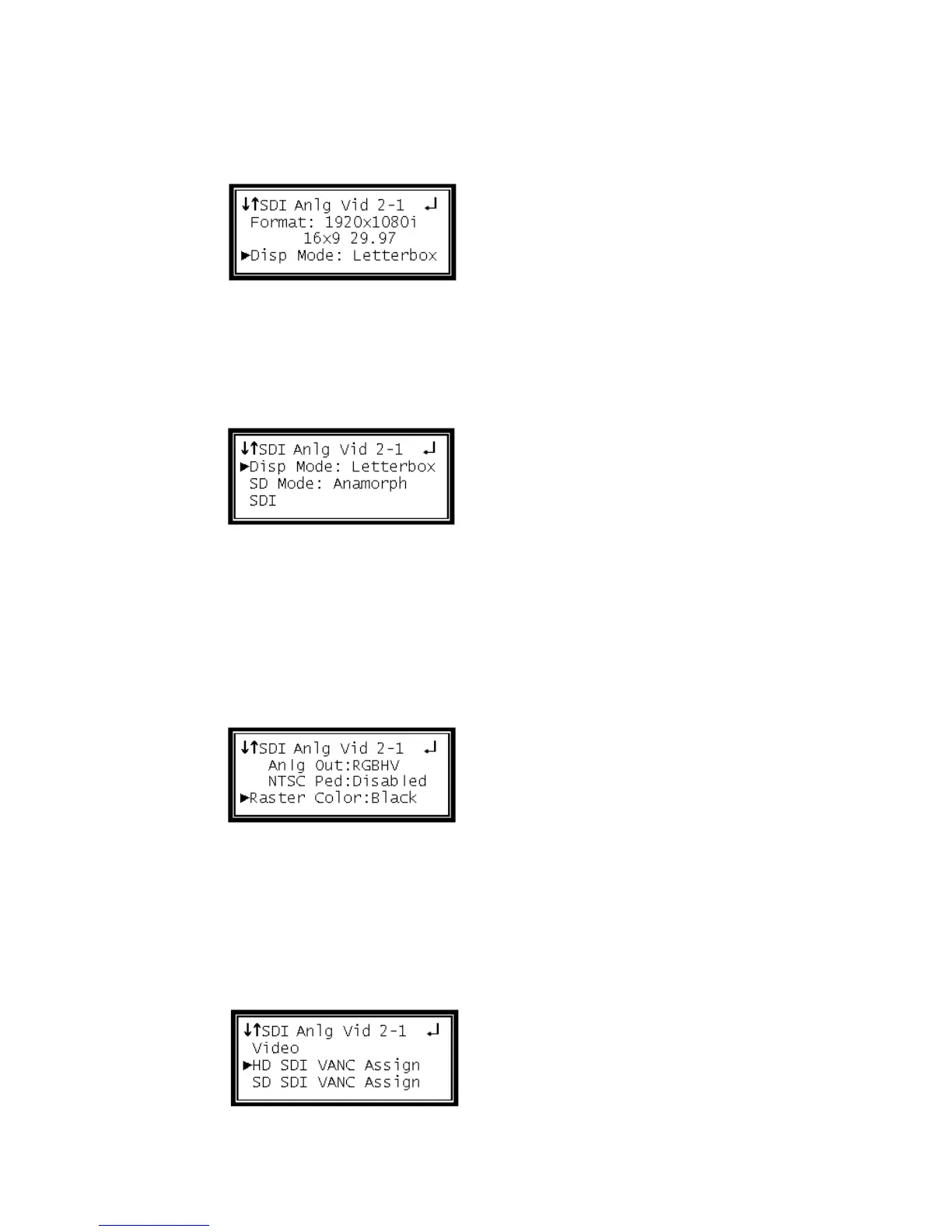

Display Mode
1 Use the Up and Down buttons to move the cursor to "Disp Mode," then press the
Enter button.
2 Use the Up and Down buttons to select the desired output size ("Letterbox",
"Cropped"), then press the Enter button to save the selection.
SD Mode
1 Use the Up and Down buttons to move the cursor to "SD Mode," then press the
Enter button.
2 Use the Up and Down buttons to select the desired output size ("Letterbox",
"Cropped", "Anamorph"), then press the Enter button to save the selection.
Raster Color
This setting determines the color of the raster that is output by the decoder when
input is lost.
1 Use the Up and Down buttons to move the cursor to "Raster Color," then press
the Enter button.
2 Use the Up and Down buttons to select the desired raster color ("Black", "White",
"Yellow", "Cyan", "Green", "Magenta", "Red", "Blue"), then press the Enter button
to save the selection.
HD SDI VANC Embedding
1 Use the Up and Down buttons to move the cursor to "HD SDI VANC Assign,"
then press the Enter button to view the Status screen.
