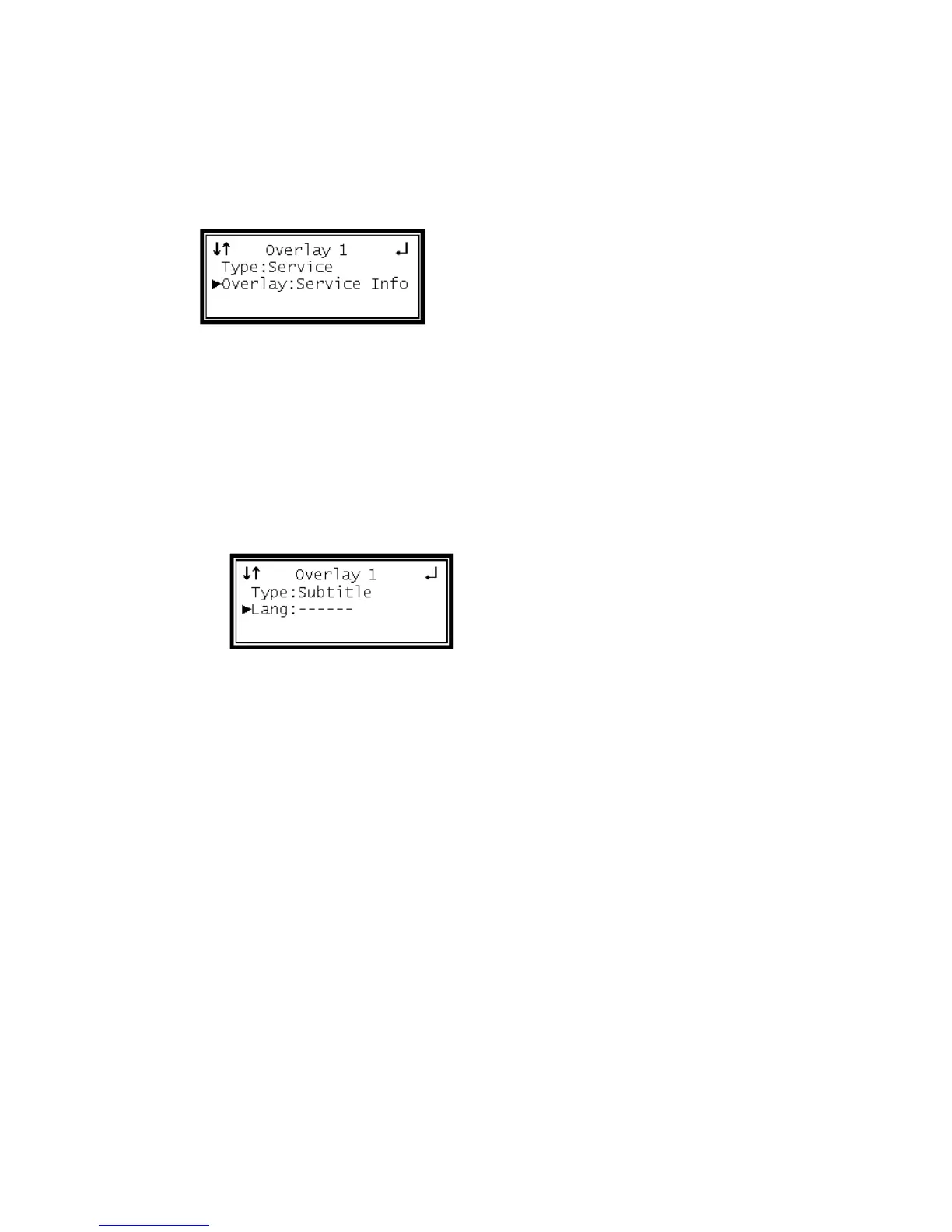

Overlay (Service)
Note: This option only displays the Service Info.
Overlay (Subtitle)
This overlays the DVB Subtitles. The subtitle is selected by choosing the language to
display. Only the available languages that are present can be selected. When an
input without DVB Subtitles is used, no language can be selected.
Note: This menu changes depending on which overlay is set in "Overlay."
1 Use the Up and Down buttons to move the cursor to "Lang," then press the Enter
button.
2 Use the Up and Down buttons to select the language from those that are present,
then press the Enter button to save the selection.
Genlock Offset
The Video output (1 RGBHV/YPbPr, 1 Composite) option card can be Genlocked to
a standard "black and burst" signal applied to the Genlock input on the back panel.
The frame rate of the "black and burst" signal must be the same as the frame rate of
the video output. The "Genlock Reference," under the Menu button, must be set to
the type of Genlock signal being used as well. If the Genlock input source is lost, the
red "Error" LED will illuminate on the front panel, a description of the error will be
shown in the "Active Errors" menu under the Menu button, and an entry will be
logged in the event log. The video will restore but will not be Genlocked until the
Genlock signal is restored.
Note: When the "Genlock Reference" is set to an SD source of NTSC or PAL, the
"Genlock Offset" includes a "Color Ref" setting.
