Cisco D9887B User Manual

Chapter 4 Using the Front Panel to Configure the D9887B HDTV Modular Receiver
52 78-4043743-01 Rev A

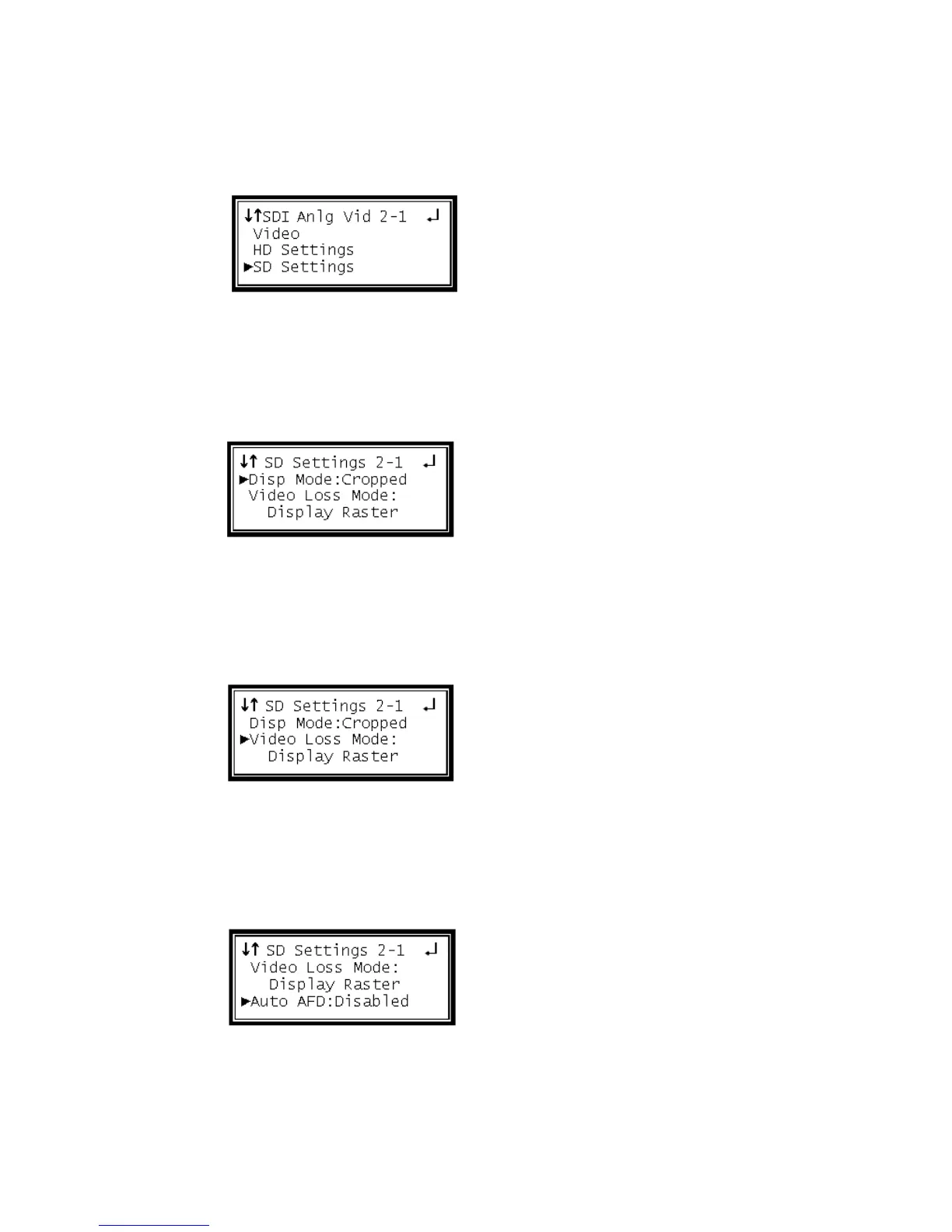

SD Settings
1 Use the Up and Down buttons to move the cursor to "SD Settings," then press
the Enter button to display the Status screen for the SD video output settings.
2 Press the Enter button again to display the Edit screen for the SD video output
settings.
Display Mode
1 Use the Up and Down buttons to move the cursor to "Disp Mode," then press the
Enter button.
2 Use the Up and Down buttons to select the desired output size ("Letterbox",
"Anamorph", or "Cropped"), then press the Enter button to save the selection.
Video Loss Mode
1 Use the Up and Down buttons to move the cursor to "Video Loss Mode," then
press the Enter button.
2 Use the Up and Down buttons to choose between ("Display Raster", "Disable
Output"), then press the Enter button to save the selection.
Auto AFD
1 Use the Up and Down buttons to move the cursor to "Auto AFD," then press the
Enter button.
2 Use the Up and Down buttons to enable or disable AFD, then press the Enter
button to save the selection.
