Front Panel Display Layout

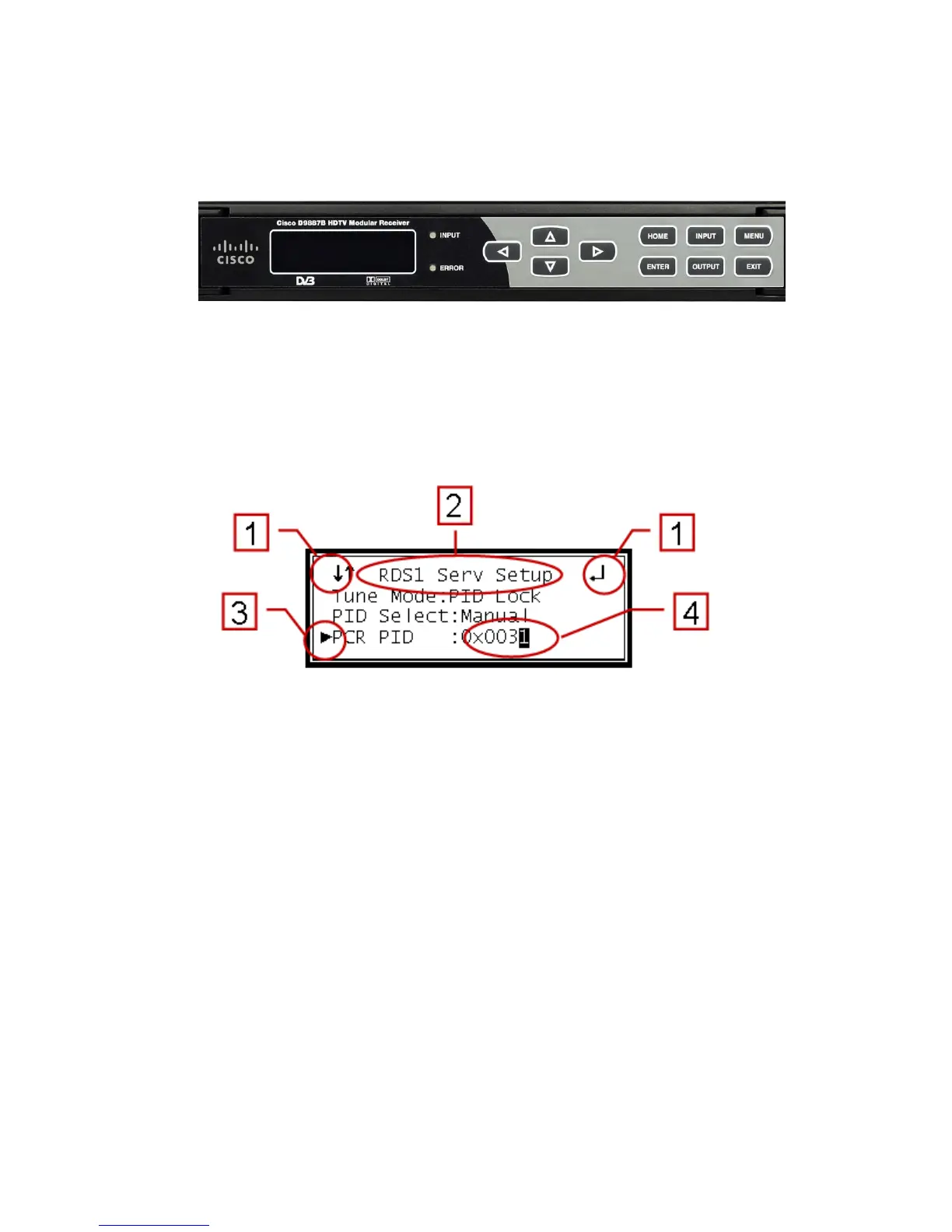

The following figure shows a typical screen on the front panel. Several important
features have been circled and noted below. These features are common to all
screens and assist when navigating, viewing, and editing unit information. The
Home button will return the user to the home level while in any screen. To edit a
selected parameter, press the Enter button. Once a parameter has been changed,
press the Enter button again in order for the change to take effect on the unit. Press
the Exit button to leave the edit mode without changes taking effect.
1 Icons indicate which control buttons are currently valid for entry.
2 Screen title.
3 Cursor shows which line is active.
4 When editing, active character or item is highlighted.
Front Panel Indicators
The D9887B receiver has four internal error parameters: INPUT, DECODER, FAN,
and TEMPERATURE. These parameters can be monitored locally or remotely.
Locally, the unit’s status can be checked by visually looking at the INPUT LED and
the ERROR LED on the front panel, then use the "Error List" under the Menu button
to pinpoint the error. Remotely, the unit’s status can be checked by using the web
client and looking at the status icons on the top of the main window. To see a
detailed list of errors, click on the Unit tab from the web client.
