Auto Mode
This mode should only be used if no PID information is known about the stream.
Auto Program
Note: This menu is only available if the "Tune Mode" is set to "Auto."

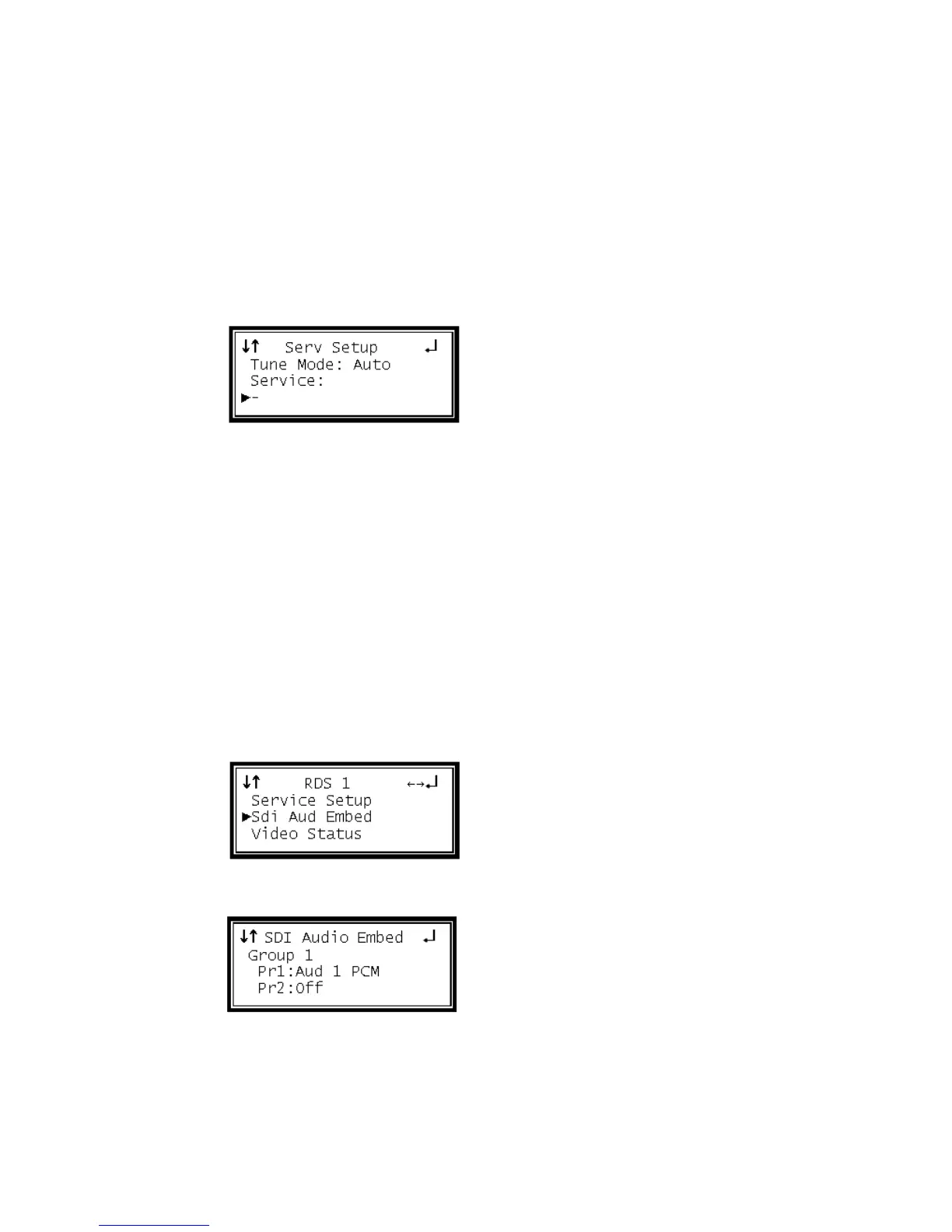

1 Use the Up and Down buttons to move the cursor to "Service," then press the
Enter button.
2 Use the Up and Down buttons to select the desired Service number in the
stream, then press the Enter button to save the selection.
SDI Audio Embedding
SDI Audio Embedding places decoded or pass through audio in the video horizontal
space in one of 4 available locations. The 8 locations are Group 1 – pair 1 and pair 2,
Group 2 pair 1 and 2, Group 3 pair 1 and 2, and Group 4 pair 1 and 2. To setup the
assignment audio to one of the SDI audio embedding locations, use the following
steps:
1 Start out at the home screen (where it shows the TS bit rate).
2 Press the Left button.
3 Use the Up and Down buttons to move the cursor to "Sdi Aud Embed," then
press the Enter button.
4 The current settings are displayed. Press the Enter button again to edit the
settings.
