Raster Color

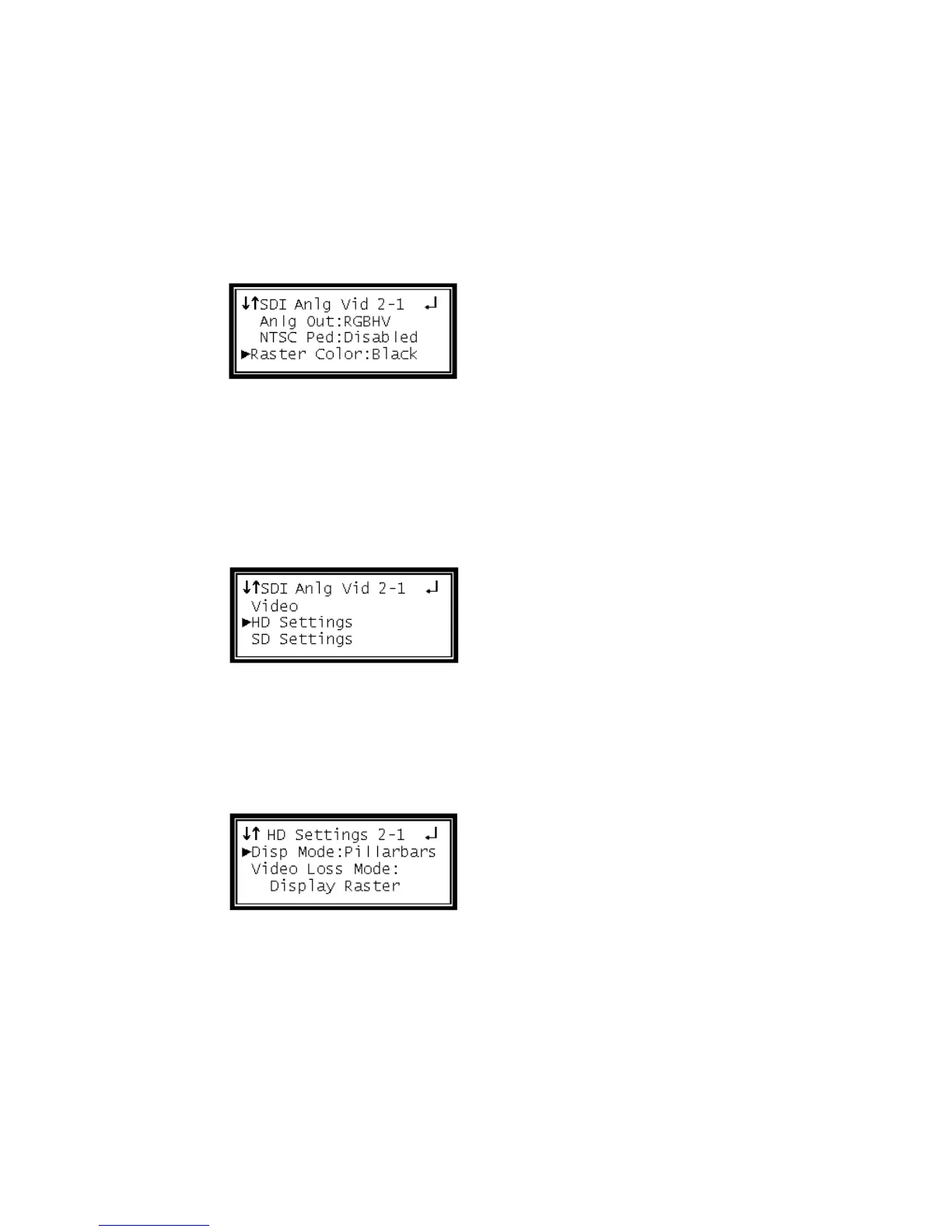

This setting determines the color of the raster that is output by the decoder when
input is lost.
1 Use the Up and Down buttons to move the cursor to "Raster Color," then press
the Enter button.
2 Use the Up and Down buttons to select the desired raster color ("Black", "White",
"Yellow", "Cyan", "Green", "Magenta", "Red", "Blue"), then press the Enter button
to save the selection.
HD Settings
1 Use the Up and Down buttons to move the cursor to "HD Settings," then press
the Enter button to display the Status screen for the HD video output settings.
2 Press the Enter button again to display the Edit screen for the HD video output
settings.
Display Mode
1 Use the Up and Down buttons to move the cursor to "Disp Mode," then press the
Enter button.
2 Use the Up and Down buttons to select the desired output size ("Pillarbars",
"Cropped"), then press the Enter button to save the selection.
