Cisco D9887B User Manual

Chapter 4 Using the Front Panel to Configure the D9887B HDTV Modular Receiver
50 78-4043743-01 Rev A

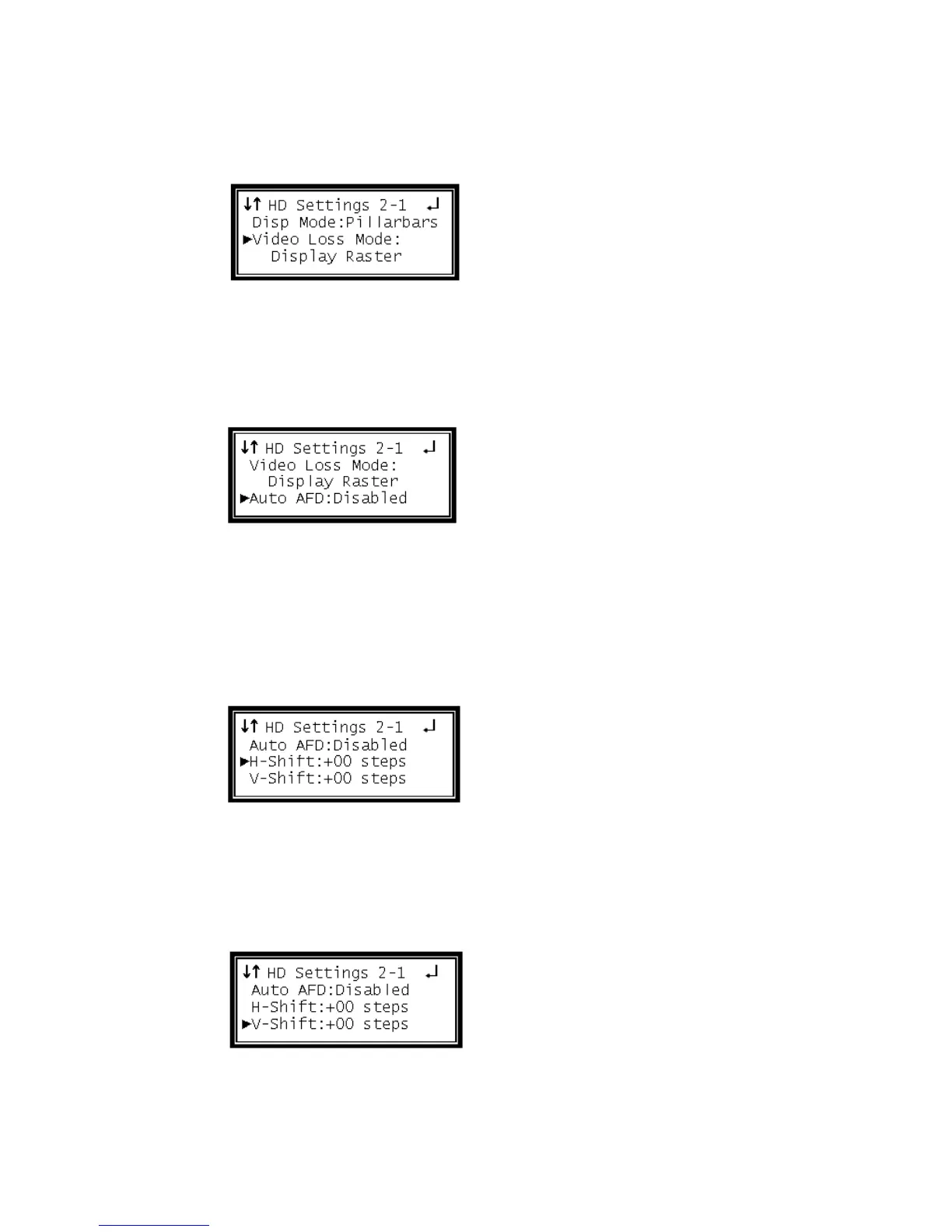

Video Loss Mode
1 Use the Up and Down buttons to move the cursor to "Video Loss Mode," then
press the Enter button.
2 Use the Up and Down buttons to choose between ("Display Raster", "Disable
Output"), then press the Enter button to save the selection.
Auto AFD
1 Use the Up and Down buttons to move the cursor to "Auto AFD," then press the
Enter button.
2 Use the Up and Down buttons to set "Enabled" or "Disabled," then press the
Enter button to save the selection.
Video Shift
Video Shift provides a horizontal and vertical shift of the video output.
1 Use the Up and Down buttons to move the cursor to "H-shift," then press the
Enter button.
2 Use the Left and Right buttons to select the column to edit and use the Up and
Down buttons to change the horizontal step (-50 – +50 steps, where the minus
direction moves the video down), then press the Enter button to save the
selection.
3 Use the Up and Down buttons to move the cursor to "V-shift," then press the
Enter button.
