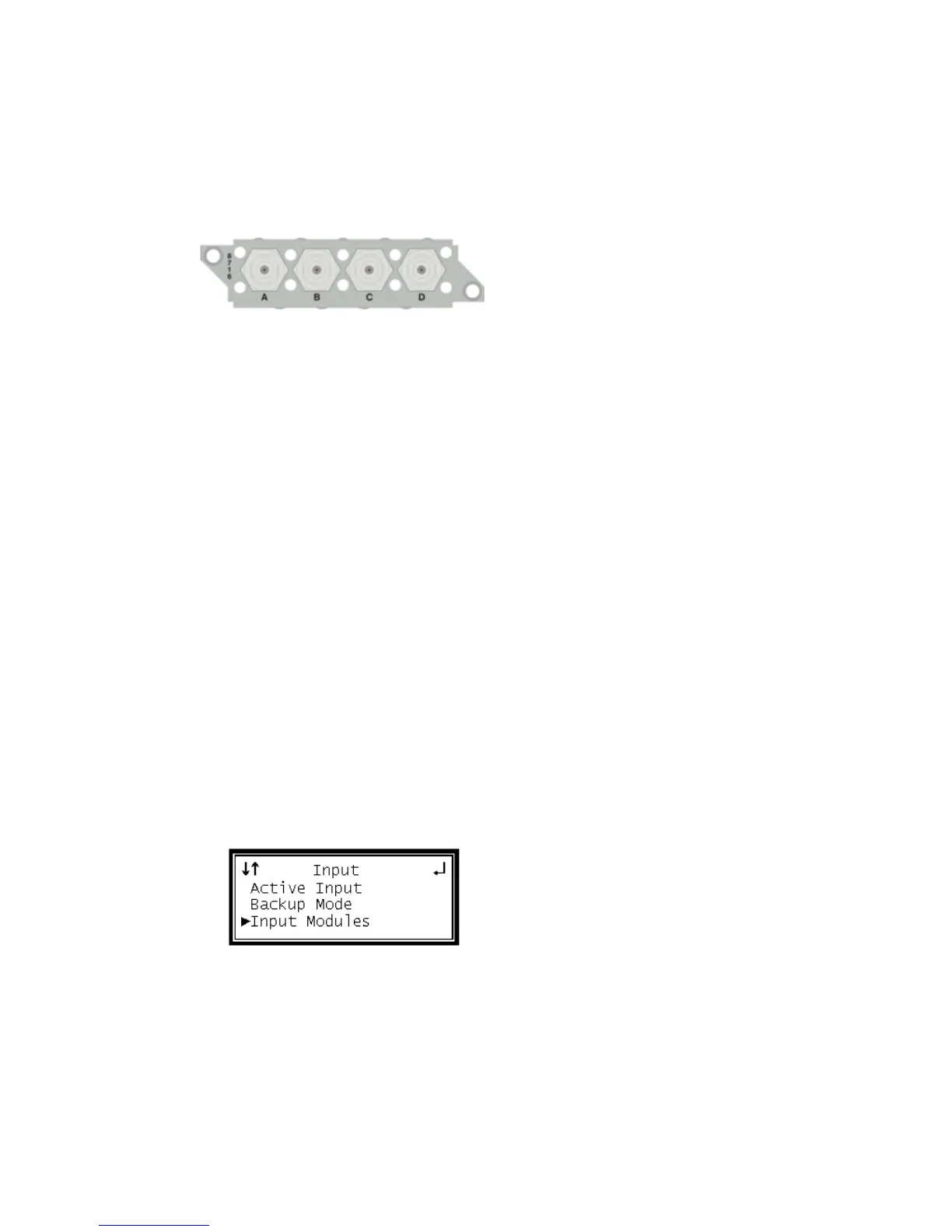

Quad Input DVB-S/DVB-S2 Receiver with LNB Power Option
78-4043743-01 Rev A 85
Quad Input DVB-S/DVB-S2 Receiver with LNB
Power Option
General Information
Install Location: Any slot except 1-1 or 2-1.
I/O: (2) 75Ω Female F Connectors
Supported Formats: DVB-S/DVB-S2
Description: This input provides a satellite L-band (950 MHz – 2150 MHz) signal for
demodulation of KU-band or C-band DVB-S QPSK signals or DVB-S2 QPSK/8PSK
signals. The symbol rate ranges from 1 MSym/s to 45 MSym/s for both DVB-S and
DVB-S2. This card provides LNB power and 22 kHz control tone to the active input.
This card has advanced feature options of multistream input, support for VCM, and
support for 16APSK and 32APSK modulation. The "Input" LED will only illuminate
if the card detects frequency, symbol rate, FEC lock (Carrier Lock), and TS sync
(Sync Lock). The card provides A, B, C and D inputs, which may be independently
configured, but only one may be active at a time.
To Edit the Option Card Input Settings
To edit this input card, use the following steps:
1 Press the Input button.
2 Use the Up and Down buttons to select "Input Modules," and press the Enter
button.
