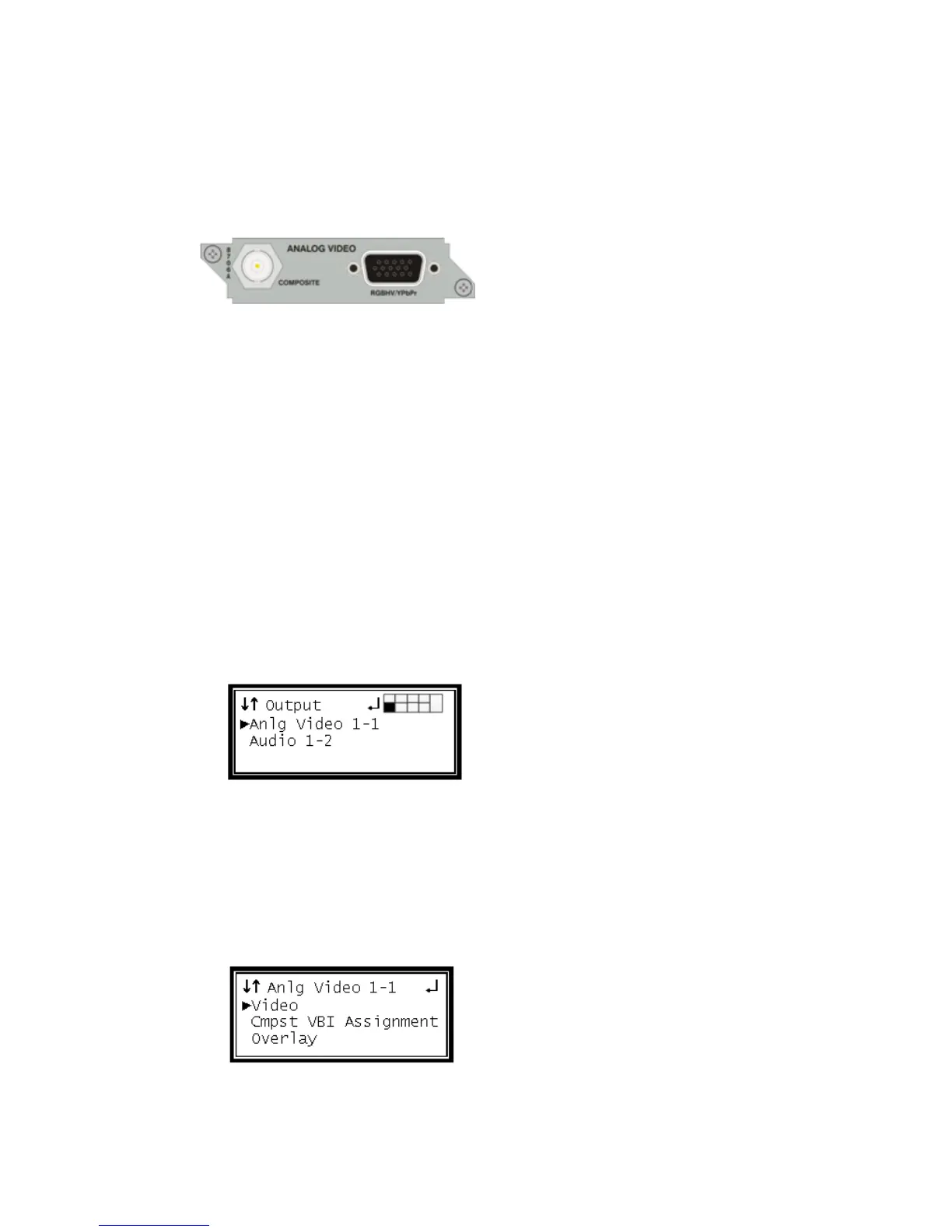

Video Output (1 RGBHV/YPbPr, 1 Composite)
Option
General Information
Install Location: 1-1 or (2-1 only on Configuration 2 units)
I/O: (1) 75Ω Female BNC NTSC/PAL Composite output, (1) 15-pin D-sub Female
analog output
Supported Formats: NTSC/PAL Composite, YPbPr, RGBHV
Description: Analog only, video output card that can output either high definition
or standard definition formats. There are two outputs on the card. One BNC for
composite and one 15-pin D-sub for composite.
Output Control
1 Press the Output button.
Note: For Configuration 2 units, select RDS1 or RDS2, then press Enter.
2 Use the Up and Down buttons to move the cursor to the "Anlg Video" card of the
specific slot (e.g. 1-1), then press the Enter button. Notice the location diagram in
the upper right corner of the screen changes as the cursor moves by each card.
Video Settings
1 Use the Up and Down buttons to move the cursor to "Video," then press the
Enter button to display the Video status screen for the video output card.
2 Press the Enter button again to display the Edit screen for the video output card.
