Quad Input DVB-S/DVB-S2 Receiver with LNB Power Option
78-4043743-01 Rev A 89
LNB Power
LNB power is configurable separately for each Source input, but is only supplied to
the active source.

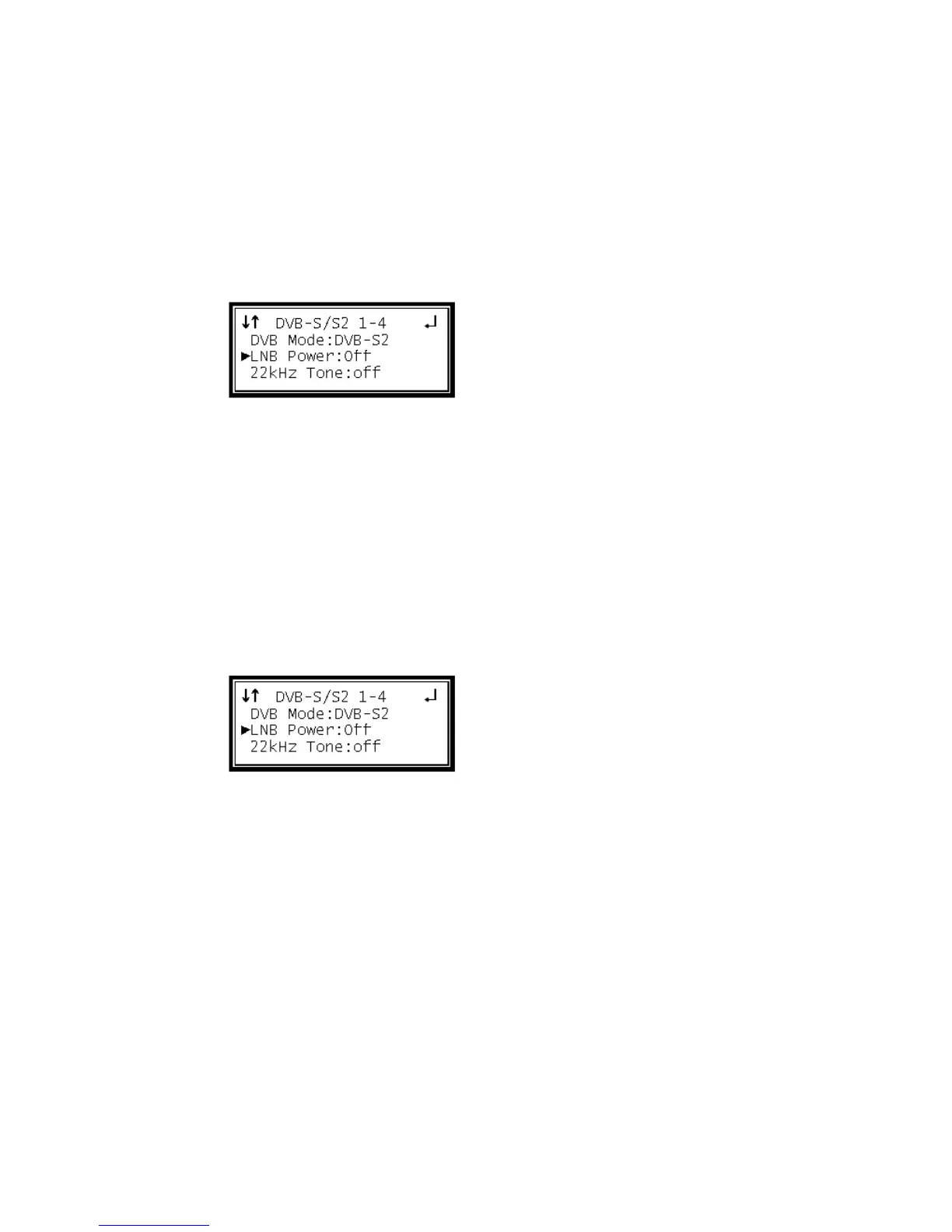

1 Use the Up and Down buttons to move the cursor to "LNB Power," then press
the Enter button.
2 Use the Up and Down buttons to select "Off", "13VDC", "14VDC", "18VDC",
"19VDC", then press the Enter button to save the selection.
22 kHz Tone
22 kHz Tone is configurable separately for each Source input, but is only supplied to
the active source. The 22 kHz Control Tone setting is either on or off.
Note: The 22 kHz Tone is only sent if the LNB power is supplied and the LNB Power
is not set to "off."
1 Use the Up and Down buttons to move the cursor to "22 kHz Tone," then press
the Enter button.
2 Use the Up and Down buttons to select "Off", "13VDC", "14VDC", "18VDC",
"19VDC", then press the Enter button to save the selection.
Tuning Frequency
The DVB-S/S2 card tunes by the L-band frequency rather than the transponder
frequency or local oscillator value. The L-band frequency is the difference between
the downlink transponder frequency "Sat Freq" and the LNB local oscillator
frequency "LO Offset." The IRD will calculate the actual frequency in which the card
tunes; saving the user time and possible miscalculation errors.
