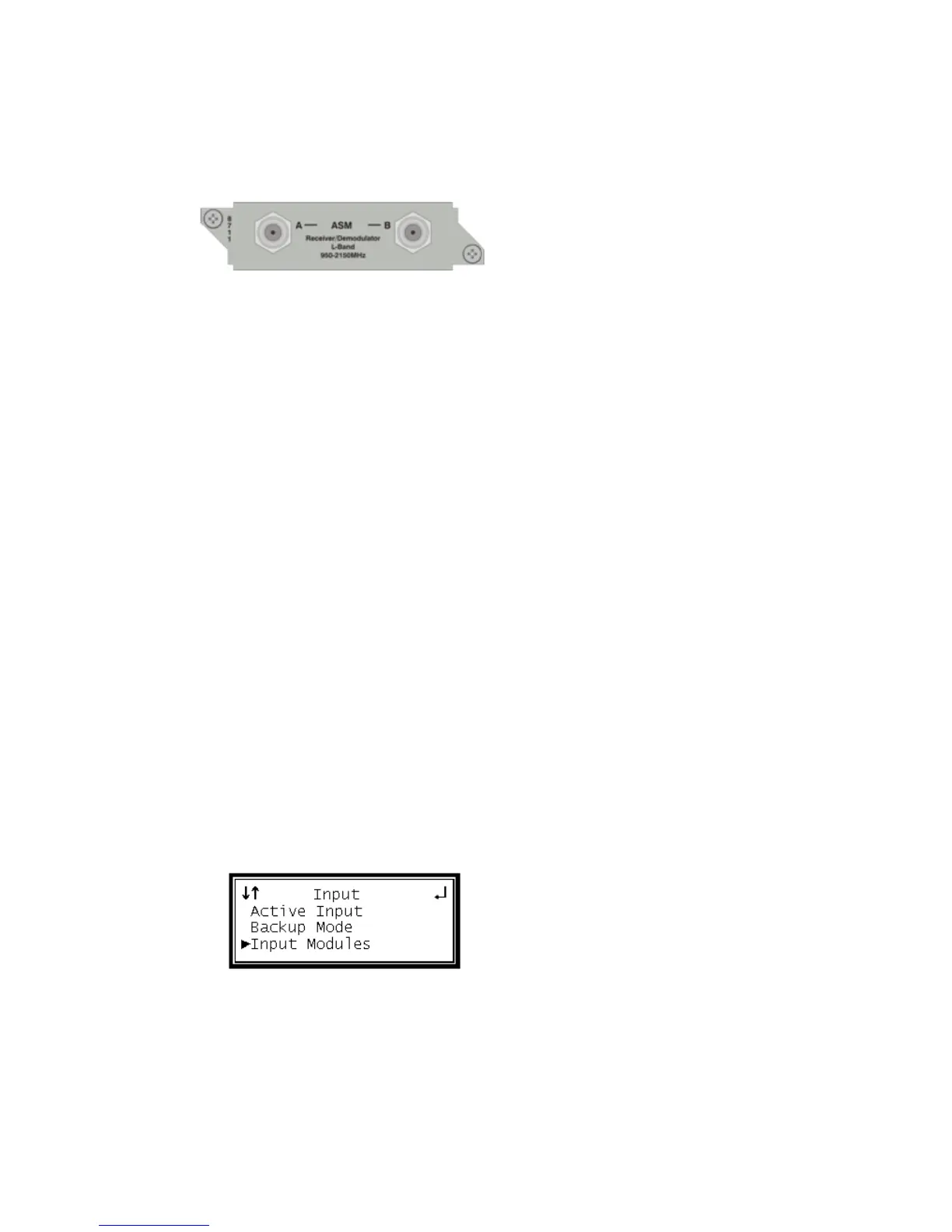

Dual Input ASM Receiver Option
78-4043743-01 Rev A 67
Dual Input ASM Receiver Option
General Information
Install Location: Any slot except 1-1 or 2-1.
I/O: (2) 75Ω Female F Connectors
Supported Formats: DVB-S/DVB-S2
Description: This card will input a satellite L-band (950 MHz – 2150 MHz) signal for
demodulation of KU-band, C-band, or X-band DVB-QPSK, 8PSK, or Adv-QPSK
signals. All these modes are available using Turbo Coded forward error correction.
The DVB-QPSK mode also supports legacy DVB FEC. The symbol rate ranges from
0.256 MSym/s to 30 MSym/s for all modulation types. This card does not provide
any power to the dish LNB. The "Input" LED will only illuminate if the card detects
frequency, symbol rate, FEC lock (Carrier Lock), and TS sync (Sync Lock). The card
provides A and B inputs, which may be independently configured, but only one may
be active at a time.
Note: This card does not provide power to the dish LNB.
To Edit the Option Card Input Settings
To edit this input card, use the following steps:
1 Press the Input button.
Note: For Configuration 2 units, select RDS1 or RDS2, then press Enter.
2 Use the Up and Down buttons to select "Input Modules," and press the Enter
button.
