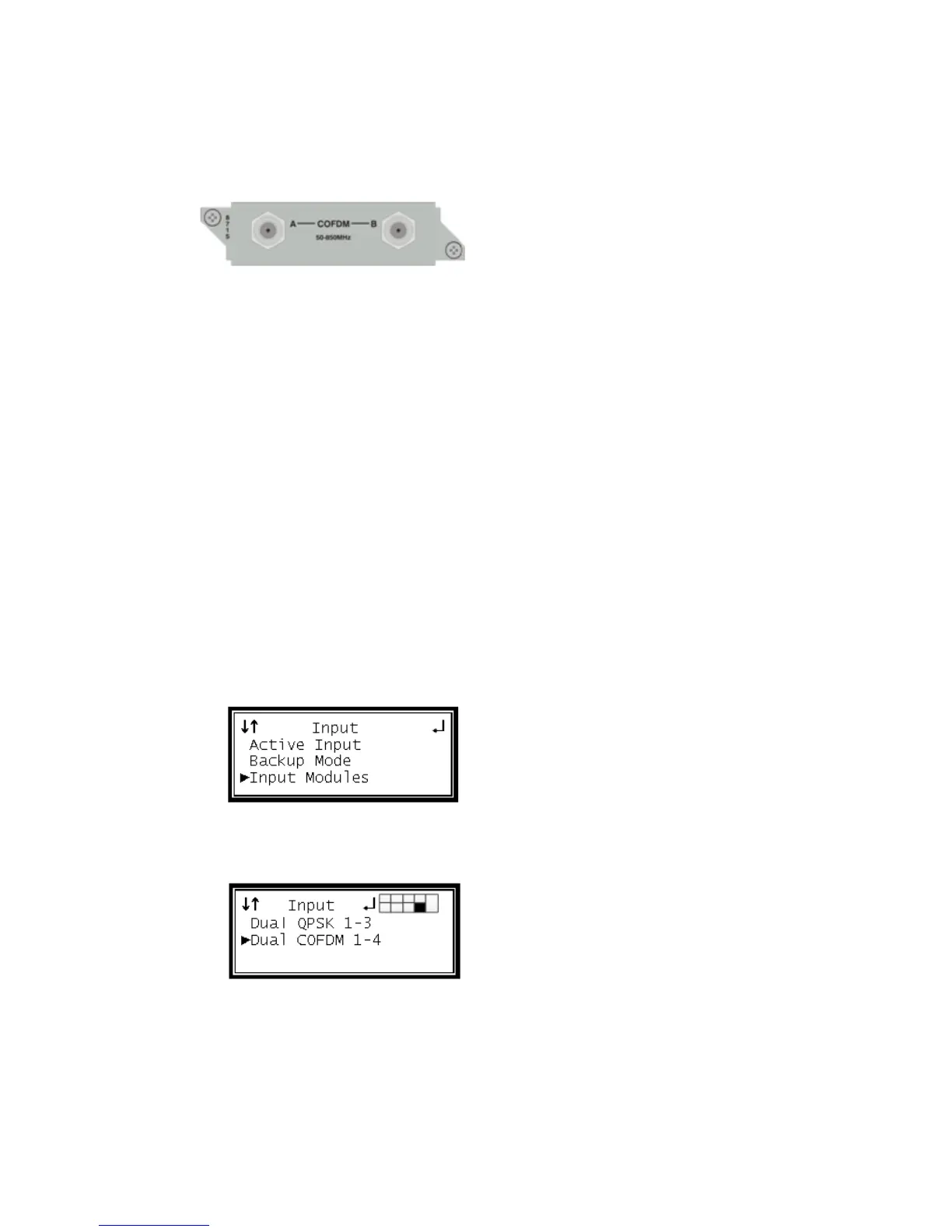

Dual Input COFDM Receiver Option
General Information
Install Location: Any slot except 1-1 or 2-1.
I/O: (2) 75Ω Female F Connectors
Supported Formats: COFDM
Description: This card will allow the D9887B receiver to receive a COFDM signal for
use in electronic news gathering (U.S.) or any COFDM Terrestrial Broadcast (DVB-T,
European) applications. Only one input may be selected at a time.
To Edit the Option Card Input Settings
To edit this input card, use the following steps:
1 Press the Input button.
Note: For Configuration 2 units, select RDS1 or RDS2, then press Enter.
2 Use the Up and Down buttons to select "Input Modules," and press the Enter
button.
3 Use the Up and Down buttons to move the cursor to the "Dual COFDM" card of
the specific slot (e.g. 1-4). Notice the location diagram in the upper right corner of
the screen changes as the cursor moves by each card.
4 Press the Enter button once to display the Status screen for the COFDM card.
5 Press the Enter button again to display the Edit screen for the COFDM card.
