Dolby E 1
Note: This option is only available if there is an Audio Output (Dolby E, AES Digital,
Analog) option audio output card installed.

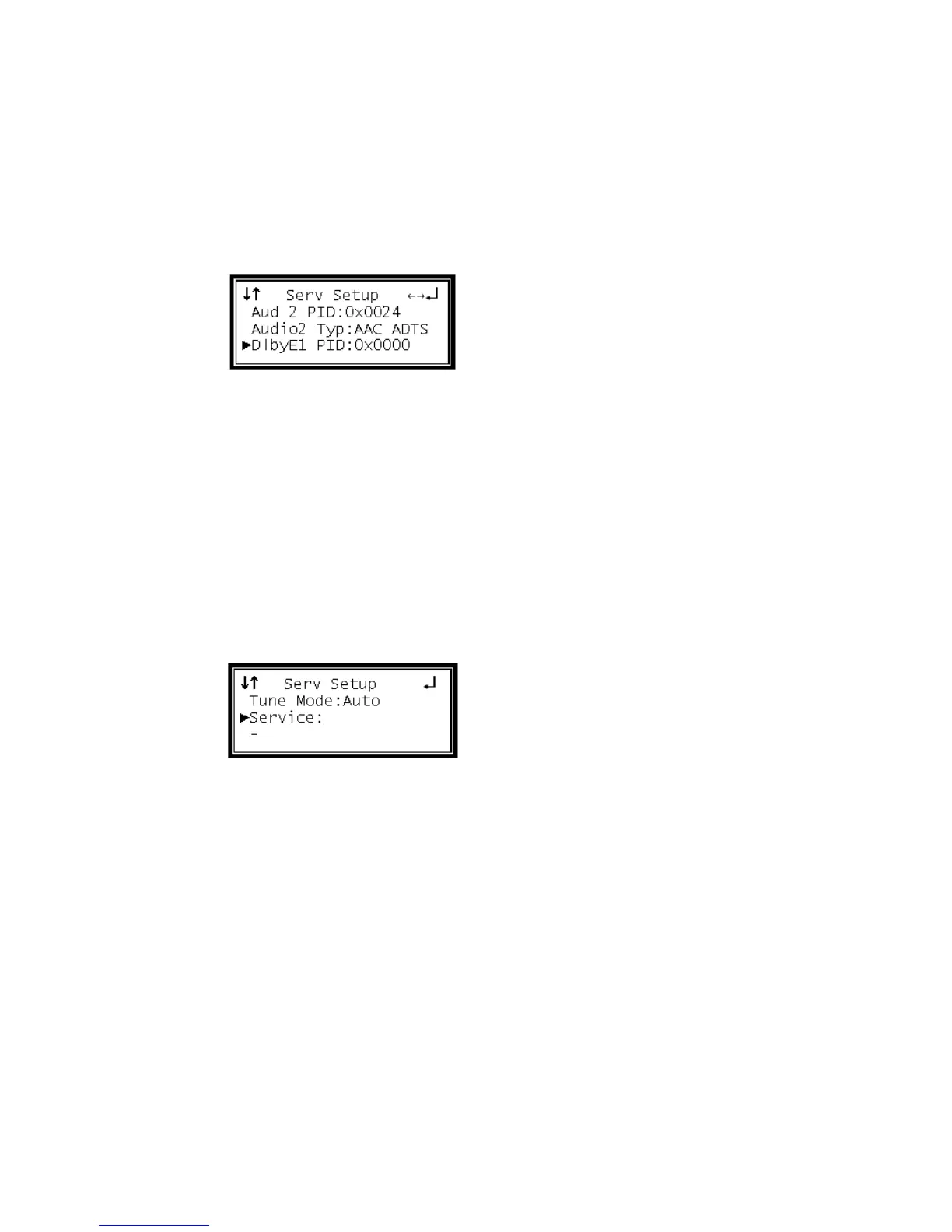

1 Use the Up and Down buttons to move the cursor to "DlbyE1 PID," then press
the Enter button.
2 Use the Left and Right buttons to select the column to edit and use the Up and
Down buttons to set the Dolby E1 PID, then press the Enter button to save the
selection.
Auto Mode
This mode should only be used if no PID information is known about the stream.
Auto Program
Note: This menu is only available if the "Tune Mode" is set to "Auto."
1 Use the Up and Down buttons to move the cursor to "Auto," then press the Enter
button.
2 Use the Up and Down buttons to select the desired Service number in the
stream, then press the Enter button to save the selection.
SDI Audio Embedding
SDI Audio Embedding places decoded or pass through audio in the video horizontal
space in one of 4 available locations. The 4 locations are Group 1 – pair 1 and pair 2,
and Group 2 pair 1 and 2. If there is an Audio Output (Dolby E, AES Digital, Analog)
option card installed, then Dolby E audio can be embedded. To setup the assignment
audio to one of the SDI audio embedding locations, use the following steps:
1 Start out at the home screen (where it shows the TS bit rate).
2 Press the Left button.
