Video Output (2 HD/SD-SDI, 1 RGBHV/YPbPr/Comp) Option
78-4043743-01 Rev A 77

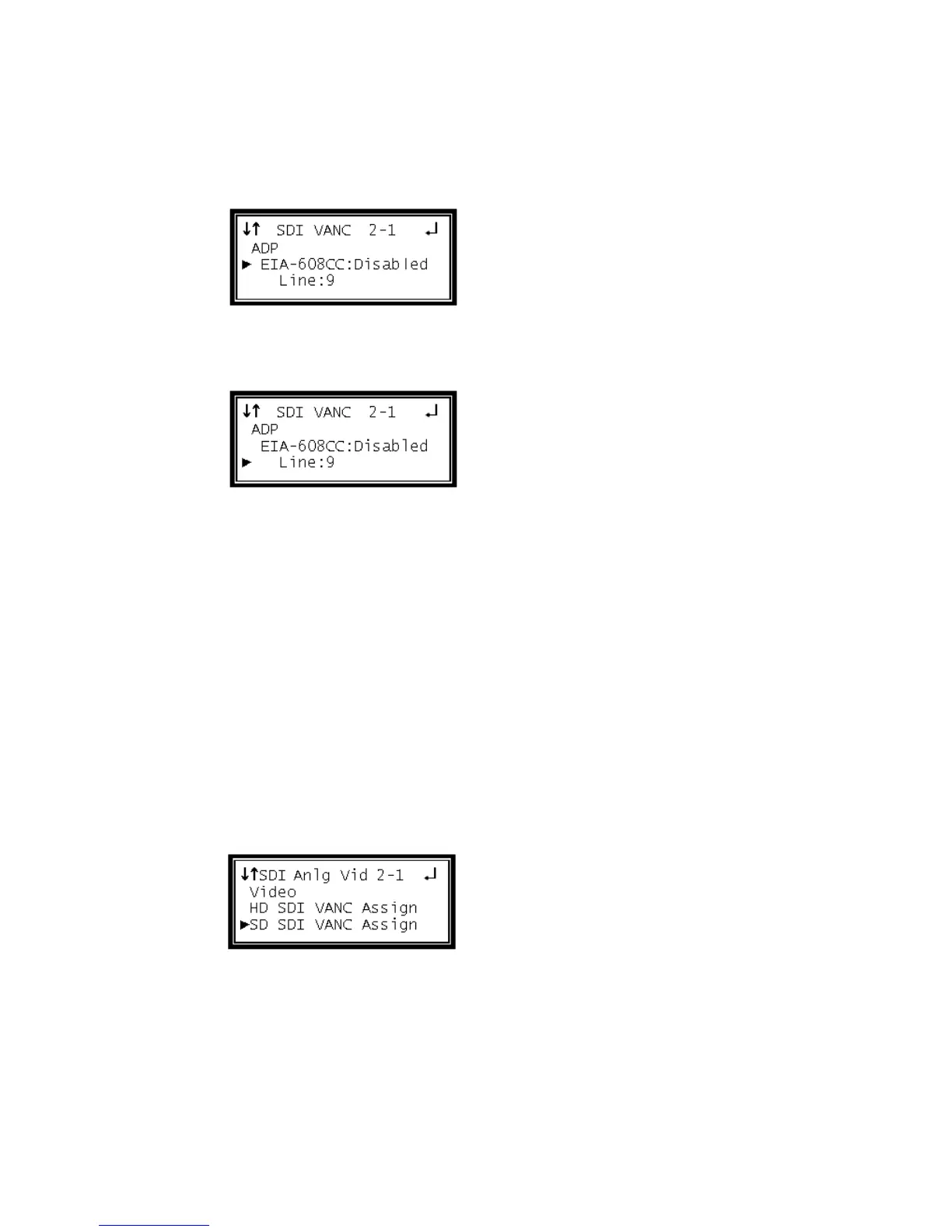

2 Press the Enter button once more to display the Edit menu.
3 Use the Up and Down buttons to move the cursor to "EIA-608CC," then press the
Enter button.
4 Use the Up and Down buttons to choose "Enabled" or "Disabled," then press the
Enter button to save the selection.
5 Use the Up and Down buttons to select "Line," and press the Enter button.
6 Use the Up and Down buttons to change the line number (9 – 15) in which the
ancillary data will be located.
7 Press the Enter button once more to display the Edit menu.
8 Use the Up and Down buttons to move the cursor to "EIA-708CC," then press the
Enter button.
9 Use the Up and Down buttons to choose "Enabled" or "Disabled," then press the
Enter button to save the selection.
10 Use the Up and Down buttons to select "Line," and press the Enter button.
11 Use the Up and Down buttons to change the line number (9 – 15) in which the
ancillary data will be located.
SD SDI VANC Embedding
1 Use the Up and Down buttons to move the cursor to "SD SDI VANC Assign,"
then press the Enter button to view the Status screen.
2 Press the Enter button once more to display the Edit menu.
